Product Description

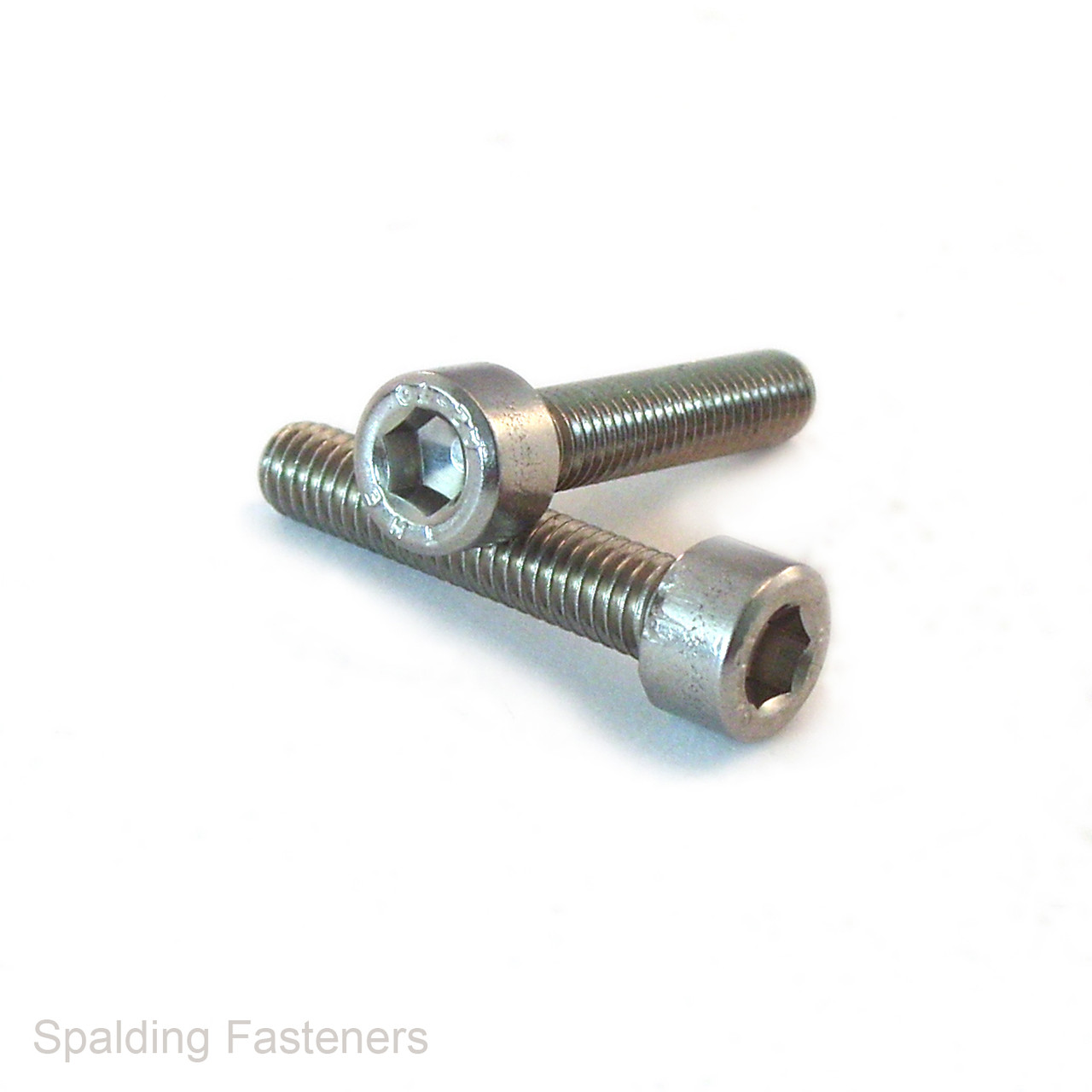

M6 A4-70 Stainless Steel Fully Threaded Socket Cap Screws – DIN 912
M6 socket cap screws manufactured from A4-70 marine grade stainless steel, featuring a fully threaded M6 × 1 metric coarse thread and a 5mm internal hexagon drive. Available in 25mm length, measured from beneath the head to the tip.
The cylindrical socket cap head allows installation with an Allen key or hex bit. A4 stainless steel provides corrosion resistance for outdoor, coastal and marine applications where suitable for the assembly.
Specifications
| Product type | Fully threaded socket cap screw |
|---|---|
| Dimensional standard | DIN 912 |
| Material and property class | A4-70 stainless steel |
| Thread size | M6 |
| Thread pitch | 1.00mm – metric coarse |
| Thread coverage | Fully threaded |
| Length | 25mm |
| Length measurement | Under the head to the tip |
| Head style | Cylindrical socket cap |
| Drive type | Internal hexagon / Allen |
| Allen key size | 5mm |
| Head diameter | 9.78–10.00mm |
| Head height | 5.70–6.00mm |
Key Features
- A4-70 marine grade stainless steel construction.
- Fully threaded M6 × 1 shank.
- DIN 912 socket cap head design.
- 5mm Allen key drive.
- 25mm under-head length.
Typical Applications
- Marine and coastal equipment assemblies.
- Outdoor brackets, fittings and enclosures.
- Machinery assembly and maintenance.
- Components requiring corrosion-resistant M6 socket screws.
Selection and Installation
Use with matching M6 × 1 nuts or tapped holes and select suitable thread engagement for the assembly. Install with a correctly fitting 5mm Allen key or hex bit and tighten to the application's specified torque.
Start the screw by hand. Where appropriate, use a compatible anti-galling lubricant when assembling stainless steel threads.
Pack Sizes and Ordering
Available in packs of 1, 5, 10, 20, 50 and 100 screws. Select the required pack quantity. Supplied as screws only; nuts, washers and tools are not included.
Dimensions are provided as a guide. Please check critical dimensional requirements before ordering.
Standards
- DIN 912 – hexagon socket head cap screws.
- Thread designation – M6 × 1 metric coarse.
- Stainless steel designation – A4-70.
