Product Description

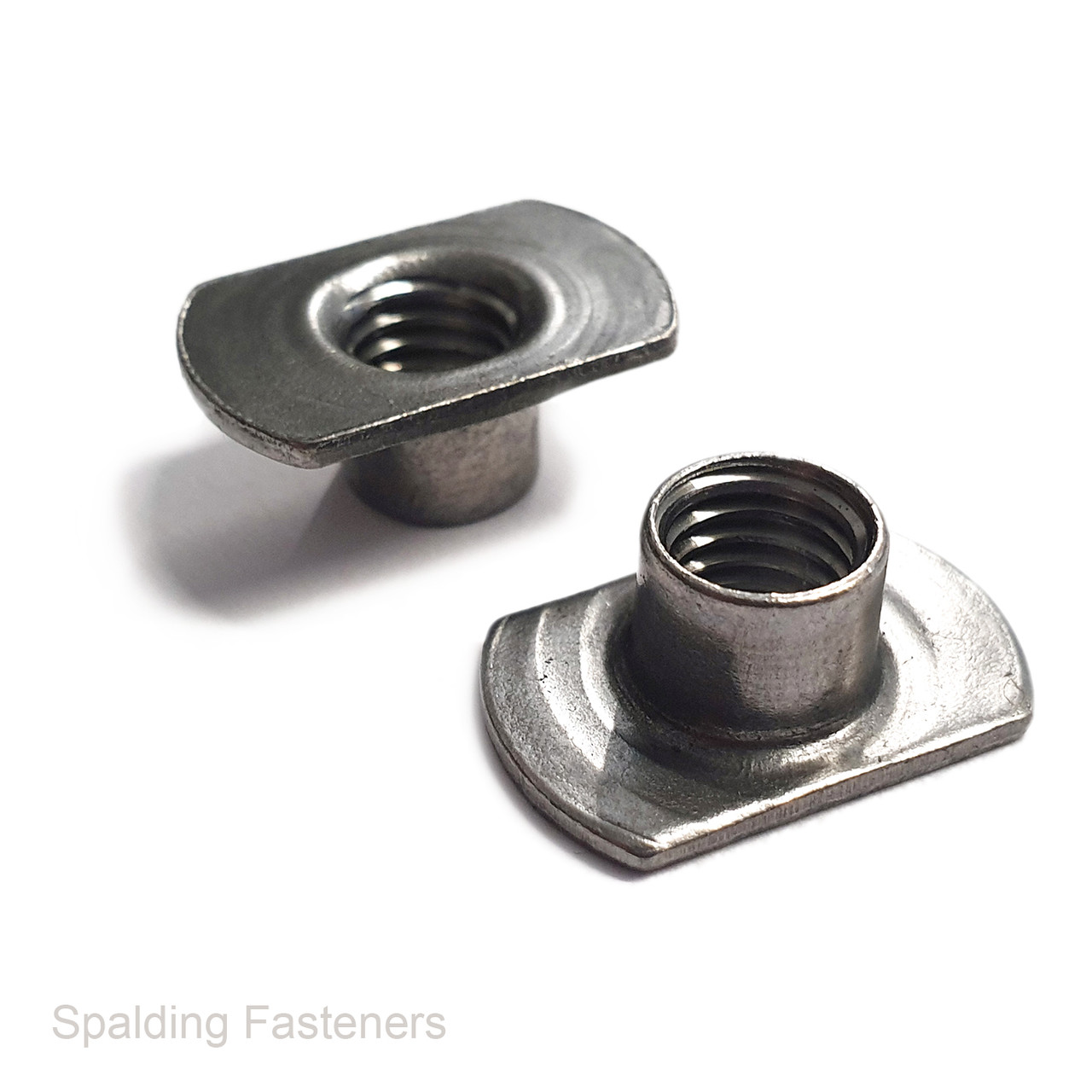

Metric Steel T-Style Weld Nuts – M5, M6, M8 and M10
Carbon steel T-style weld nuts with a smooth slab base flange and self colour, unplated finish. Designed to provide a fixed threaded attachment point when welded to suitable sheet metal or fabricated components.
Specifications
| Product type | T-style / tee weld nut |
|---|---|
| Base style | Smooth slab base flange |
| Material | Carbon steel |
| Finish | Self colour / plain, unplated |
| Thread type | Metric coarse |
| Available sizes | M5, M6, M8 and M10 |
Available Sizes and Dimensions
| Thread Size | Thread Pitch | Listed Length |
|---|---|---|
| M5 | 0.8mm | 19mm |
| M6 | 1.0mm | 19mm |
| M8 | 1.25mm | 22mm |
| M10 | 1.5mm | 26mm |
Dimensions are a guide. Confirm the base dimensions and barrel height before ordering where fit is critical.
Typical Applications
- Sheet metal fabrication and steel cabinets.
- Metal furniture and domestic appliance assemblies.
- Automotive fabrication and light engineering.
Selection and Installation
Match the thread size and pitch to the mating screw or bolt. Position accurately before welding, protect the internal thread from weld spatter and check thread clearance after installation.
Pack Sizes
Available in packs of 5, 10, 20, 50, 100, 250, 500 or 1000. Select the required thread size and quantity from the options above.
Standards
No specific DIN, BS, ISO or ASME manufacturing standard has been verified for this T-style weld nut range.
