Product Description

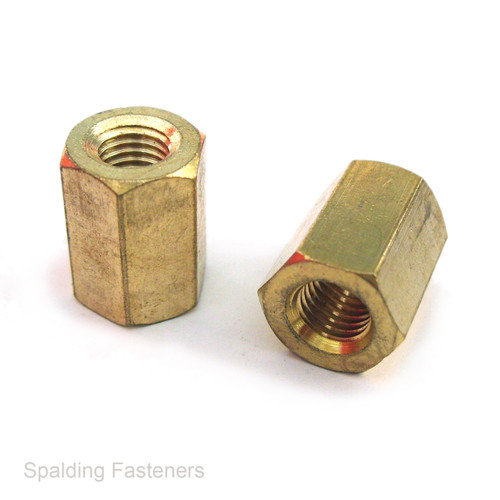

Brass Hexagon Connector Nuts – M6, M8 and M10
Solid brass hexagon connector nuts for joining or extending compatible metric threaded bar and studs. Also known as coupling nuts, extension nuts or long nuts, they feature an extended internally threaded body and external hexagon flats for spanner access.
Specifications
| Product type | Hexagon connector / coupling nut |
|---|---|
| Material | Solid brass |
| Thread type | Metric coarse |
| Body shape | Hexagon |
| Length pattern | 3 x nominal thread diameter |
Available Sizes and Dimensions
| Thread Size | Thread Pitch | Nut Length | Spanner Size Across Flats |
|---|---|---|---|
| M6 | 1.0mm | 18mm | 10mm |
| M8 | 1.25mm | 24mm | 13mm |
| M10 | 1.5mm | 30mm | 17mm |
Key Features
- Solid brass construction.
- Extended body for connecting threaded components.
- Hexagon flats for tightening or holding with a spanner.
- Three metric coarse thread sizes.
Selection and Installation
Match the diameter and pitch of both threaded components. Provide sufficient engagement at each end, ideally with the rod ends meeting near the centre. Confirm that the brass material and connection design suit the required load.
Pack Sizes
Available individually or in packs of 5, 10, 20 or 50. Select the required thread size and quantity from the options above.
Standards and Pattern Reference
3 x diameter hexagon coupling nut pattern, commonly referred to in the industry as DIN 6334. This designation is a recognised pattern reference rather than a formally published DIN standard for coupling nuts.
