Product Description

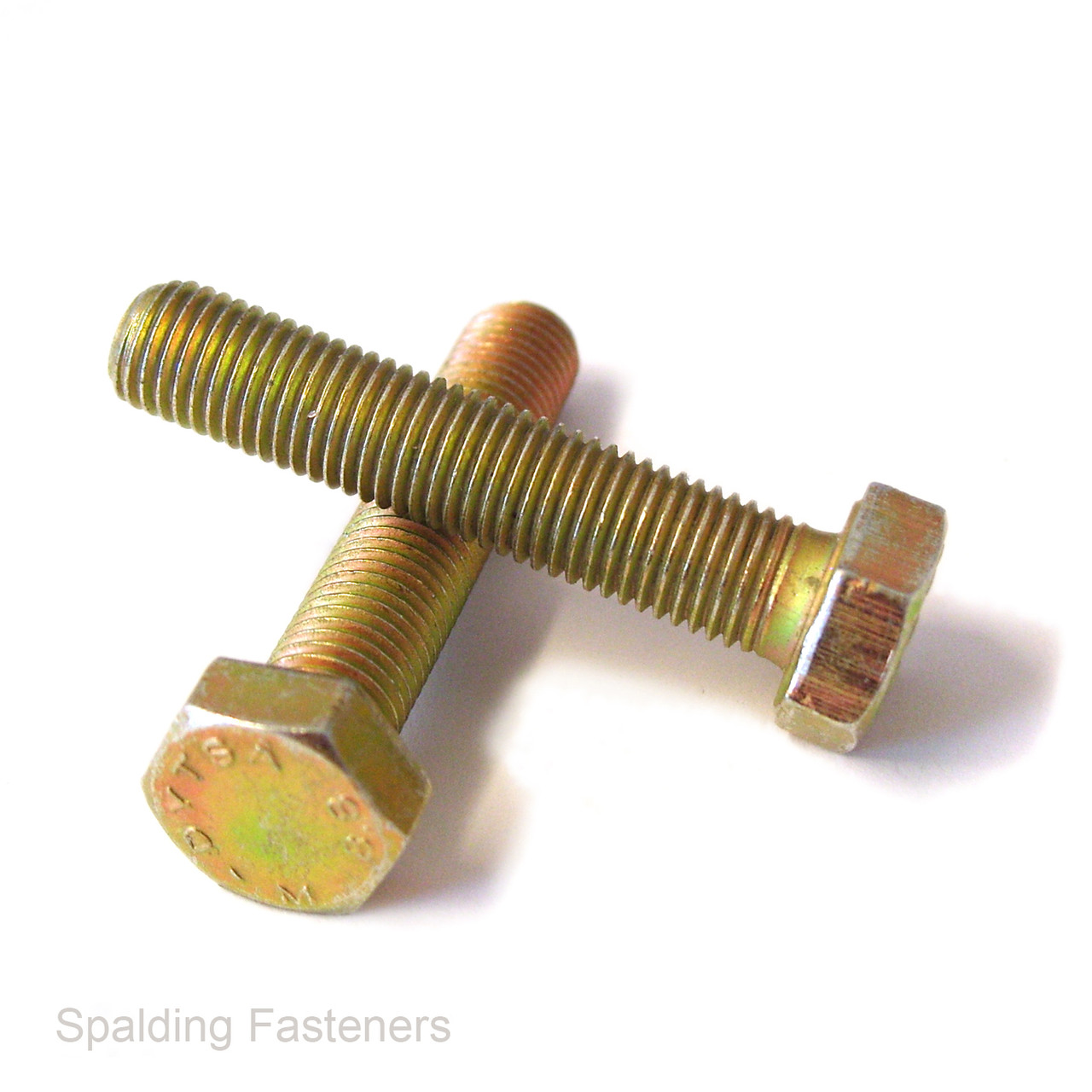

5/8" UNC Grade 8 Yellow Zinc Plated Hex Head Set Screws
5/8"-11 UNC Grade 8 hexagon head set screws manufactured from high tensile steel with a yellow zinc plated finish. These fully threaded imperial fasteners are suitable for machinery assembly, maintenance and repair work requiring a matching UNC coarse thread.
The external hexagon head allows installation using a 15/16" spanner or socket. The fully threaded design provides threaded engagement along the screw length for use with compatible nuts or tapped components.
Specifications
| Product type | Fully threaded hexagon head set screw |
|---|---|
| Nominal thread diameter | 5/8" – 15.875mm |
| Thread type | UNC – Unified National Coarse |
| Threads per inch | 11 TPI |
| Thread direction | Right-hand |
| Material | High tensile steel |
| Strength grade | SAE Grade 8 |
| Finish | Yellow zinc plated |
| Head style | External hexagon |
| Spanner / socket size | 15/16" across flats |
| Thread coverage | Fully threaded |
| Length measurement | From underneath the head to the screw tip |
Available Lengths
| Imperial length | Metric equivalent |
|---|---|
| 1" | 25.40mm |
| 1 1/4" | 31.75mm |
| 1 1/2" | 38.10mm |
| 2" | 50.80mm |
Key Features
- SAE Grade 8 high tensile steel construction.
- 5/8"-11 UNC coarse thread.
- Fully threaded design.
- Yellow zinc plated finish for added corrosion resistance.
- Hexagon head for use with a 15/16" spanner or socket.
- Four available lengths from 1" to 2".
Selection and Installation
Use with matching 5/8"-11 UNC nuts or tapped holes. Select a length that provides adequate thread engagement without bottoming out in a blind hole. Where a nut is required, choose a compatible strength grade suitable for the assembly.
Tighten to the torque specified for the joint, taking the plated finish and lubrication condition into account.
Pack Sizes
Available in packs of 1, 5, 10, 20, 50 and 100. Select the required length and pack quantity from the options.
Standards
- SAE J429 – Grade 8 mechanical property specification.
- ASME B18.2.1 – imperial hexagon head fastener dimensional reference.
- ASME B1.1 – Unified inch thread reference.
