Product Description

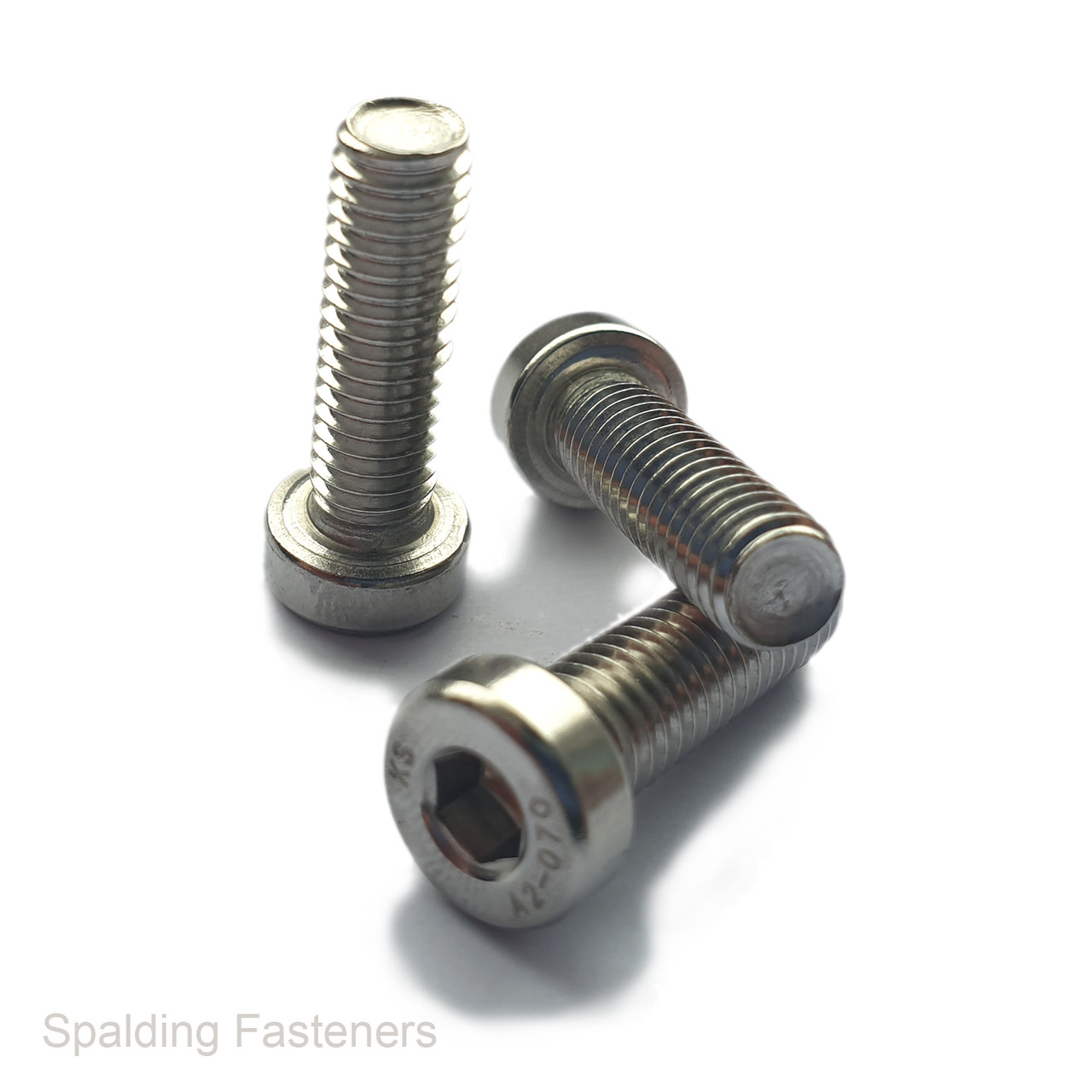

M6 A2 Stainless Steel Low Head Socket Cap Screws – DIN 7984
M6 A2 stainless steel low head socket cap screws to DIN 7984, designed for assemblies where head clearance is limited. The reduced-height cylindrical head provides a compact fastening profile, with a 4mm internal hexagon socket for Allen key installation.
Featuring an M6 × 1.0mm metric coarse thread, these screws are available in six lengths from 10mm to 30mm. A2 stainless steel provides corrosion resistance for general engineering, equipment assembly and maintenance.
Specifications
| Thread size | M6 |
|---|---|
| Thread pitch | 1.0mm – metric coarse |
| Thread direction | Right-hand |
| Material | A2 stainless steel |
| Head style | Low cylindrical socket cap head |
| Dimensional standard | DIN 7984 |
| Head diameter | 9.78–10.00mm |
| Head height | 3.82–4.00mm |
| Drive size | 4mm hexagon socket / Allen key |
| Nominal socket depth | 3.0mm |
| Available lengths | 10mm, 12mm, 16mm, 20mm, 25mm and 30mm |
| Length measurement | From beneath the head to the end of the screw |
Available Lengths
- M6 × 10mm
- M6 × 12mm
- M6 × 16mm
- M6 × 20mm
- M6 × 25mm
- M6 × 30mm
Key Features
- Reduced head height for applications with limited clearance.
- A2 stainless steel construction for corrosion resistance.
- M6 × 1.0mm metric coarse thread.
- Internal hexagon drive accepts a 4mm Allen key.
- DIN 7984 low head dimensions.
Selection and Installation
Choose the length required for the joint, measured from beneath the head. Thread coverage may vary with length; confirm the threaded length if full threading is essential.
Low head screws have reduced head and socket dimensions compared with standard socket cap screws, which can limit tightening torque and load capacity. Select them to suit the application and seat the 4mm Allen key fully before tightening.
Pack Sizes
Available in quantities of 1, 5, 10, 20, 50, 100, 250, 500 or 1000 screws. Select the required length and pack size before ordering.
Standards
- DIN 7984 – low head hexagon socket cap screw dimensions.
- ISO 261 – metric screw thread diameter and pitch series.
