Product Description
BSW Whitworth Thread Repair Insert Kits 3/16"–1/2"

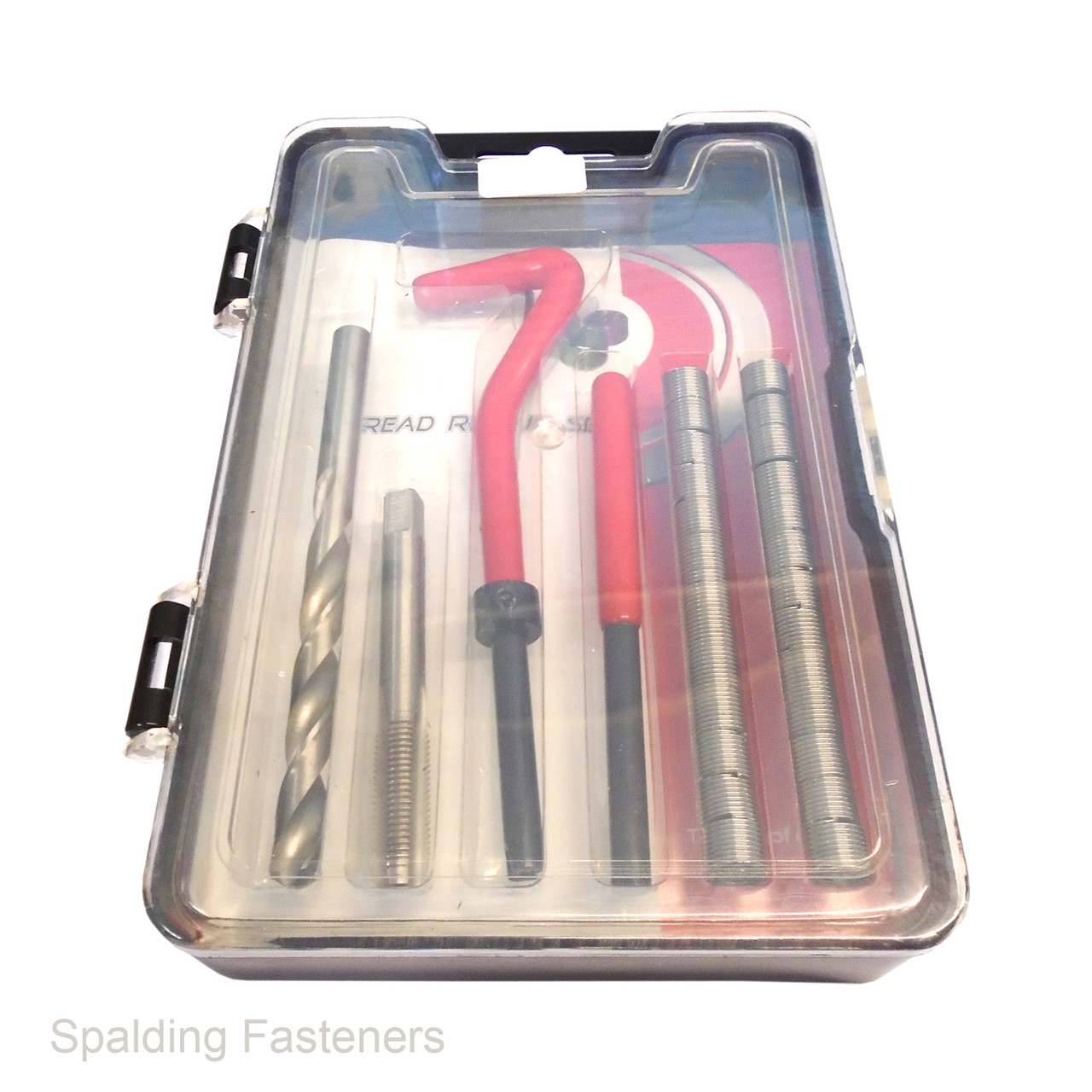

Thread repair kits for restoring damaged or stripped British Standard Whitworth internal threads. Each kit is supplied for the selected thread size, with a drill, repair tap, thread inserts and instructions.
The inserts restore the original nominal BSW thread size so the repaired hole accepts the matching Whitworth bolt or screw. BSW threads have a 55-degree thread angle.
Product Specifications
- Thread system: British Standard Whitworth / BSW
- Thread angle: 55 degrees
- Type: Thread repair insert kit
- Size selection: One thread size per kit
- Included: Drill, repair tap, thread inserts and instructions
- Insert quantity and length: Not specified
Thread Size Options
| BSW Thread Size | Threads Per Inch |
|---|---|
| 3/16" | 24 TPI |
| 1/4" | 20 TPI |
| 5/16" | 18 TPI |
| 3/8" | 16 TPI |
| 7/16" | 14 TPI |
| 1/2" | 12 TPI |
Typical Applications
- Repairing stripped internal Whitworth threads
- Classic machinery and vehicle restoration
- Workshop maintenance and component refurbishment
Installation
Confirm the original thread diameter and TPI before selecting a kit. Following the supplied instructions, drill out the damaged thread, cut the insert thread using the repair tap and install the insert to the specified depth. Remove swarf and check the completed repair before assembly.
Thread Form
British Standard Whitworth, 55-degree profile. Use matching BSW fasteners and check both diameter and pitch.
