Product Description

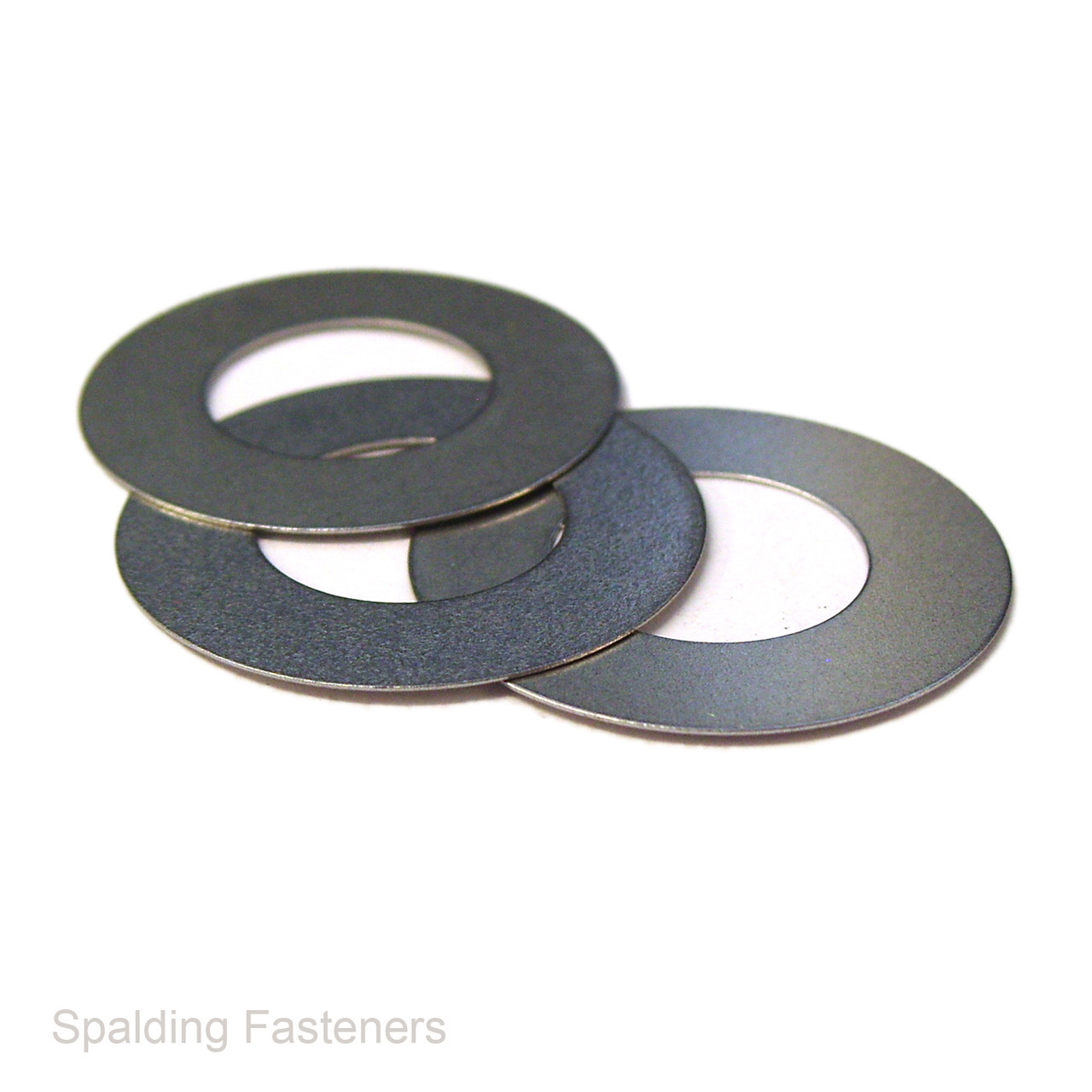

Metric self colour steel shim washers, 1mm thick, for packing, spacing, alignment and adjustment applications.
These plain steel shim packing washers are useful where a spacer, packing washer or fine adjustment washer is required. The 1mm thickness makes them suitable for machinery setup, tolerance correction, levelling, alignment, engineering repairs and general workshop use.
- Type: Shim packing washer
- Material: Plain steel / self colour steel
- Finish: None plated / unplated
- Thickness: 1mm
- Size format: Internal diameter x outside diameter
- Available sizes: 3mm x 6mm through to 40mm x 50mm
- Available pack sizes: 1, 5, 10, 20, 50, 100, 250, 500 and 1000
| A | B | C |
| 3mm | 6mm | 1mm |
| 4mm | 8mm | 1mm |
| 5mm | 10mm | 1mm |
| 6mm | 12mm | 1mm |
| 8mm | 14mm | 1mm |
| 10mm | 16mm | 1mm |
| 12mm | 24mm | 1mm |
| 12mm | 18mm | 1mm |
| 14mm | 20mm | 1mm |
| 16mm | 22mm | 1mm |
| 18mm | 25mm | 1mm |
| 20mm | 28mm | 1mm |
| 20mm | 32mm | 1mm |
| 22mm | 32mm | 1mm |
| 25mm | 35mm | 1mm |
| 26mm | 37mm | 1mm |
| 26mm | 38mm | 1mm |
| 28mm | 40mm | 1mm |
| 30mm | 42mm | 1mm |
| 32mm | 45mm | 1mm |
| 35mm | 45mm | 1mm |
| 36mm | 45mm | 1mm |
| 37mm | 47mm | 1mm |
| 40mm | 50mm | 1mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
