Product Description

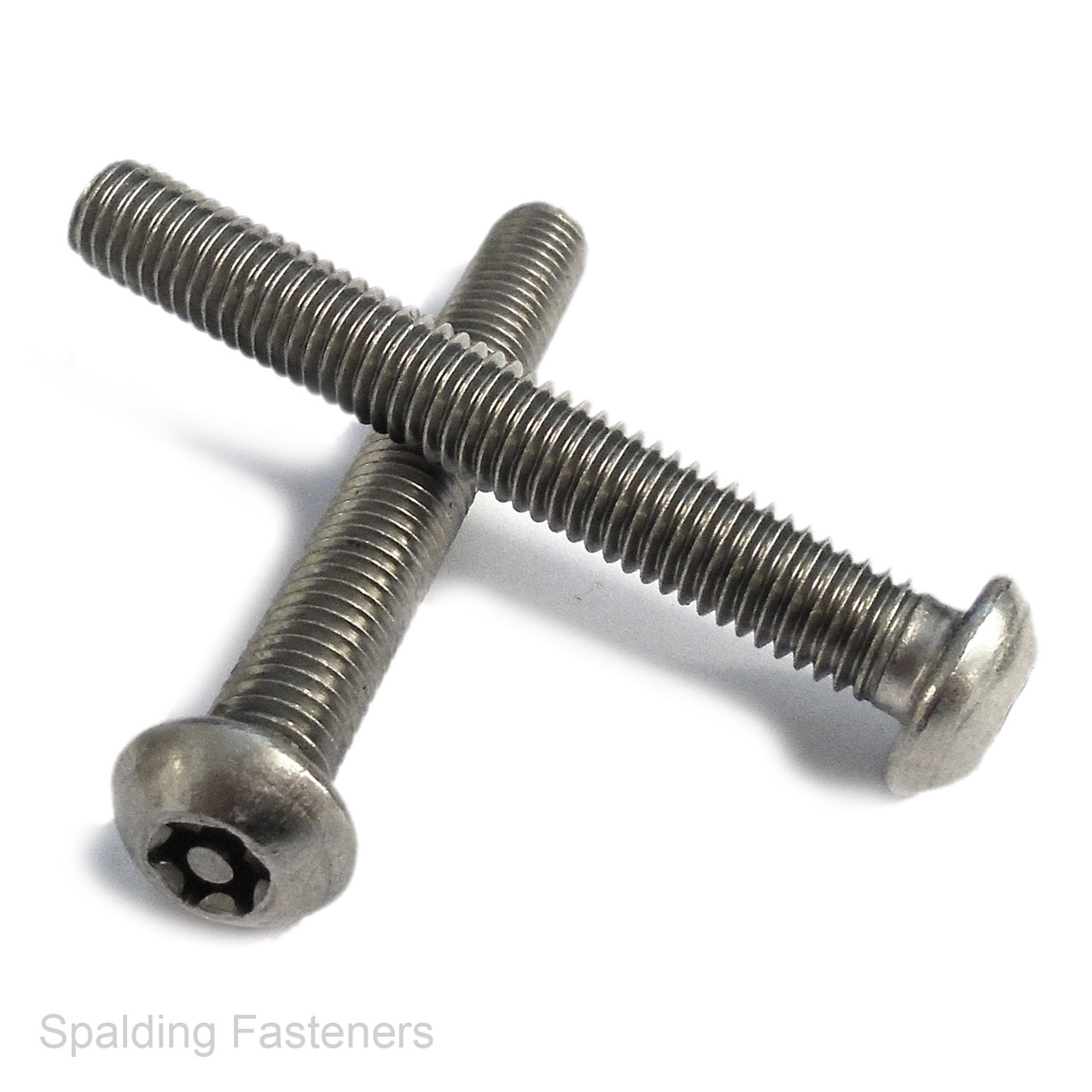

M6 metric stainless steel security Torx button head machine screws with a tamper-resistant 6-lobe pin drive.
These M6 machine screws feature a low-profile rounded button head and a central security pin that requires a compatible tamper-resistant Torx driver bit. Manufactured from stainless steel, they are suitable for security panels, guards, enclosures, machinery, automotive trim and general fastening applications where additional tamper resistance is required.
- Thread size: M6 x 1mm
- Thread form: Metric coarse / standard pitch
- Material: Stainless steel
- Head type: Button head

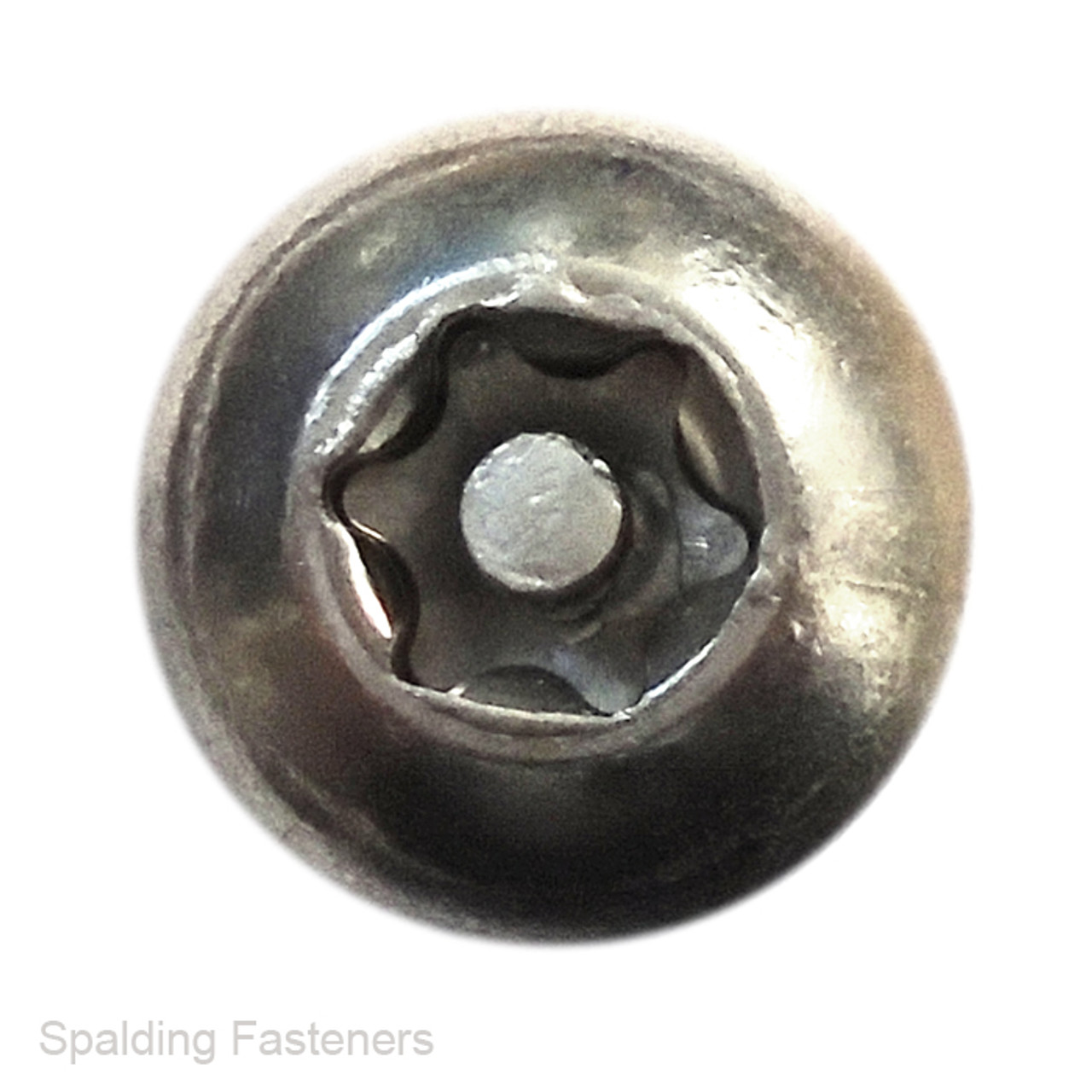

- Drive type: 6-lobe security Torx with centre pin
- Fastener type: Machine screw
- Lengths available: 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 40mm and 50mm

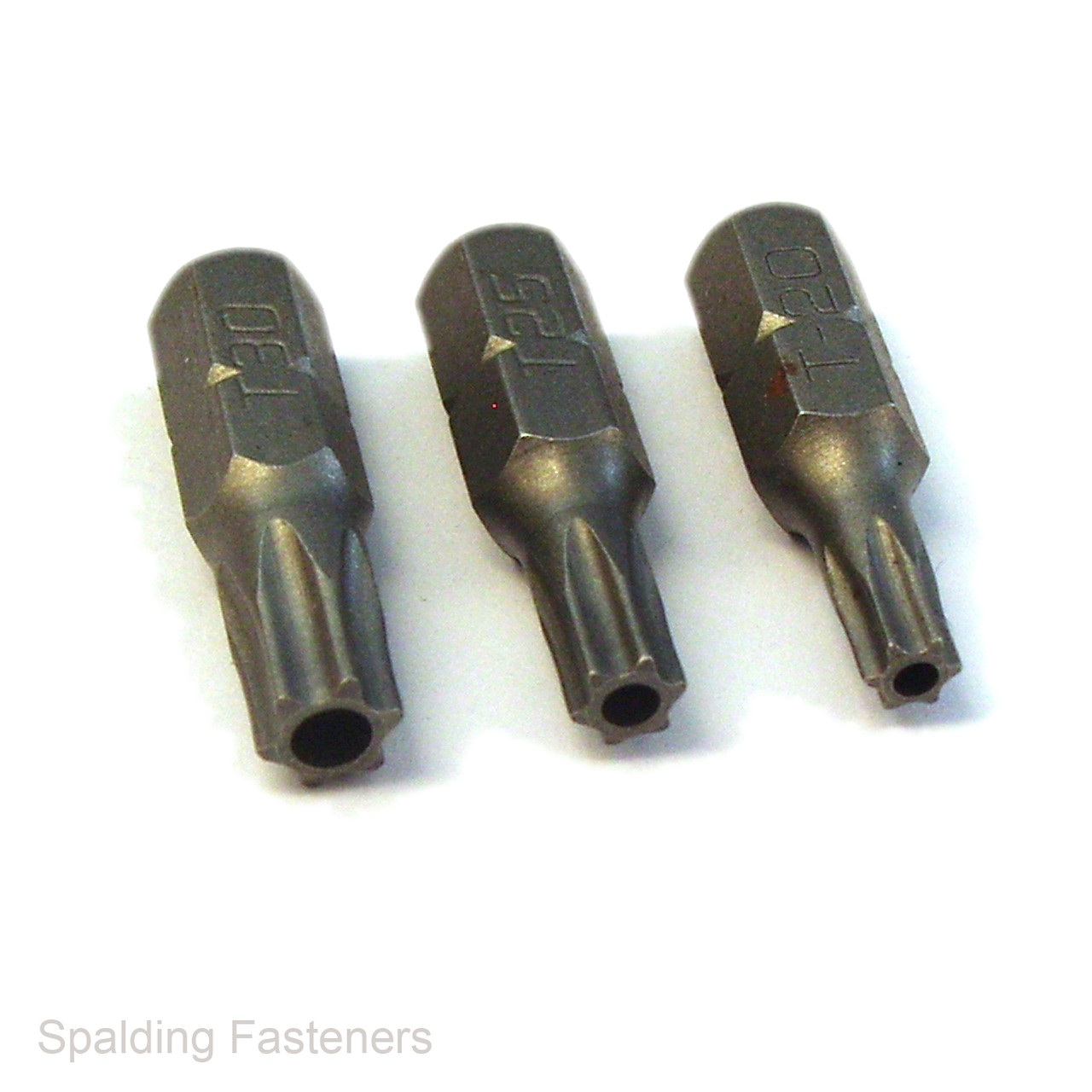

- Supplied with a free compatible drill / screwdriver bit
- Available pack sizes: 5, 10, 20, 50, 100, 250, 500 and 1000
| A | B | C | D | E |
| 6mm | 10mm | * | * | 1 |
| 6mm | 12mm | * | * | 1 |
| 6mm | 16mm | * | * | 1 |
| 6mm | 20mm | * | * | 1 |
| 6mm | 25mm | * | * | 1 |
| 6mm | 30mm | * | * | 1 |
| 6mm | 40mm | * | * | 1 |
| 6mm | 50mm | * | * | 1 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
