M5 A2 Stainless Pan Slotted Screws DIN 85

Product Description

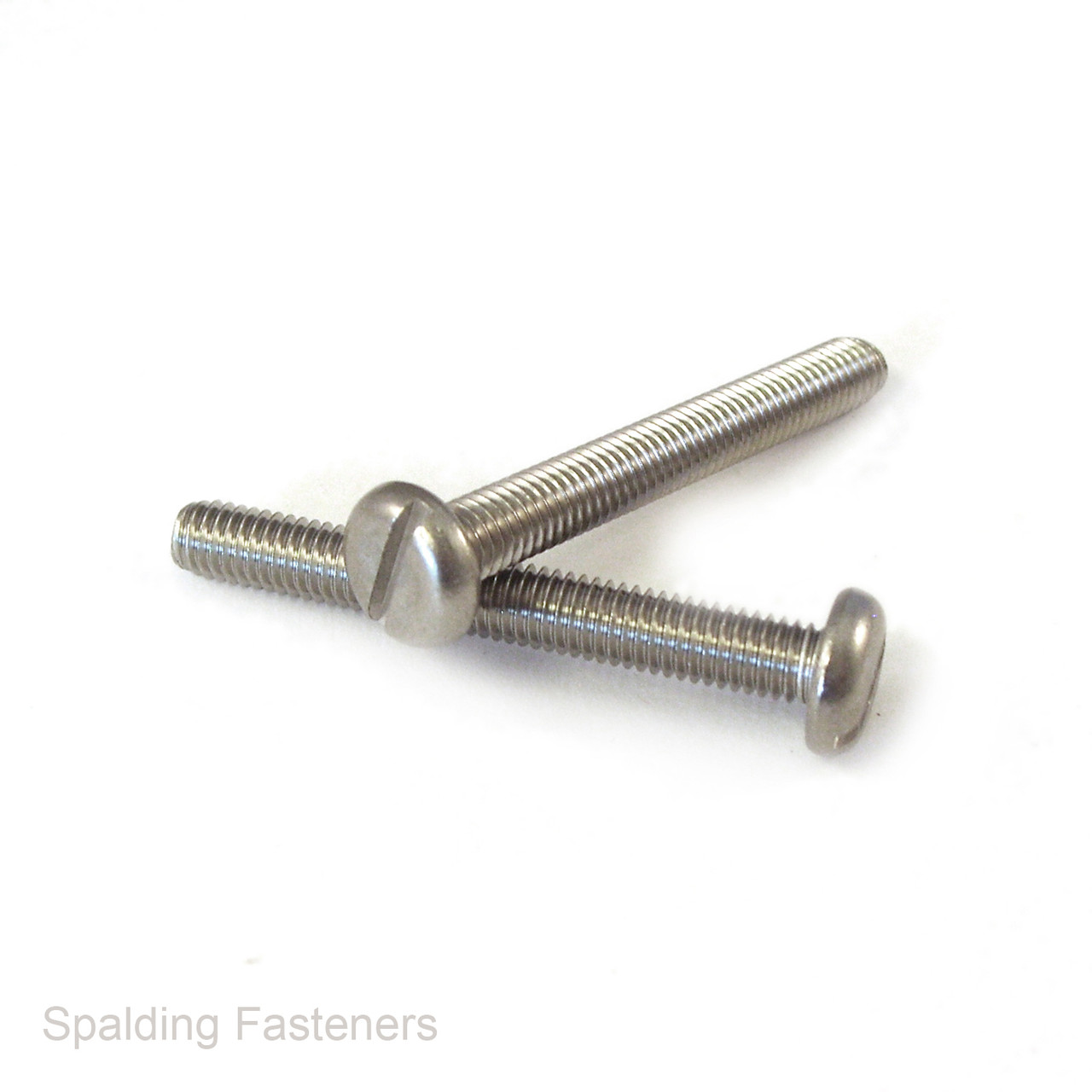

M5 A2 Stainless Steel Pan Slotted Machine Screws

M5 metric coarse pan-head slotted machine screws manufactured from corrosion-resistant A2 stainless steel. These screws have an M5 x 0.8mm thread for use with compatible metric nuts, threaded inserts and M5 tapped holes.

The rounded pan head provides a broad bearing surface and a neat finished appearance. Its traditional slotted drive allows installation with a correctly sized flat-blade screwdriver or driver bit. Suitable applications include engineering, machinery, electrical equipment, restoration, maintenance and general assembly work.

Product specifications

• Thread size: M5
• Thread pitch: 0.8mm metric coarse
• Material: A2 stainless steel
• Head style: Pan head
• Drive type: Slotted
• Head diameter: Approximately 10mm – see dimensional note below
• Head height: Approximately 3mm
• Former standard: DIN 85
• Current standard: ISO 1580:2011
• British Standard: BS EN ISO 1580:2011
• Length measurement: From beneath the head

Other sizes include our M3 A2 stainless pan-slotted screws, M4 A2 stainless pan-slotted screws and M6 A2 stainless pan-slotted screws. You can also browse the complete pan-slotted machine screw range.

For further information, see our metric thread data guide and A2 versus A4 stainless steel guide.

Dimensions are provided as a guide. If a particular measurement, thread coverage or standards compliance is critical, please contact us before ordering.

Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
