1/2"-13 UNC Grade 5 Self-Colour Hexagon Bolts

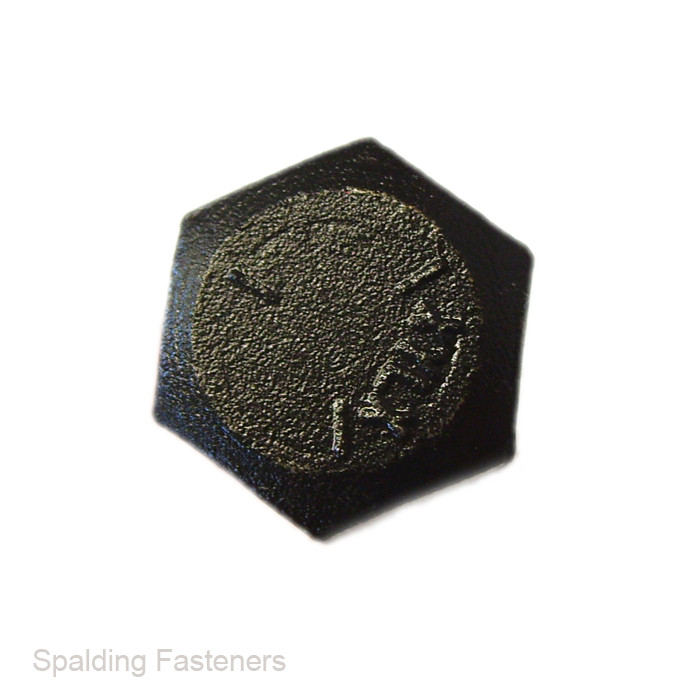

These 1/2" UNC Grade 5 hexagon head bolts are manufactured from high-tensile steel and supplied with a plain self-colour finish. Their partially threaded design leaves an unthreaded shank beneath the head, making them suitable for assemblies where the plain shank passes through the joined components.
The 1/2"-13 UNC coarse thread has 13 threads per inch. The coarser UNC thread form is widely used for automotive, machinery, agricultural, fabrication and general engineering applications.
- Thread size: 1/2"-13 UNC
- Threads per inch: 13 TPI
- Thread form: Unified National Coarse
- Strength grade: SAE Grade 5
- Material: High-tensile steel
- Finish: Plain/self colour
- Head style: Hexagon head
- Thread coverage: Part threaded with plain shank
- Spanner size: 3/4" AF
- Nominal head height: 5/16"
- Mechanical standard: SAE J429 Grade 5
- Dimensional standard: ASME B18.2.1
- Thread standard: ASME B1.1
Available Lengths and Nominal Thread Lengths
Bolt length is measured from beneath the hexagon head to the end of the bolt. The following thread and plain-shank lengths are nominal dimensions.
| Thread Size | Bolt Length | Nominal Thread Length | Nominal Plain Shank | Spanner Size | TPI |
|---|---|---|---|---|---|
| 1/2" UNC | 1 1/2" | 1 1/4" | 1/4" | 3/4" | 13 |
| 1/2" UNC | 1 3/4" | 1 1/4" | 1/2" | 3/4" | 13 |
| 1/2" UNC | 2" | 1 1/4" | 3/4" | 3/4" | 13 |
| 1/2" UNC | 2 1/4" | 1 1/4" | 1" | 3/4" | 13 |
| 1/2" UNC | 2 1/2" | 1 1/4" | 1 1/4" | 3/4" | 13 |
| 1/2" UNC | 2 3/4" | 1 1/4" | 1 1/2" | 3/4" | 13 |
| 1/2" UNC | 3" | 1 1/4" | 1 3/4" | 3/4" | 13 |
| 1/2" UNC | 3 1/2" | 1 1/4" | 2 1/4" | 3/4" | 13 |
| 1/2" UNC | 4" | 1 1/4" | 2 3/4" | 3/4" | 13 |
| 1/2" UNC | 4 1/2" | 1 1/4" | 3 1/4" | 3/4" | 13 |
| 1/2" UNC | 5" | 1 1/4" | 3 3/4" | 3/4" | 13 |
| 1/2" UNC | 5 1/2" | 1 1/4" | 4 1/4" | 3/4" | 13 |
| 1/2" UNC | 6" | 1 1/4" | 4 3/4" | 3/4" | 13 |
| 1/2" UNC | 8" | 1 1/2" | 6 1/2" | 3/4" | 13 |
Typical Applications
- Automotive and vehicle repairs
- Agricultural and construction equipment
- Machinery, brackets and structural assemblies
- Classic American vehicles and imported machinery
- Workshop, maintenance and fabrication work
The self-colour finish has no protective zinc coating and can develop surface oxidation when exposed to moisture. Apply a suitable coating, lubricant or corrosion inhibitor where environmental protection is required.
Use with a compatible 1/2"-13 UNC nut and appropriately sized washer. Fastener suitability, tightening torque and preload must be determined for the particular joint and operating conditions.
Browse all UNC hexagon head bolts or consult our thread data guide for information about UNC, UNF and metric threads.
Please note: Dimensions are nominal and may vary within the permitted manufacturing tolerances. Check suitability before ordering where dimensions, strength or thread engagement are critical.
