Product Description

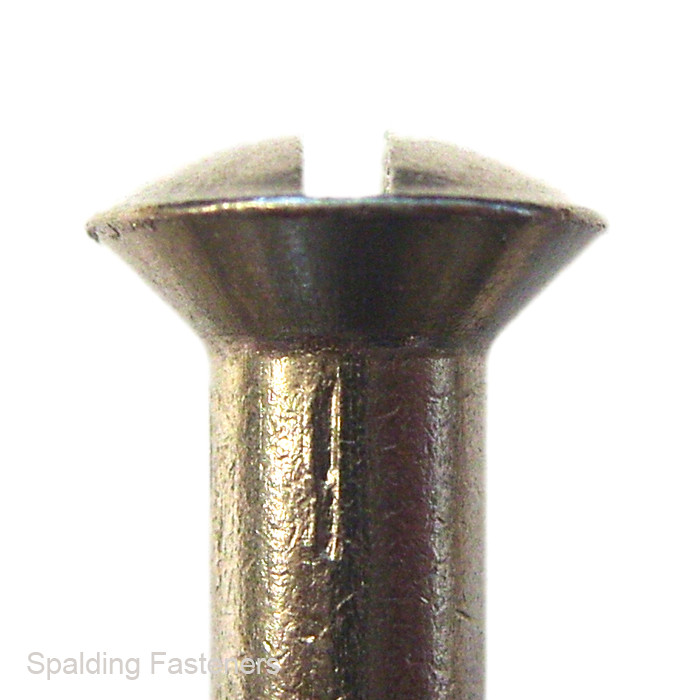

1/4-20 UNC A2 Stainless Raised Countersunk Slotted Machine Screws
1/4-20 UNC raised countersunk slotted machine screws manufactured from corrosion-resistant A2 stainless steel. Also known as slotted oval-head machine screws, they combine a countersunk underside with a slightly raised decorative head profile.
These screws are designed for use with a corresponding 1/4-20 UNC nut or tapped hole. The traditional slotted drive makes them suitable for engineering, maintenance and restoration applications where a conventional flat-bladed drive and a neat raised finish are required.
Product Specifications
- Thread size: 1/4-20 UNC
- Nominal diameter: 1/4 inch / 6.35mm
- Thread series: Unified National Coarse
- Threads per inch: 20 TPI
- Thread pitch: 0.050 inch / 1.27mm
- Material: A2 stainless steel
- Finish: Natural stainless steel
- Head style: Raised countersunk / oval countersunk
- Drive type: Slotted
- Nominal countersunk angle: 80–82 degrees
- Machine-screw standard: ASME B18.6.3-2024
- British thread standard: BS 1580-1:2007
Typical Applications
- Vintage vehicle and machinery restoration
- General engineering and maintenance
- Electrical equipment and enclosures
- Decorative metal assemblies
- Equipment manufactured with UNC threaded components
- Applications requiring a neat, slightly raised head profile
Raised countersunk screw length is measured over the complete fastener, including the head. Use only with a matching 1/4-20 UNC internal thread; these screws are not interchangeable with 1/4-inch UNF, BSW or BSF threads.
Use a correctly fitting flat-bladed screwdriver to reduce the risk of damaging the slot. Stainless steel threads can be susceptible to galling, so a suitable anti-seize compound and controlled assembly speed may be beneficial.
Browse more machine screws, nuts and washers.
Please note: Specifications are provided as a guide. Please contact us before ordering if a particular dimension, material certification or standard is critical to your application.
| A | B | C | D |
| 1/4" | 1" | * | 20 |
| 1/4" | 5/8" | * | 20 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
