Product Description

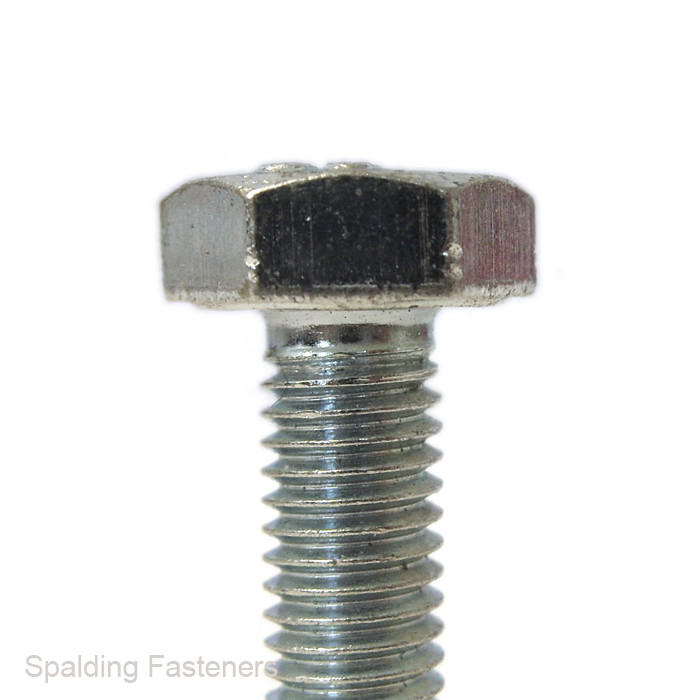

No.8-32 UNC A2 Stainless Steel Hexagon Head Screws
These No.8-32 UNC A2 stainless steel hexagon head screws feature a fully threaded shank and a 32 threads-per-inch Unified National Coarse thread. They provide good resistance to everyday corrosion and are suitable for electrical equipment, machinery, instrumentation, automotive work and general imperial fastening applications.
The external hexagon head allows controlled installation using a correctly fitting imperial spanner or socket. The fully threaded design is useful where the mating nut or tapped hole needs to engage close to the underside of the head.
Product Details
- Thread designation: No.8-32 UNC
- Nominal major diameter: 0.164″
- Thread series: Unified National Coarse
- Threads per inch: 32 TPI
- Material: A2 stainless steel
- Head style: External hexagon head
- Thread coverage: Fully threaded
- Available length: 3/4″
- Length measurement: From beneath the head
Available Size
| Thread Designation | Length | Threads Per Inch | Material | Thread Coverage |
|---|---|---|---|---|
| No.8-32 UNC | 3/4″ | 32 TPI | A2 stainless steel | Fully threaded |
Screw length is measured from beneath the hexagon head to the end of the threaded shank.
Benefits of A2 Stainless Steel
- Good resistance to moisture and atmospheric corrosion
- Suitable for many indoor and general outdoor applications
- No protective zinc coating to chip or wear away
- Clean appearance suitable for exposed assemblies
- Fully threaded design provides maximum thread engagement
Typical Applications
- Electrical and electronic equipment
- Instrumentation and control systems
- Small machinery and imperial equipment
- Automotive and motorcycle restoration
- Brackets, panels and equipment enclosures
- General maintenance and repair work
Installation Guidance
Confirm that the mating nut or tapped hole has a No.8-32 UNC thread before installation. Do not substitute a similarly sized metric screw, as the diameter and thread pitch will not be compatible.
Install using a correctly fitting imperial spanner or socket. Stainless steel threads can gall or seize when assembled quickly, without lubrication or under high tightening pressure. A suitable anti-seize compound may be beneficial where repeated assembly is expected.
A2 stainless steel is suitable for many general applications but may not be appropriate for prolonged exposure to seawater, salt spray or strongly chlorinated environments. A4 stainless steel should be considered for demanding marine and chloride-rich conditions.
Please select the required pack quantity from the available product options.
