Product Description

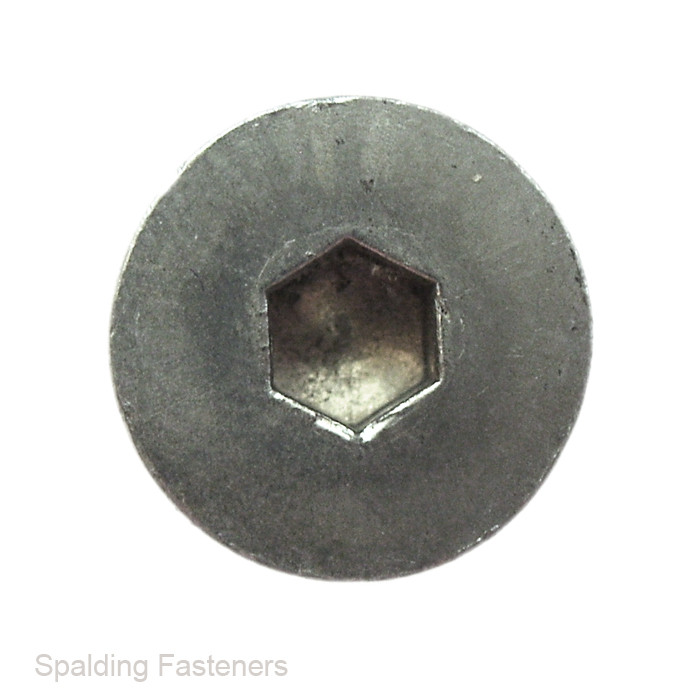

M6 Zinc Plated 10.9 Countersunk Socket Screws
M6 high tensile steel countersunk socket screws with a zinc plated finish and internal Allen key drive. The countersunk head fits flush within a correctly prepared countersink.
Key Features
- M6 x 1.0 metric coarse thread
- 10.9 grade high tensile steel
- Zinc plated finish
- Countersunk socket head
- 4mm Allen key drive
- 12mm reference head diameter
- DIN 7991 profile
Available Lengths
10mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 70mm, 80mm, 90mm and 100mm.
Length is measured over the complete screw, including the countersunk head. Available in packs from 5 to 1,000.
Standards
Manufactured to the DIN 7991 dimensional profile. The current corresponding standard is BS EN ISO 10642:2026 for hexagon socket countersunk head screws with reduced loadability.
The countersunk head has lower load capacity than a standard socket cap head. Avoid using these screws as direct replacements in critical joints without checking the application requirements.
Useful Links
- View metric countersunk socket screws
- M8 zinc plated countersunk socket screws
- M16 zinc plated countersunk socket screws
- How to measure a screw
Specifications are intended as a guide. Confirm dimensions before use in critical applications.
