Product Description

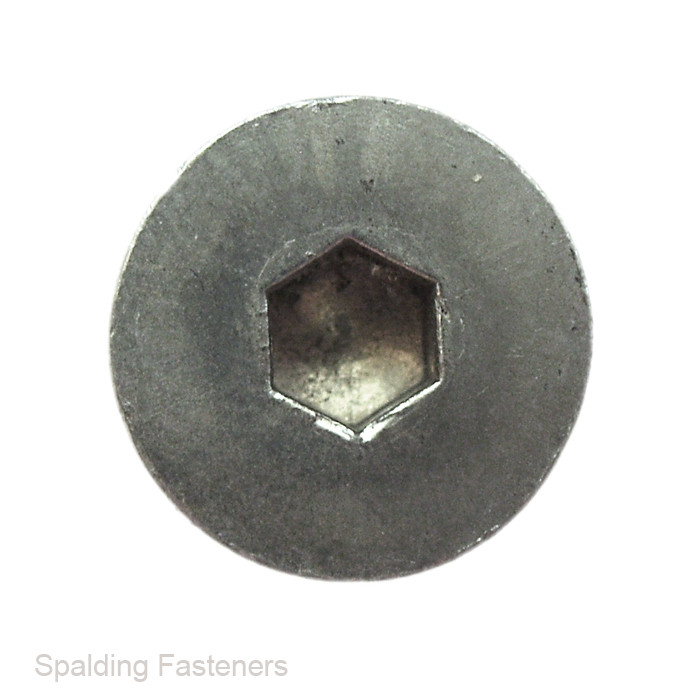

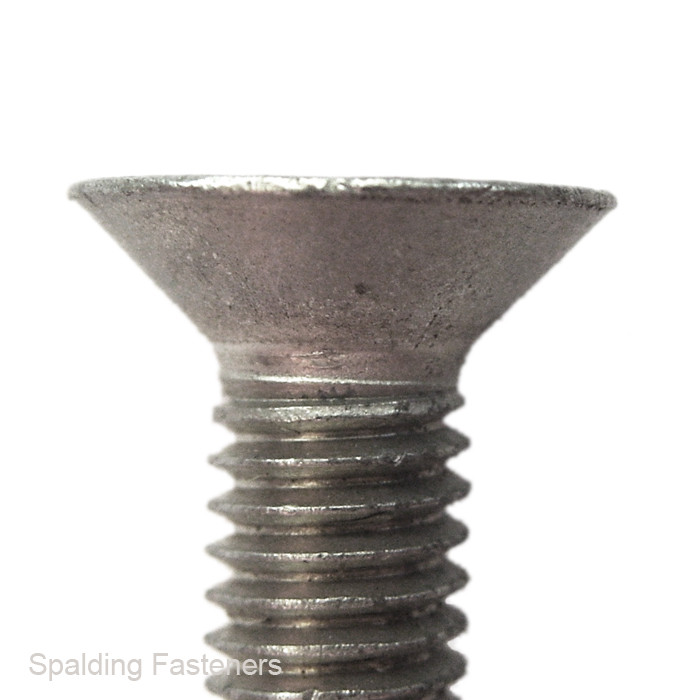

M16 Zinc Plated 10.9 Countersunk Socket Screws
M16 high tensile steel countersunk socket screws with a zinc plated finish and internal Allen key drive. The countersunk head fits flush within a correctly prepared countersink.
Key Features
- M16 x 2 metric coarse thread
- 10.9 grade high tensile steel
- Zinc plated finish
- Countersunk socket head
- 10mm Allen key drive
- 30mm reference head diameter
- DIN 7991 profile
Available Lengths
30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 90mm and 100mm.
Length is measured over the complete screw, including the countersunk head. Available in packs from 1 to 1,000.
Standards
Manufactured to the DIN 7991 dimensional profile. The current corresponding standard is BS EN ISO 10642:2026 for hexagon socket countersunk head screws with reduced loadability.
The countersunk head has lower load capacity than a standard socket cap head. Check the application requirements before use in critical joints.
