Product Description
M8 A2 Stainless Raised Countersunk Pozi Machine Screws
M8 raised countersunk Pozi machine screws manufactured from corrosion-resistant A2 stainless steel. The countersunk section seats into the prepared hole while the rounded top remains slightly raised above the surface.
Key Features
- M8 x 1.25 metric coarse thread
- A2 stainless steel

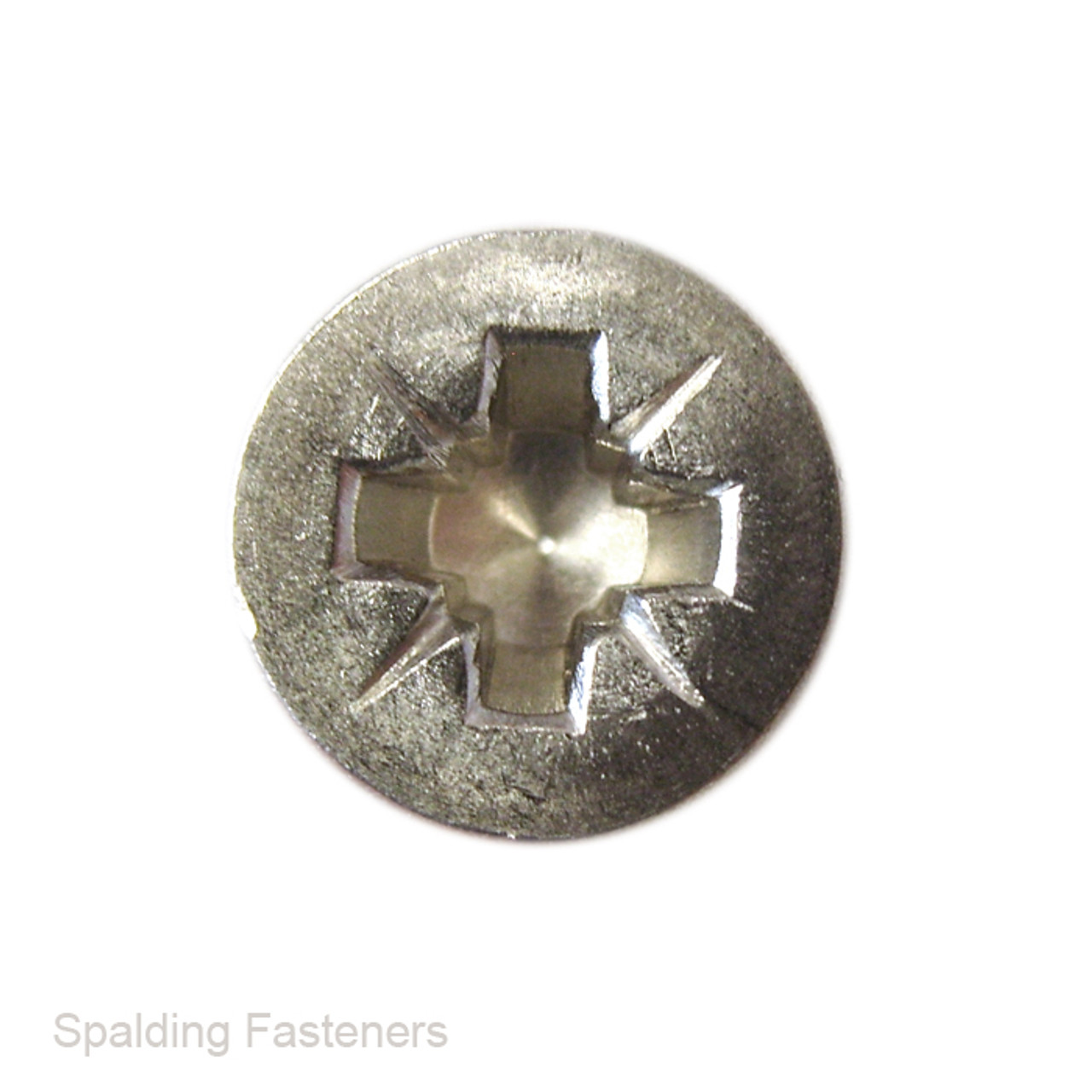

- Pozi cross recess drive
- Raised countersunk head
- Available lengths: 30mm and 50mm
- Pack sizes from 1 to 100
Dimensions
- Thread diameter: 8mm
- Thread pitch: 1.25mm
- Head diameter: 14.25mm
Standards
This product type corresponds to DIN 966. The current corresponding standard is ISO 7047 and BS EN ISO 7047:2011.
Raised countersunk screw length is measured from the top of the head to the end of the screw. Confirm the mating thread is M8 x 1.25 before installation.
