Product Description

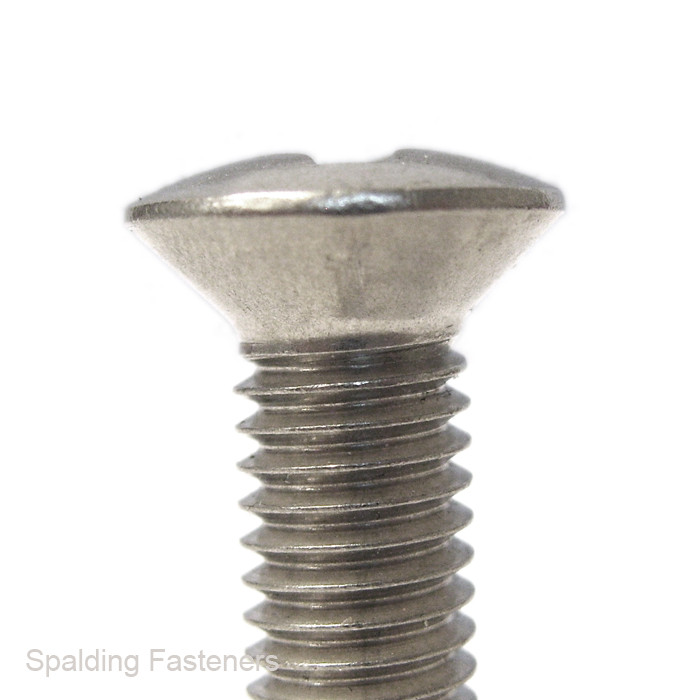

M5 A2 Stainless Raised Countersunk Pozi Machine Screws
M5 raised countersunk Pozi machine screws manufactured from corrosion-resistant A2 stainless steel. The countersunk section seats into the prepared hole while the rounded top remains slightly raised above the surface.
Key Features
- M5 x 0.8 metric coarse thread
- A2 stainless steel
- Pozi cross recess drive
- Raised countersunk head
- Available lengths: 10mm, 20mm, 25mm, 40mm and 60mm
- Pack sizes from 5 to 1,000
Dimensions
- Thread diameter: 5mm
- Thread pitch: 0.8mm
- Head diameter: 9.2mm
Standards
Manufactured to the DIN 966 pattern. The current corresponding standard is ISO 7047 and BS EN ISO 7047:2011.
Raised countersunk screw length is measured from the top of the head to the end of the screw. Confirm the mating thread is M5 x 0.8 before installation.
