Product Description
M10 x 1 Grade 8.8 Yellow Zinc Hex Head Bolts

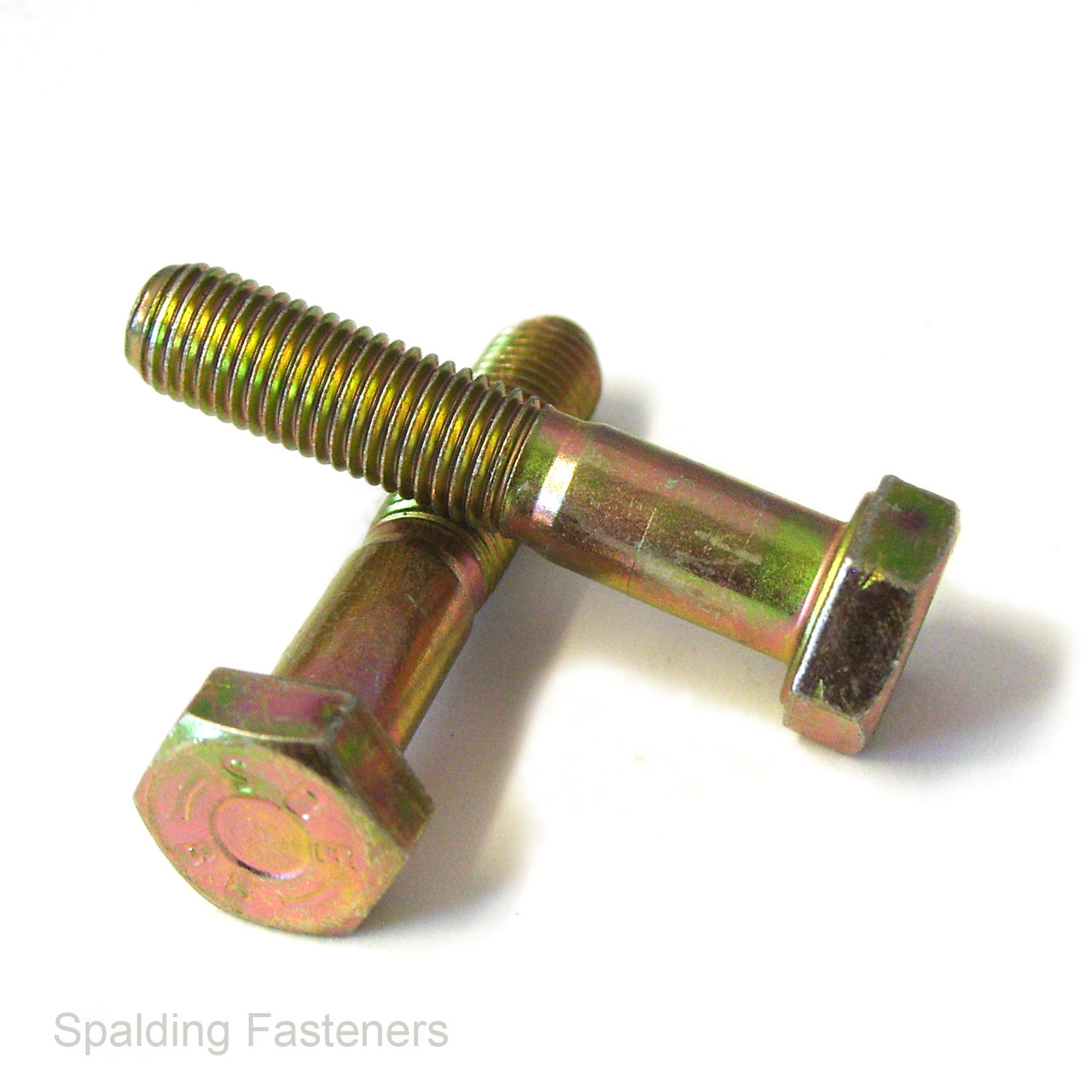

M10 x 1 metric fine hexagon head bolts manufactured from grade 8.8 high tensile steel with a yellow zinc plated finish. These part-threaded bolts include an unthreaded shank for supported and aligned assemblies.
Key Features
- M10 x 1 metric fine thread

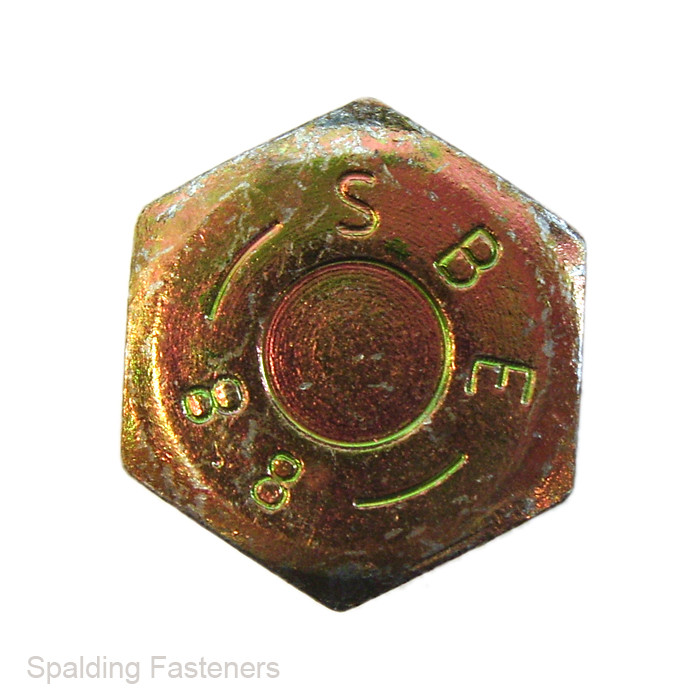

- Grade 8.8 high tensile steel
- Yellow zinc plated finish

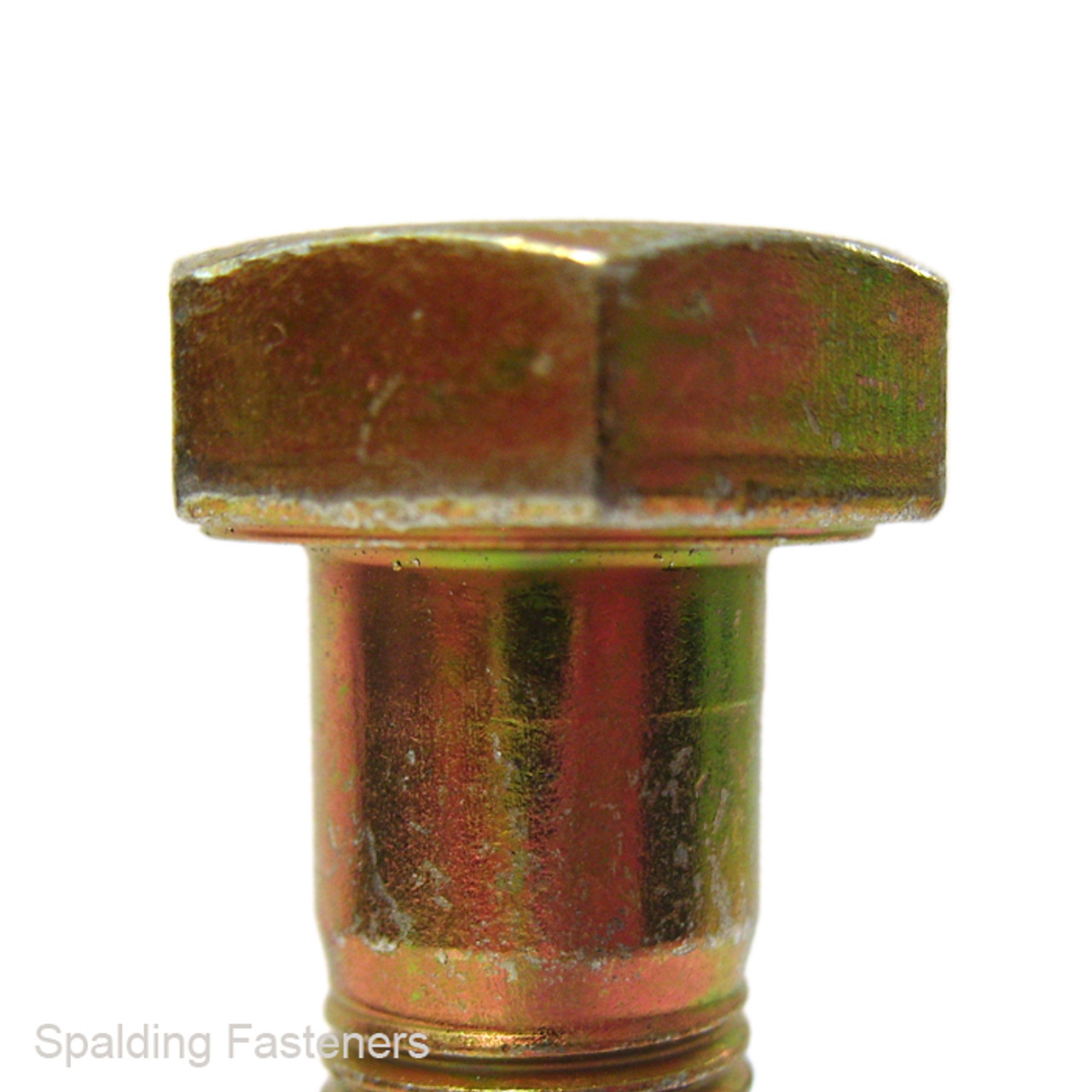

- Hexagon head
- Part-threaded shank
- Available length: 90mm
- Pack sizes from 1 to 100
Dimensions
- Thread diameter: 10mm
- Thread pitch: 1mm
- Overall length: 90mm
- Threaded length: 26mm
- Unthreaded shank: 64mm
- Spanner size: 17mm
- Head height: 6.4mm
Standards
Manufactured to ISO 8765. The current British adoption is BS EN ISO 8765:2022. DIN 960 is the corresponding older dimensional standard.
Bolt length is measured from beneath the hexagon head to the end of the bolt. Confirm that the mating nut or threaded component has an M10 x 1 fine thread.
Useful Links
- M10 metric fine yellow zinc hex bolts
- M12 metric fine yellow zinc hex bolts
- M8 metric fine yellow zinc hex bolts
- Metric thread data guide
| A | B | C | D | E | F | G |
| 10mm | 50mm | 26mm | 17mm | 6.4mm | 1 | 24mm |
| 10mm | 60mm | 26mm | 17mm | 6.4mm | 1 | 34mm |
| 10mm | 70mm | 26mm | 17mm | 6.4mm | 1 | 44mm |
| 10mm | 90mm | 26mm | 17mm | 6.4mm | 1 | 64mm |
| 10mm | 100mm | 26mm | 17mm | 6.4mm | 1 | 74mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
