Product Description

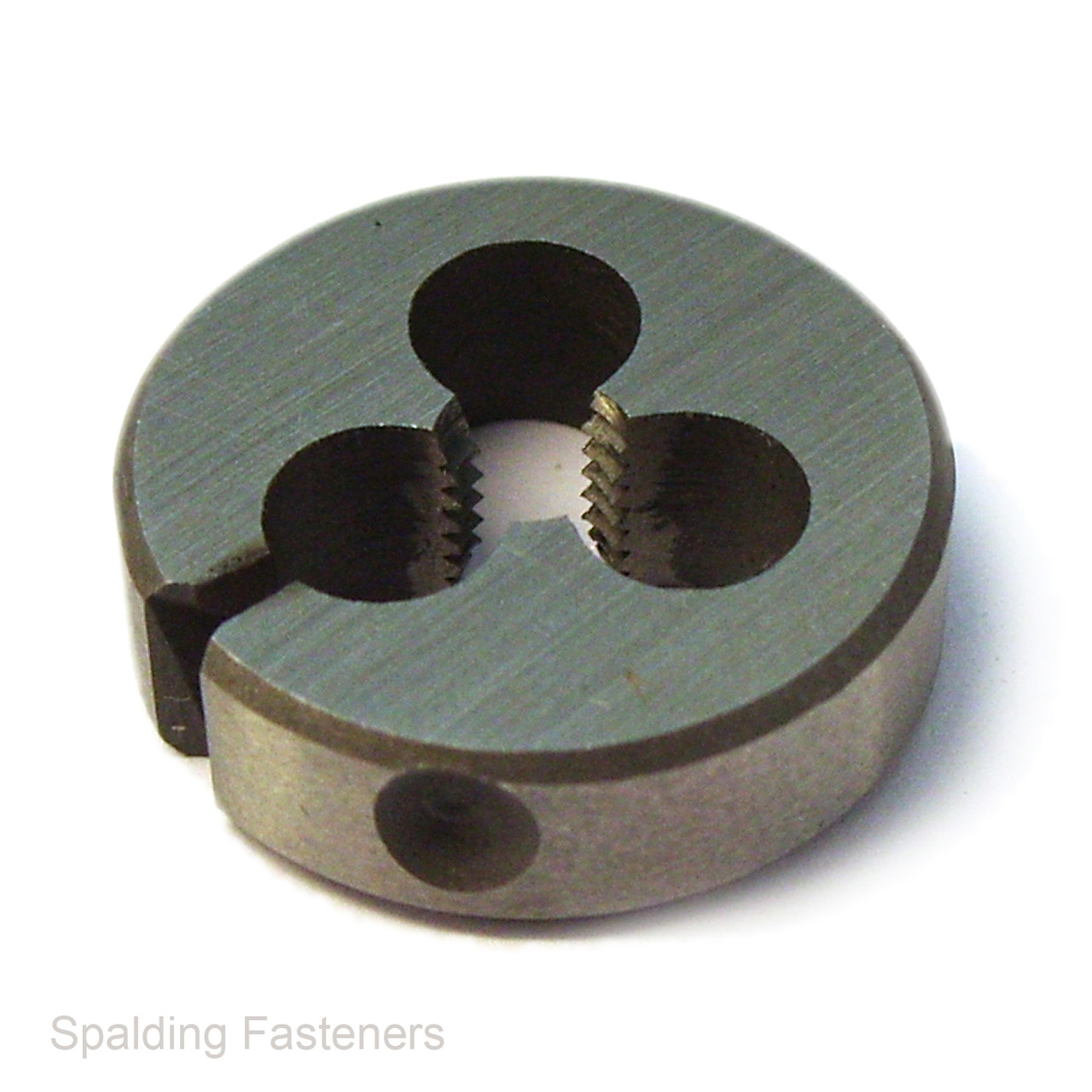

13/16 Inch Metric HSS Circular Split Dies
UK-made high speed steel circular split dies for cutting new metric coarse external threads and restoring existing threads. Each die has a 13/16 inch outside diameter for use with a compatible die holder.
Key Features
- High speed steel construction
- Suitable for cutting and restoring threads
- Standard metric coarse thread pitches
- 13/16 inch outside die diameter
- Made in the UK
Available Sizes
| Thread Size | Thread Pitch | Die Diameter |
|---|---|---|
| M2 | 0.4mm | 13/16 inch |
| M2.2 | 0.45mm | 13/16 inch |
| M2.5 | 0.45mm | 13/16 inch |
| M3 | 0.5mm | 13/16 inch |
| M3.5 | 0.6mm | 13/16 inch |
| M4 | 0.7mm | 13/16 inch |
| M4.5 | 0.75mm | 13/16 inch |
| M5 | 0.8mm | 13/16 inch |
| M6 | 1mm | 13/16 inch |
| M7 | 1mm | 13/16 inch |
Standard
The metric coarse thread sizes and pitches follow ISO 261 and BS 3643-1. No manufacturing standard is claimed for the die body.
Useful Links
- View all dies
- View 1 inch metric HSS dies
- View 1 5/16 inch metric HSS dies
- View 2 inch metric HSS dies
- Metric thread data guide
Use with a compatible 13/16 inch die holder and suitable thread-cutting lubricant. Keep the die square to the workpiece and regularly reverse it to clear swarf.
Specifications are intended as a guide. Confirm the required thread size, pitch and die diameter before ordering.
