Product Description

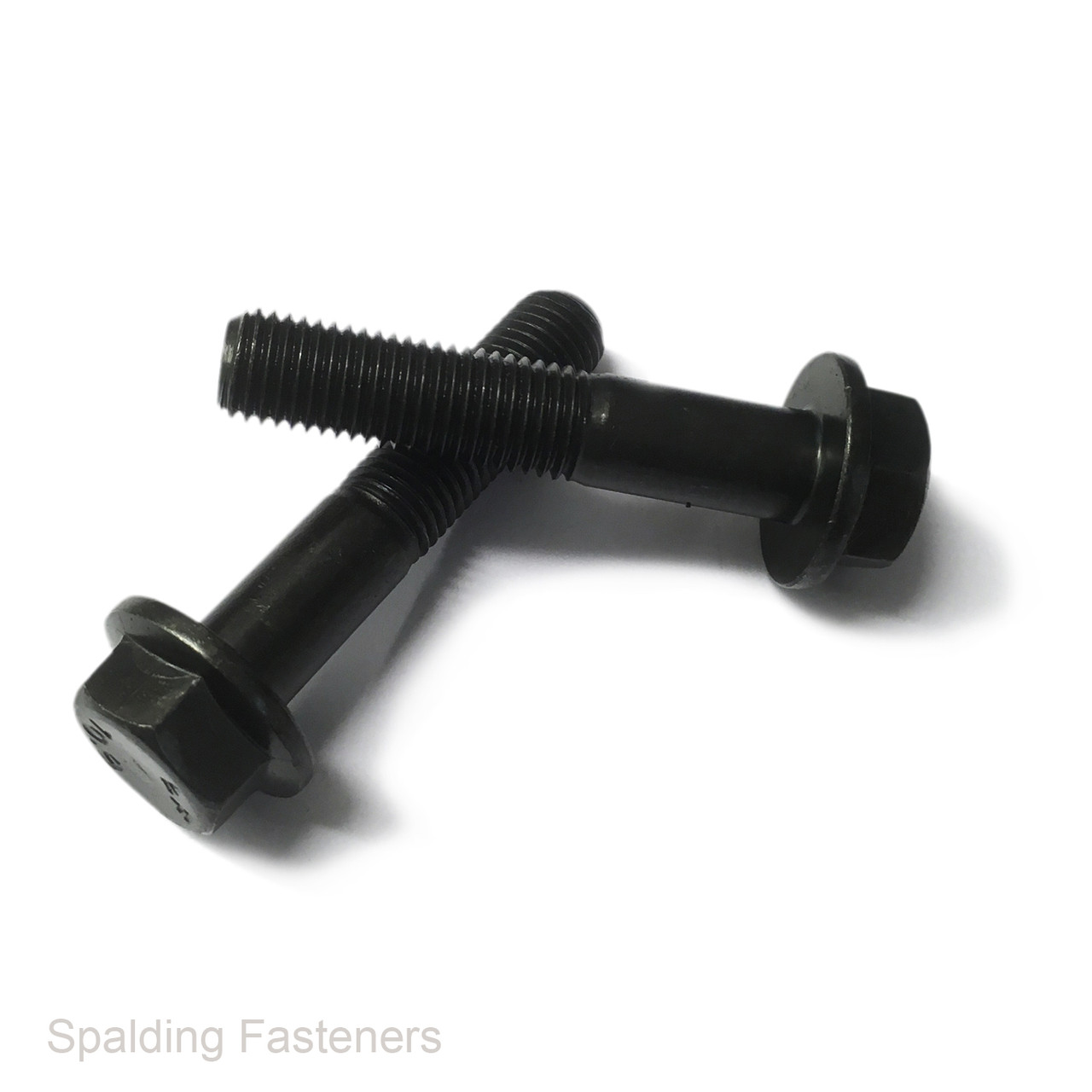

M10 10.9 Self Colour Part Threaded Hex Flange Bolts
M10 metric coarse hex flange bolts in high tensile steel, property class 10.9, with a self colour finish. The integral flange provides a wider bearing surface beneath the head, while the part threaded design includes a plain shank.
Specifications
| Feature | Specification |
|---|---|
| Thread size | M10 |
| Thread pitch | 1.5mm coarse |
| Property class | 10.9 |
| Material | High tensile steel |
| Finish | Self colour, unplated |
| Head type | Hexagon with integral flange |
| Spanner size | 15mm across flats |
| Listed flange diameter | 21mm |
| Listed head height | 9mm |
| Thread coverage | Part threaded |
Available Lengths
| Bolt Length (mm) | Listed Thread Length (mm) | Listed Plain Shank Length (mm) |
|---|---|---|
| 40 | 27 | 13 |
| 60 | 27 | 33 |
| 70 | 30 | 40 |
Bolt length is measured from beneath the flange to the tip.
Key Features
- High tensile 10.9 grade steel
- M10 x 1.5mm metric coarse thread
- Integral flange to distribute the fastening load
- Plain shank beneath the head
- 15mm spanner or socket fitting
Self colour steel can rust when exposed to moisture. Choose suitable corrosion protection and use matching nuts of an appropriate strength.
Related Products and Guides
- M10 10.9 Self Colour Part Threaded Hex Bolts DIN 931
- Metric Thread Data Guide
- Metric Washer Size Guide
Specifications are intended as a guide. Confirm the required length, thread engagement, plain shank and flange clearance before ordering where these are critical.
