Product Description

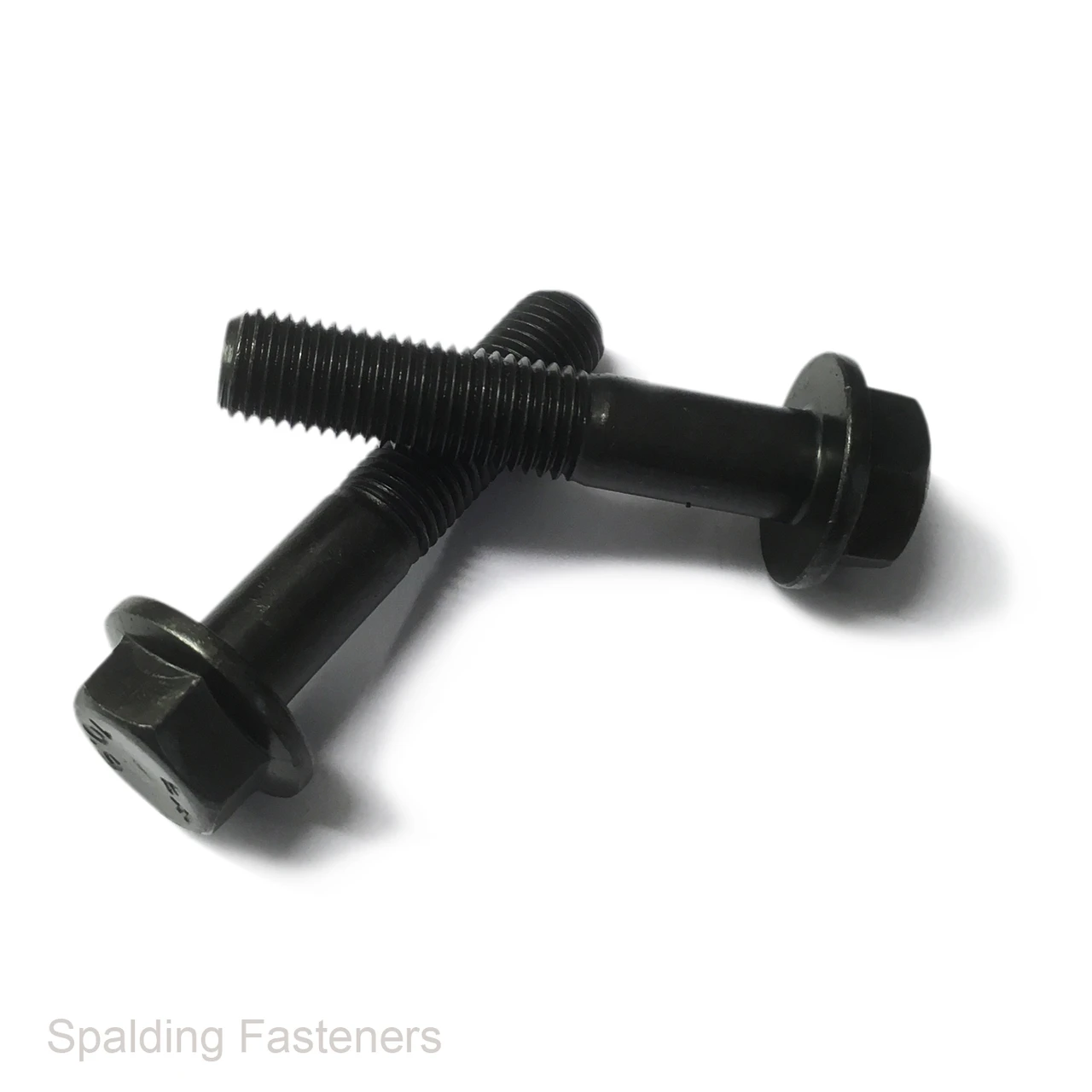

M10 metric fine 10.9 grade self colour steel hex flange bolts with a 1.25mm fine pitch thread.
These high tensile M10 fine pitch hex flange bolts are manufactured from 10.9 grade steel and supplied in a self colour / unplated finish. The built-in flange head helps spread the load over a wider bearing surface, making them suitable for automotive, machinery, engineering, motorsport, repair and general high strength fastening applications where an M10 x 1.25 fine thread is required.
- Thread size: M10 x 1.25
- Thread form: Metric fine pitch
- Grade: 10.9 high tensile steel
- Finish: Self colour / unplated steel
- Head type: Hexagon flange head
- Thread type: Part threaded bolt with plain shank
- Flange diameter: 22.3mm
- Spanner size: 15mm A/F
- Available lengths: 40mm, 50mm, 60mm and 70mm
| A | B | C | D | E | F | G | H |
| 10mm | 40mm | 26mm | 22.3mm | 9.2mm | 15mm | 1.25 | 14mm |
| 10mm | 50mm | 26mm | 22.3mm | 9.2mm | 15mm | 1.25 | 24mm |
| 10mm | 60mm | 26mm | 22.3mm | 9.2mm | 15mm | 1.25 | 34mm |
| 10mm | 70mm | 26mm | 22.3mm | 9.2mm | 15mm | 1.25 | 44mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
