Product Description

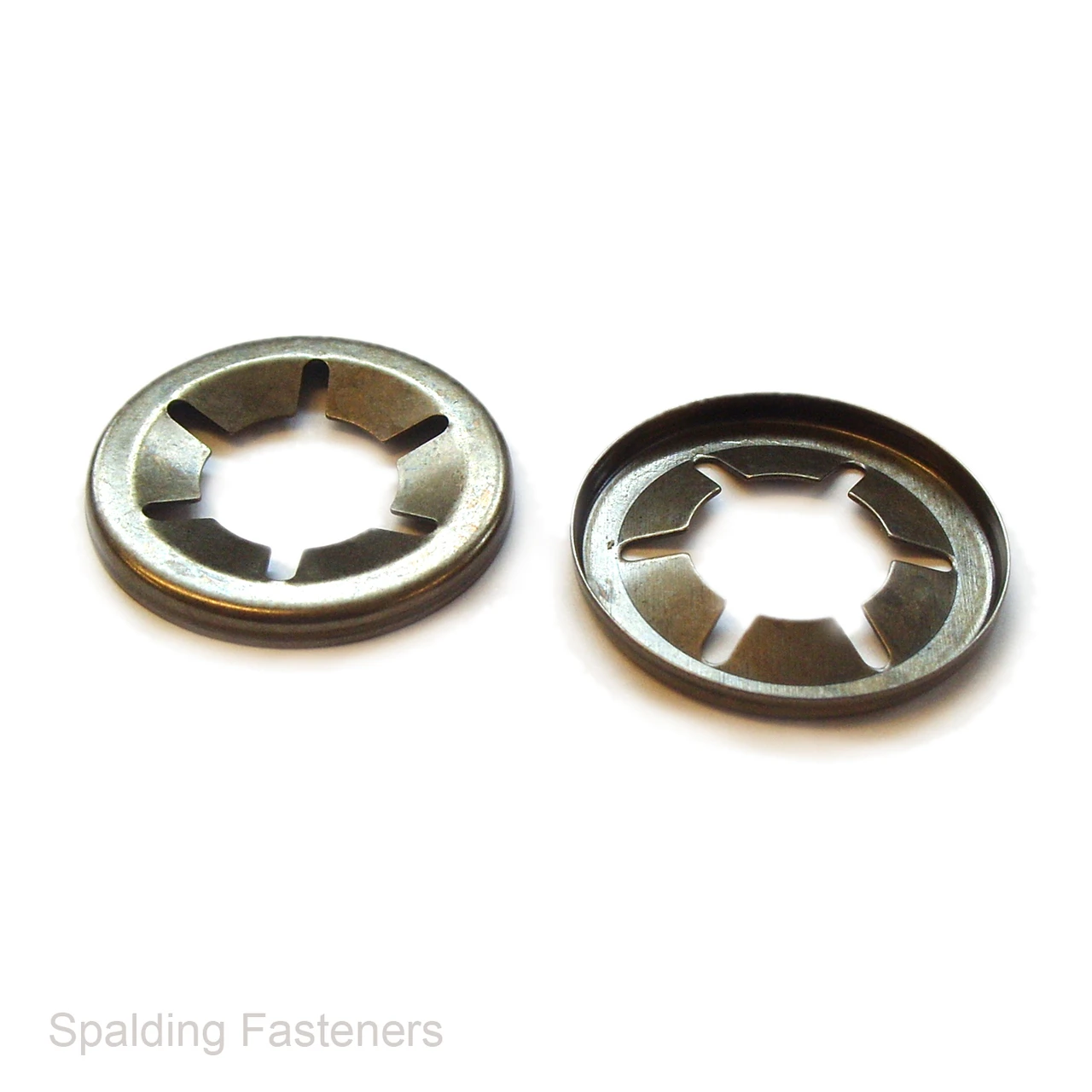

Metric steel push on flat clip star washers for quick retaining and fastening applications on plain shafts, pins, rods and studs. These flower grab style push-on washers are suitable for automotive, engineering, trim, fabrication and general workshop use where a simple press-on retainer is required.
Manufactured from steel, these flat clip star washers are available in sizes from 2.4mm to 24mm. Ideal for use where a fast push-fit retaining washer is needed for assembly, location or light retention without threads.
Please select the required size and pack quantity from the dropdown options. Specifications are intended as a guide only, so if dimensions are critical it is best to check before ordering.
Size Range: 2.4mm to 24mm
Material: Steel
Product Type: Push On Flat Clip / Star Washer
Application: Shafts / Pins / Rods / Studs
Use: Retaining / Push-Fit Fastening
| A | B | C |
| 2.4mm | 7.2mm | 0.8mm |
| 3mm | 9.6mm | 1.2mm |
| 3.2mm | 9.6mm | 1.3mm |
| 4mm | 11.4mm | 1.2mm |
| 5mm | 11.4mm | 1.2mm |
| 6mm | 15.3mm | 1.2mm |
| 8mm | 15.2mm | 1.3mm |
| 10mm | 18.4mm | 2mm |
| 12mm | 26.4mm | 2.1mm |
| 14mm | 26.6mm | 2.3mm |
| 16mm | 28.2mm | 2.4mm |
| 20mm | 36.6mm | 3.6mm |
| 24mm | 41.3mm | 3.2mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
