Product Description

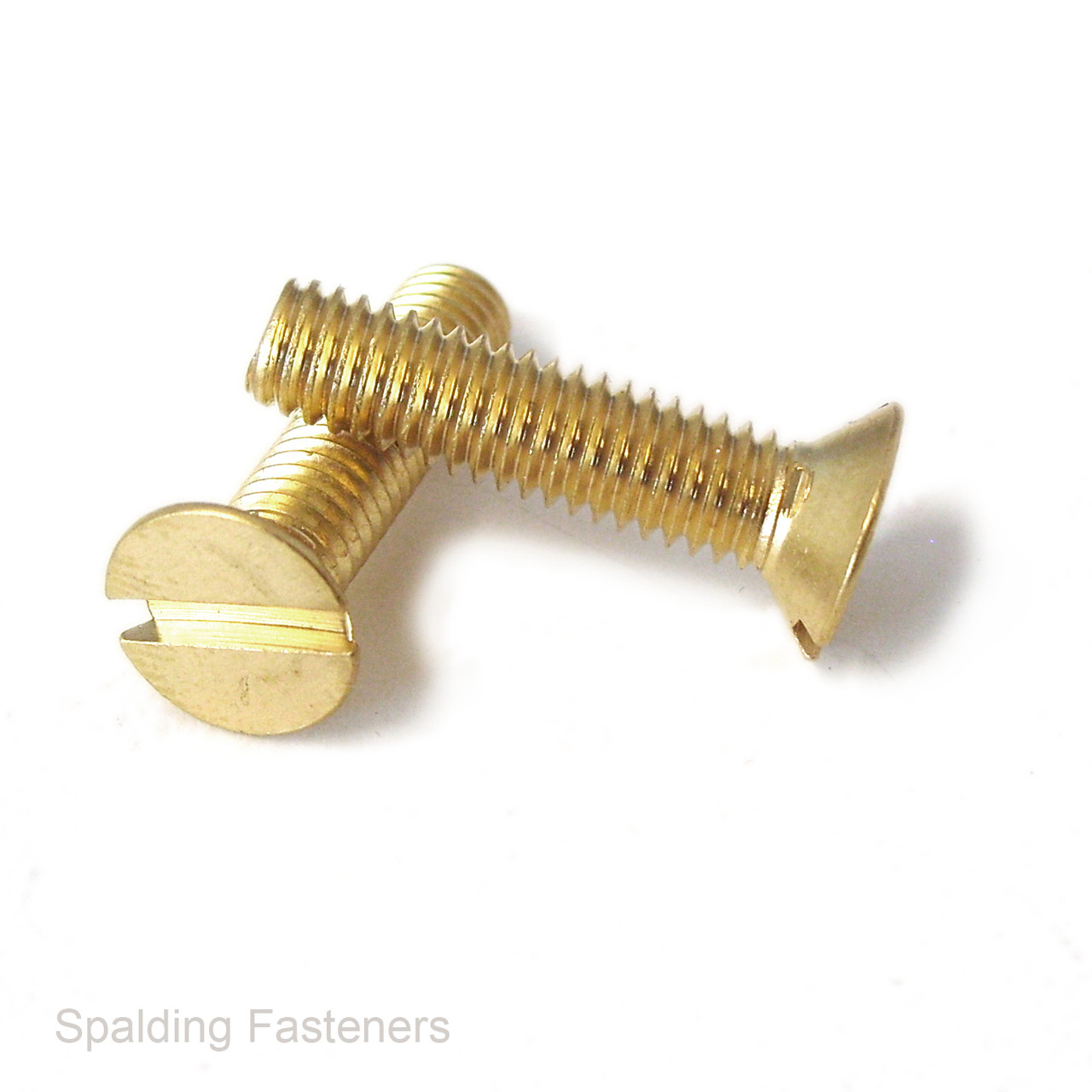

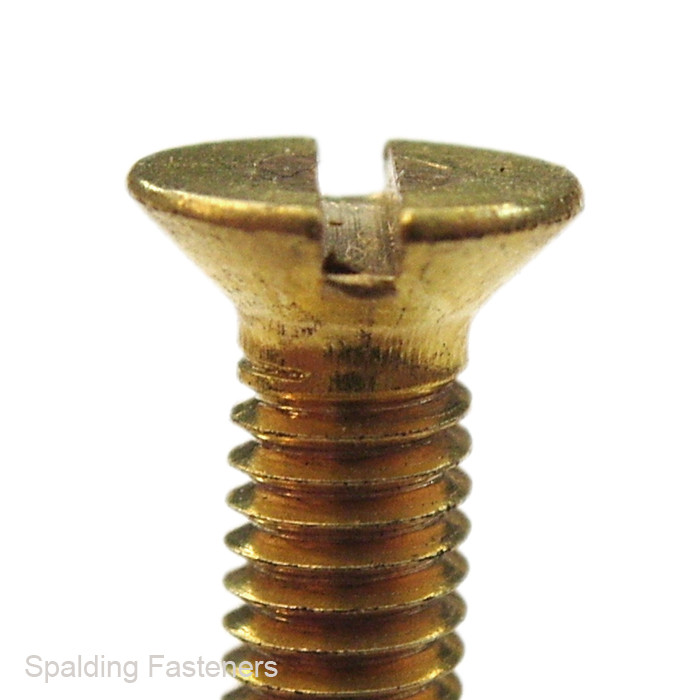

M2 Brass Countersunk Slotted Machine Screws
Solid brass machine screws with an M2 metric coarse thread, flat countersunk head and slotted drive. Suitable for model making, repairs and small assemblies where a flush head and traditional brass appearance are required.
Specifications
| Feature | Specification |
|---|---|
| Thread Size | M2 |
| Thread Pitch | 0.4mm metric coarse |
| Material | Solid brass |
| Head Style | Flat countersunk |
| Drive | Slotted |
| Listed Head Diameter | 3.8mm |
| Listed Head Height | 1.2mm |
Available Lengths
| Thread Size | Overall Length |
|---|---|
| M2 x 0.4mm | 6mm |
| M2 x 0.4mm | 12mm |
Key Features
- Solid brass construction
- Countersunk head sits flush in a suitably prepared recess
- Slotted drive for a matching flat blade screwdriver
- Metric machine thread for compatible nuts and tapped holes
Installation
Measure countersunk screw length over the complete screw, including the head. Use a correctly fitting screwdriver and a matching M2 x 0.4mm nut or tapped hole. Avoid excessive tightening, which can damage the brass head or thread.
DIN 963 pattern. Full manufacturing compliance with DIN 963
Useful Links
Specifications are intended as a guide. Confirm the required thread, overall length and head dimensions before ordering.
