Product Description

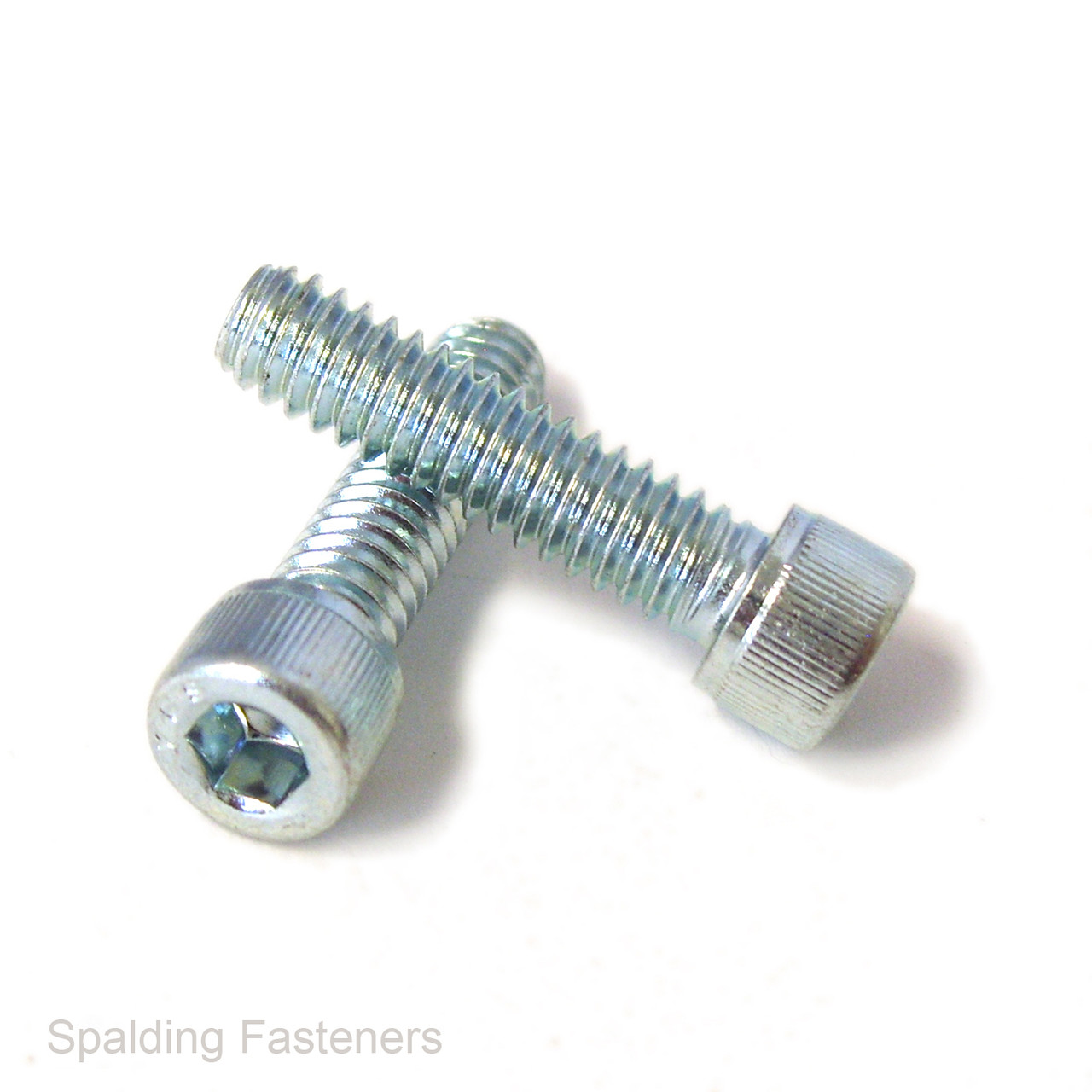

M5 Grade 12.9 Zinc Plated Socket Cap Screws DIN 912
M5 high tensile steel socket cap screws in grade 12.9 with a bright zinc plated finish. Supplied fully threaded, these screws feature a cylindrical cap head and internal hexagon socket for installation with a 4mm Allen key.
Specifications
| Specification | Details |
|---|---|
| Thread Size | M5 |
| Thread Pitch | 0.8mm metric coarse |
| Material | High tensile steel |
| Property Class | 12.9 |
| Finish | Bright zinc plated |
| Head Type | Socket cap |
| Allen Key Size | 4mm |
| Thread Coverage | Fully threaded |
| Listed Standard | DIN 912 |
Available Lengths
- M5 x 6mm
- M5 x 10mm
- M5 x 14mm
- M5 x 16mm
- M5 x 20mm
- M5 x 25mm
Key Features
- Grade 12.9 high tensile steel
- Bright zinc plated finish
- Fully threaded metric coarse shank
- Internal hexagon socket drive
- DIN 912 socket cap design
Supplied as DIN 912 socket head cap screws. BS EN ISO 4762 is the corresponding British-adopted standard for this product type; separate compliance with that standard is not confirmed for this stock.
Installation
Length is measured from beneath the head to the tip. Use a fully seated 4mm hexagon key and follow the tightening specification for the joint, allowing for the plated finish and any lubrication.
Useful Links
Specifications are intended as a guide. Confirm the required length, thread and head clearance before ordering.
| A | B | C | D | E | F |
| 5mm | 10mm | 22mm | 10mm | 4mm | 0.8MM |
| 5mm | 6mm | 22mm | 10mm | 4mm | 0.8MM |
| 5mm | 14mm | 22mm | 10mm | 4mm | 0.8MM |
| 5mm | 16mm | 22mm | 10mm | 4mm | 0.8MM |
| 5mm | 20mm | 22mm | 10mm | 4mm | 0.8MM |
| 5mm | 25mm | 22mm | 10mm | 4mm | 0.8MM |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
