Product Description

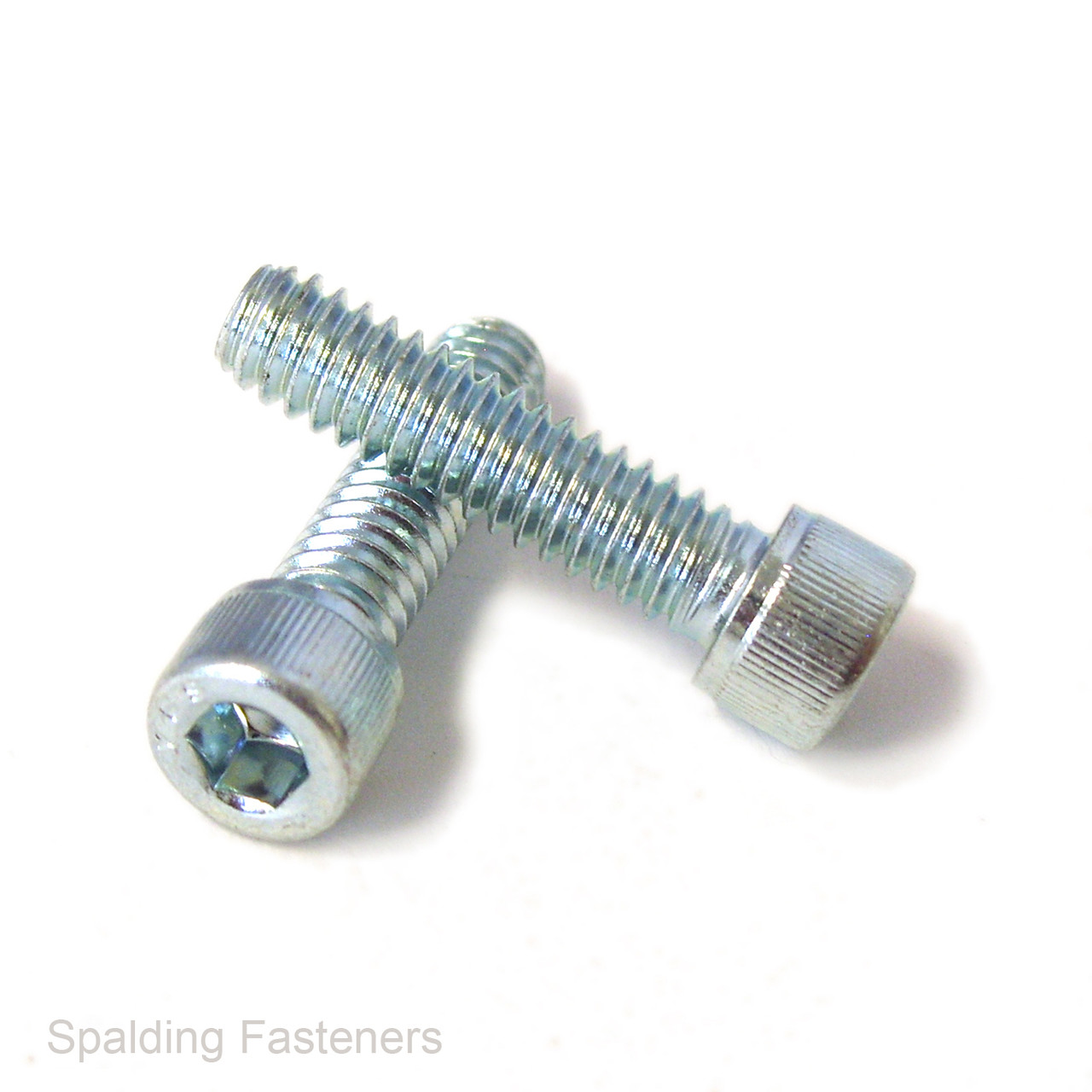

M10 Grade 12.9 Zinc Plated Steel Socket Cap Set Screws
M10 high tensile Grade 12.9 steel socket cap set screws with a zinc plated finish. These fully threaded screws have a 1.5mm metric coarse pitch and a cylindrical head with an internal hexagon drive.
Available Sizes
| Thread Size | Length | Thread Pitch |
|---|---|---|
| M10 | 16mm | 1.5mm |
| M10 | 20mm | 1.5mm |
| M10 | 25mm | 1.5mm |
| M10 | 30mm | 1.5mm |
| M10 | 35mm | 1.5mm |
| M10 | 40mm | 1.5mm |
Screw length is measured from beneath the head to the end of the screw.
Key Features
- Grade 12.9 high tensile steel
- Zinc plated finish
- M10 metric coarse thread with 1.5mm pitch
- Fully threaded shank
- Cylindrical socket cap head
- Internal hexagon drive for use with an Allen key or hex bit
DIN 912 and BS EN ISO 4762 are dimensional references for this socket cap screw type. Please contact us before ordering to confirm compliance certification availability.
Use with matching M10 coarse nuts or tapped holes. Select a length that provides sufficient thread engagement without bottoming out in a blind hole.
Related Products
Specifications are intended as a guide. Confirm the required length, thread pitch and strength grade before ordering.
