Product Description

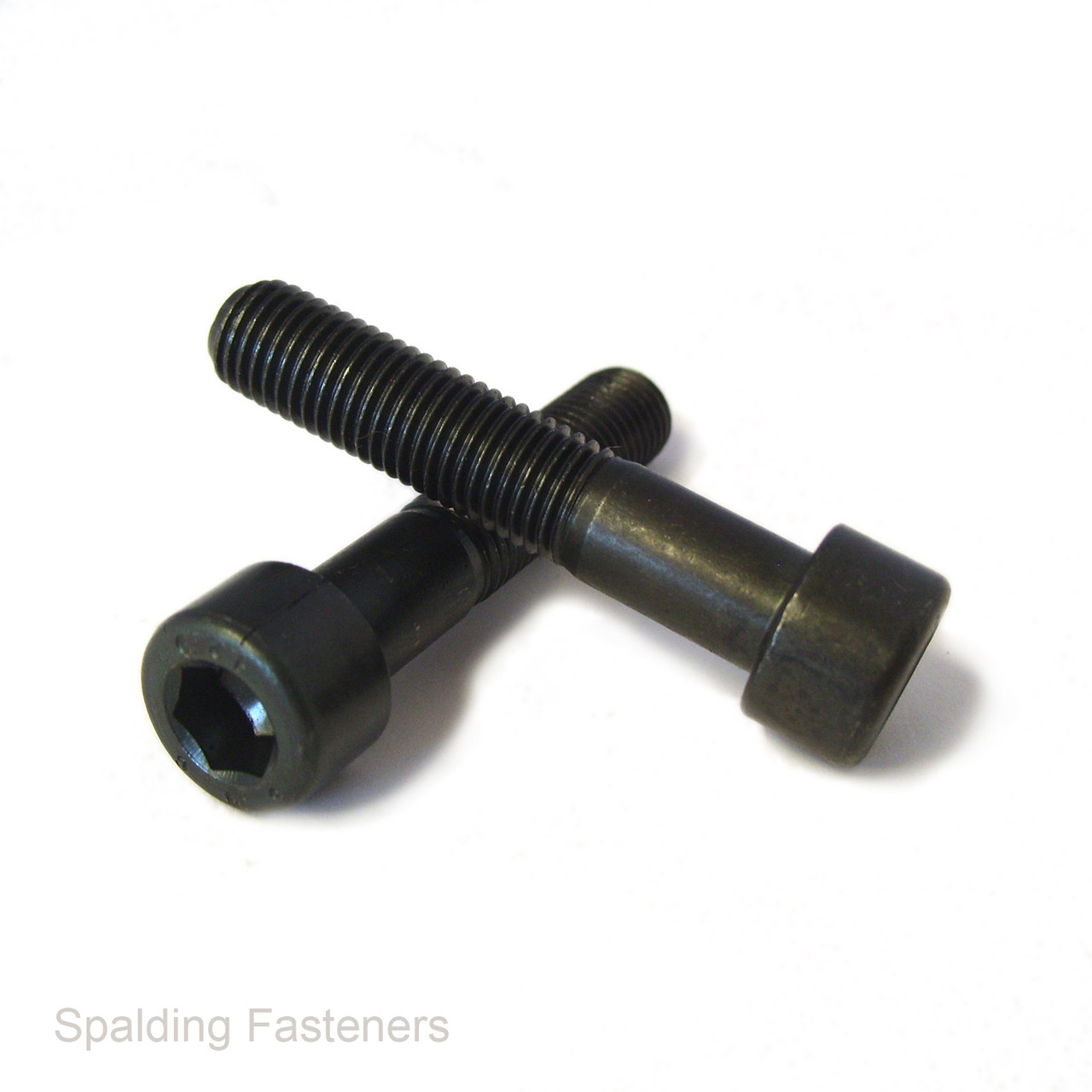

M10 x 1 Metric Extra Fine Grade 12.9 Self Colour Socket Cap Bolts
Grade 12.9 high tensile steel socket cap bolts with an M10 x 1 metric extra fine thread. These part threaded bolts have a plain shank beneath the head and a self colour, unplated finish.
Bolt length is measured from beneath the head to the tip.
Key Features
- Grade 12.9 high tensile steel
- Self colour, unplated finish
- M10 thread with a 1mm pitch
- Part threaded with a plain shank
- Cylindrical socket cap head with an 8mm hex socket
- Listed head diameter: 15.7mm
- Listed head height: 10mm
DIN 912 provides a reference for the socket cap head style. Please contact us before ordering to confirm compliance certification availability.
Use with matching M10 x 1 nuts or tapped holes. Protect the unplated steel from moisture where corrosion resistance is required.
Related Products
Specifications are intended as a guide. Confirm the required length, 1mm thread pitch and shank dimensions before ordering.
| A | B | C | D | E | F | G | H |
| 10mm | 50mm | 32mm | 15.7mm | 10mm | 8mm | 1 | 18mm |
| 10mm | 60mm | 32mm | 15.7mm | 10mm | 8mm | 1 | 28mm |
| 10mm | 45mm | 32mm | 15.7mm | 10mm | 8mm | 1 | 13mm |
| 10mm | 70mm | 32mm | 15.7mm | 10mm | 8mm | 1 | 38mm |
| 10mm | 90mm | 32mm | 15.7mm | 10mm | 8mm | 1 | 58mm |
| 10mm | 100mm | 32mm | 15.7mm | 10mm | 8mm | 1 | 68mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
