Product Description

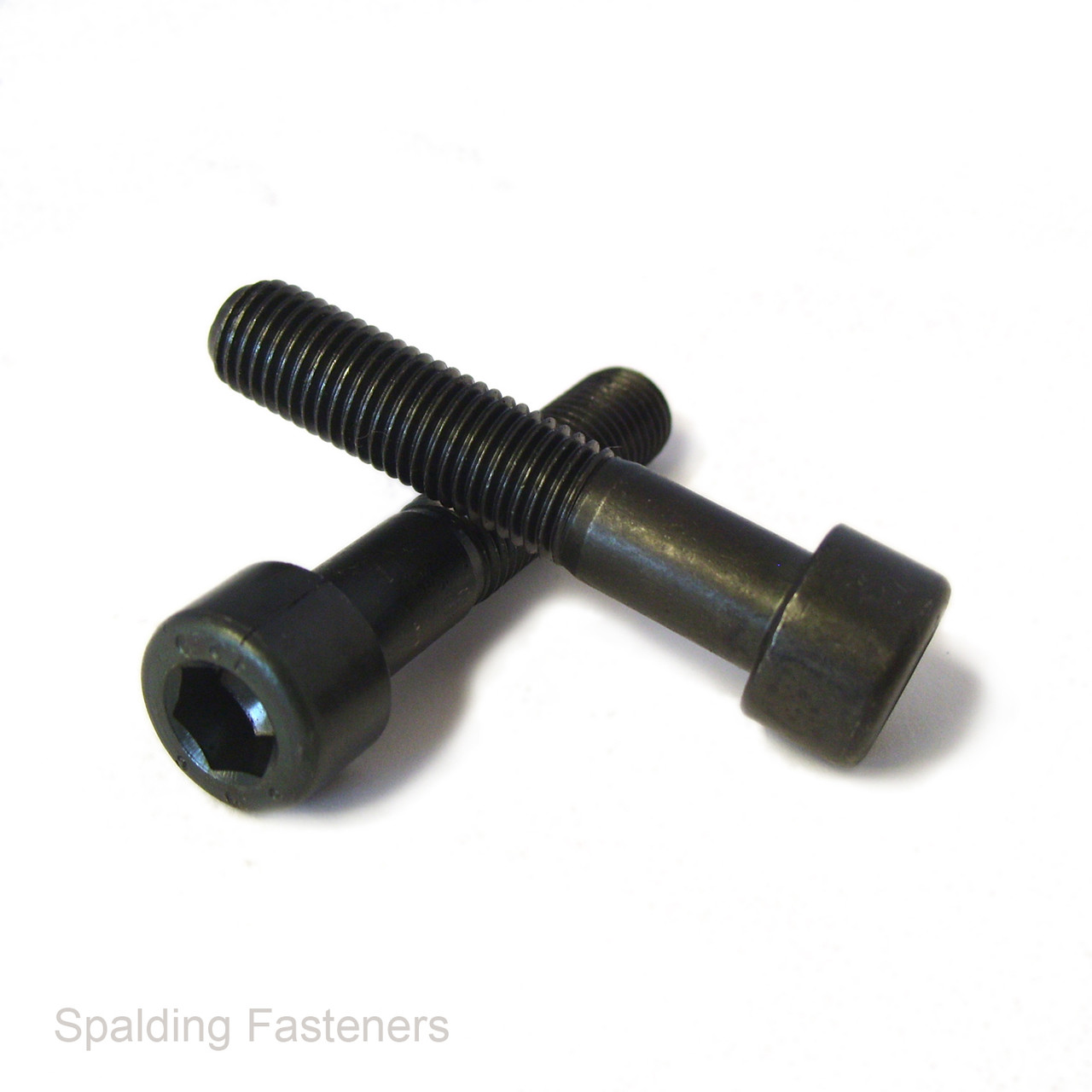

M12 Grade 12.9 Self Colour Socket Cap Bolts – Part Threaded
M12 high tensile socket cap bolts manufactured from property class 12.9 steel with a self colour finish. These part threaded bolts feature a plain shank beneath the head and an M12 × 1.75mm metric coarse thread.
The cylindrical socket cap head takes a 10mm Allen key or hexagon driver bit, allowing installation where access around the head is limited. Suitable for machinery, tooling and mechanical assemblies requiring a high strength metric fastener.
Specifications
| Thread size | M12 |
|---|---|
| Nominal diameter | 12mm |
| Thread pitch | 1.75mm – metric coarse |
| Thread direction | Right hand |
| Material | High tensile steel |
| Property class | 12.9 |
| Finish | Self colour / black oxide |
| Thread coverage | Part threaded with a plain shank |

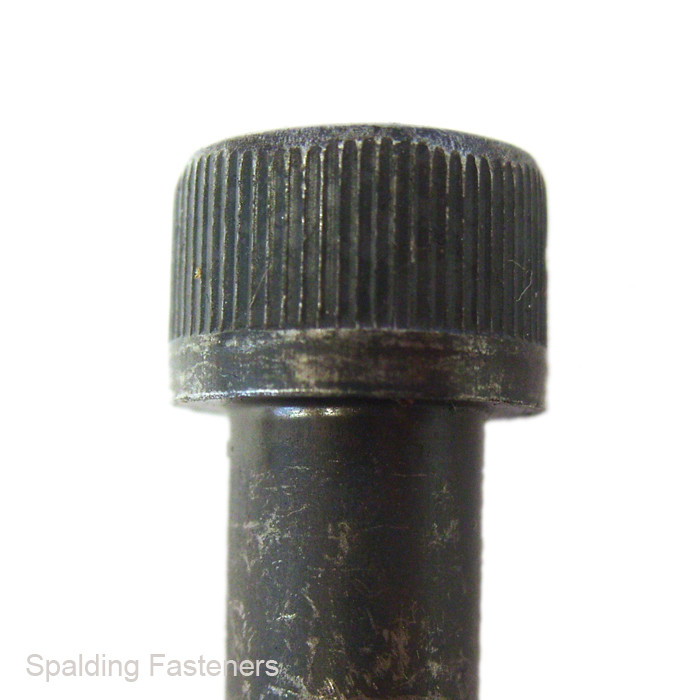

| Head style | Cylindrical socket cap head |
| Drive size | 10mm hexagon socket / Allen key |
| Head diameter | 18mm maximum |
| Head height | 12mm maximum |
| Length measurement | Measured from beneath the head to the tip |
| Lengths and pack quantities | Select from the available product options |
Key Features
- Property class 12.9 high tensile steel construction.
- Part threaded design with an unthreaded shank.
- M12 × 1.75mm standard metric coarse thread.
- 10mm internal hexagon drive.
- DIN 912 / ISO 4762 socket cap dimensions.
Typical Applications
Suitable for machine building, tooling, equipment maintenance, brackets, fixtures and mechanical assemblies where an M12 high tensile socket cap bolt with a plain shank is specified.
Installation
Use a correctly fitting 10mm Allen key or hexagon driver bit. Ensure that the selected length provides sufficient thread engagement and that the plain shank suits the joint thickness. For tapped blind holes, check that the bolt cannot bottom out before the joint is clamped.
Apply a tightening torque appropriate to the fastener, mating material, lubrication and joint design. Self colour steel requires suitable protection where exposed to moisture.
Ordering
Select your required bolt length and pack quantity from the available options. Bolt length excludes the head. Check the required shank and threaded lengths where these are critical to the assembly.
Standards
- DIN 912 / ISO 4762 – hexagon socket head cap screws.
- ISO 898-1 – mechanical properties, property class 12.9.
