Product Description

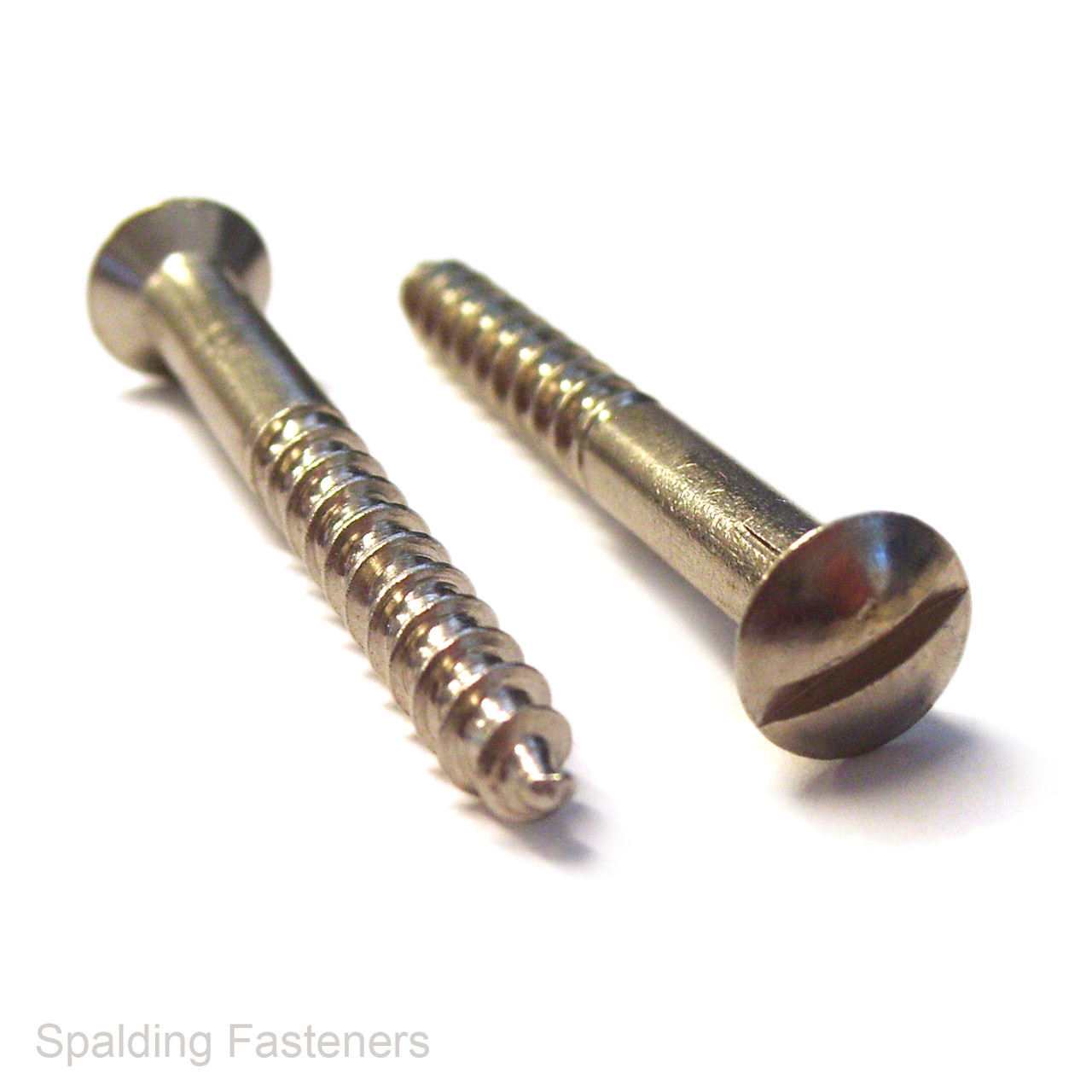

No.8 (4mm) A2 Stainless Steel Raised Countersunk Slotted Woodscrews – DIN 95
No.8 raised countersunk slotted woodscrews manufactured from A2 stainless steel to DIN 95. The head combines a countersunk underside with a gently domed top, providing a traditional decorative finish for visible timber fixings.
Suitable for furniture, joinery and attaching compatible hinges, handles and other fittings to wood. A2 stainless steel offers corrosion resistance, while the slotted drive allows installation with a correctly sized flat-bladed screwdriver. Select your required length and pack size from the available options.
Technical Specifications
| Screw Size | No.8 / 4.0mm nominal diameter |
|---|---|
| Material | A2 stainless steel |
| Standard | DIN 95 |

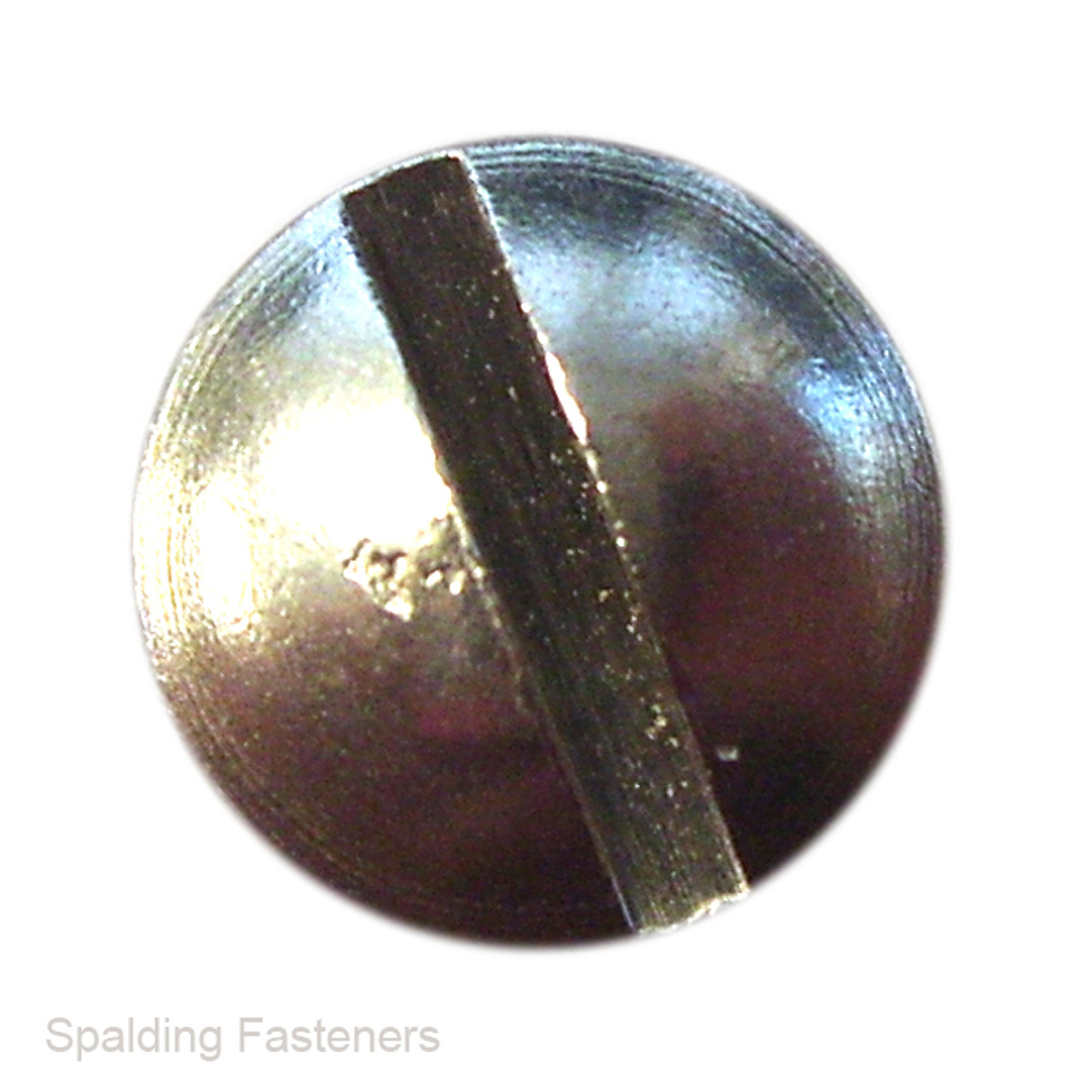

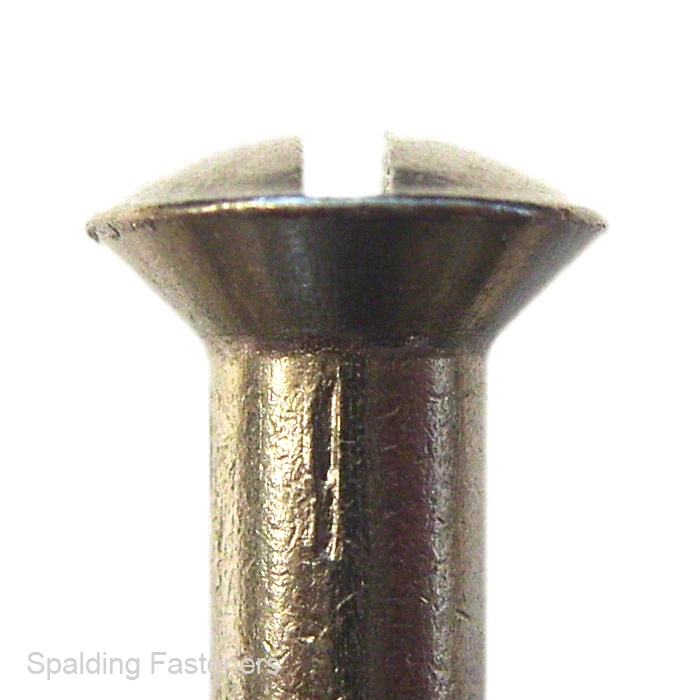

| Head Style | Raised countersunk / oval head |
| Drive | Slotted |
| Thread Type | Wood screw thread |
| Head Diameter (dk) | 7.05–7.95mm |
| Countersunk Head Height (k) | 2.20mm maximum, excluding raised dome |
| Raised Dome Height (f) | 1.00mm |
| Plain Shank Diameter (ds) | 3.52–4.00mm |
| Slot Width (n) | 1.00mm nominal |
| Slot Depth (t) | 1.60mm minimum |
| Threaded Length (b) | 0.6 × nominal screw length (L) |
| Length Options | Select from the available lengths |
Measuring Your Screw
Nominal length (L) includes the countersunk portion of the head but excludes the raised dome. Measure from the point where the dome meets the countersunk head to the tip of the screw.
Installation Advice
Use a screwdriver blade that fits the slot closely. Drill a suitable pilot hole where needed, particularly in hardwood or near timber edges, to help prevent splitting and ease installation. The raised dome remains visible above the countersunk seating.
Please note: Dimensions are based on the supplier's DIN 95 specification and are provided as a guide. Please contact us if measurements are critical to your application.
