Product Description

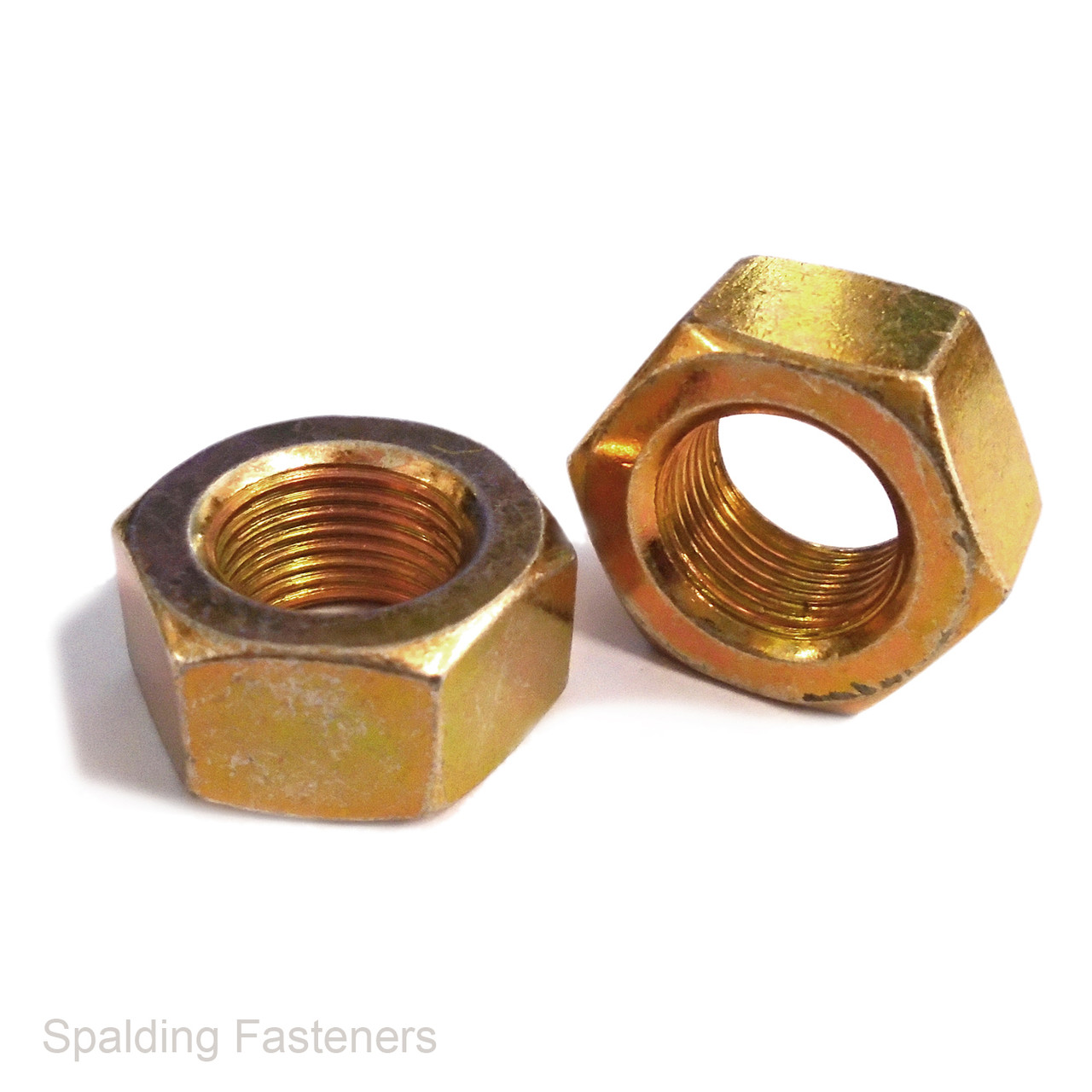

Metric Super Fine Yellow Zinc Plated Steel Hexagon Full Nuts – DIN 934
Metric fine and super fine thread hexagon full nuts manufactured from steel with a yellow zinc plated finish to DIN 934. The hexagonal shape allows tightening with a suitable spanner or socket, while the zinc coating provides corrosion protection.
Suitable for machinery, maintenance and general engineering applications requiring matching fine pitch fasteners. Select your required thread diameter, pitch and pack quantity from the available options.
Technical Specifications
| Material | Steel |
|---|---|
| Finish | Yellow zinc plated |
| Standard | DIN 934 |
| Nut Type | Hexagon full nut |
| Thread Type | Metric fine / super fine, depending on selected size and pitch |
Thread Sizes & Dimensions
All dimensions are in millimetres. Check both the thread diameter and pitch before ordering.
| Thread Size | Thread Pitch | Spanner Size / Across Flats | Nut Height |
|---|---|---|---|
| M12 | 1.0 | 19 | 10 |
| M16 | 1.5 | 24 | 13 |
| M18 | 1.5 | 27 | 15 |
| M18 | 2.0 | 27 | 15 |
| M20 | 1.5 | 30 | 16 |
| M20 | 2.0 | 30 | 16 |
| M22 | 1.5 | 32 | 18 |
| M22 | 2.0 | 32 | 18 |
| M24 | 1.5 | 36 | 19 |
| M24 | 2.0 | 36 | 19 |
| M27 | 1.5 | 40 | 22 |
| M27 | 2.0 | 40 | 22 |
| M30 | 1.5 | 46 | 24 |
| M30 | 2.0 | 46 | 24 |
Thread Compatibility
These nuts must be used with bolts, screws or threaded bar of the same diameter and pitch. For example, an M12 x 1mm nut requires an M12 x 1mm external thread. It will not fit an M12 coarse thread or another M12 fine pitch.
Please note: Dimensions are provided as a guide. Please contact us if measurements or the nut property class are critical to your application.
