Product Description

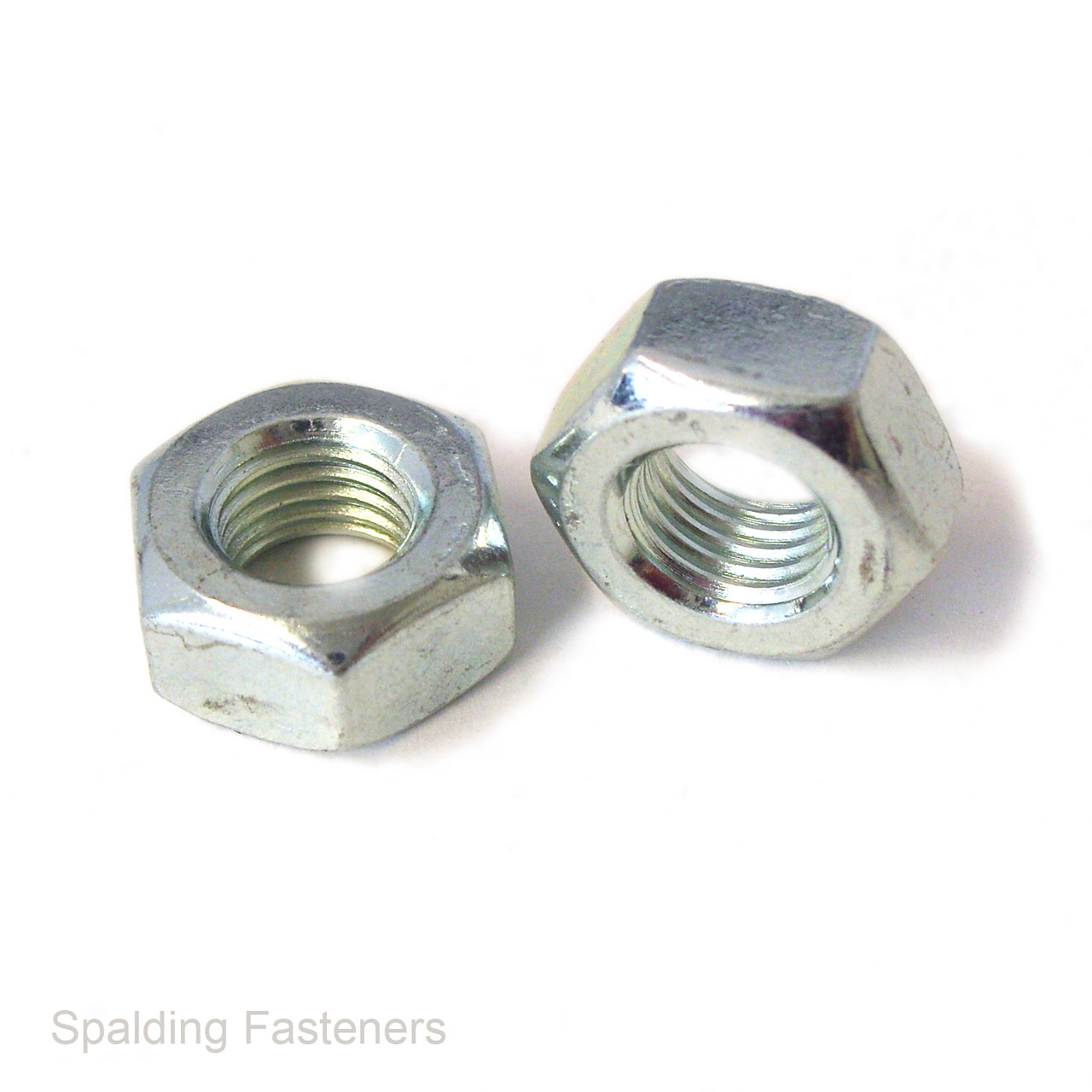

Metric coarse Grade 8 zinc plated steel hexagon full nuts to DIN 934, suitable for use with metric coarse bolts, set screws, threaded rod and studs.
These high tensile full-height hexagon nuts are zinc plated for general corrosion resistance and are commonly used across engineering, machinery, automotive, fabrication and maintenance applications. The standard hexagon shape allows fitting with spanners, sockets and other standard hand tools.
- Metric coarse thread hexagon full nuts
- Grade 8 / Class 8 high tensile steel
- Zinc plated finish for general corrosion resistance
- DIN 934 standard hex full nut pattern
- Suitable for metric bolts, set screws, studs and threaded bar
- Available in sizes from M3 to M24
| A | B | C | D |
| 3mm | 5.5mm | 2.4mm | 0.5 |
| 4mm | 7mm | 3.2mm | 0.7 |
| 5mm | 8mm | 4mm | 0.8 |
| 6mm | 10mm | 5mm | 1 |
| 7mm | 11mm | 5.2mm | 1 |
| 8mm | 13mm | 6.5mm | 1.25 |
| 10mm | 17mm | 8mm | 1.5 |
| 12mm | 19mm | 10mm | 1.75 |
| 14mm | 22mm | 11mm | 2 |
| 16mm | 24mm | 13mm | 2 |
| 18mm | 27mm | 15mm | 2.5 |
| 20mm | 30mm | 16mm | 2.5 |
| 24mm | 36mm | 19mm | 3 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
