Product Description

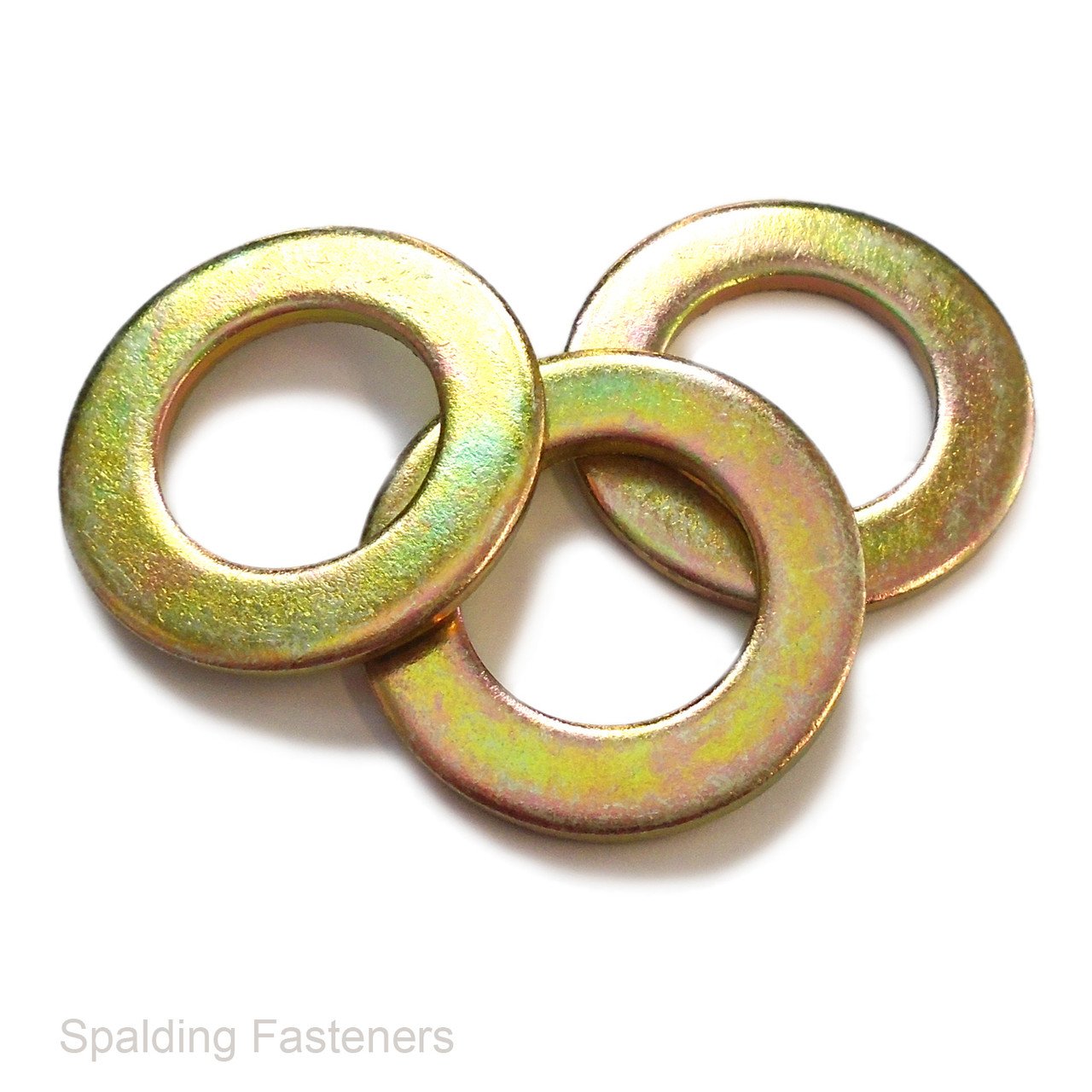

Metric Yellow Zinc Plated Steel Form A Flat Washers DIN 125A
Metric Form A flat washers manufactured from steel with a yellow zinc plated finish. These plain washers provide a bearing surface beneath nuts, bolt heads and screw heads, helping distribute the clamping load and protect the surface being fastened.
The zinc plating and yellow passivation provide corrosion protection, making these washers suitable for general assembly, maintenance and engineering applications.
Technical Specifications
| Washer Type | Form A flat washer |
|---|---|
| Standard Reference | DIN 125A |
| Material | Steel |
| Finish | Zinc plated with yellow passivation |
| Size System | Metric |
| Available Sizes | M6, M8, M10, M12, M14, M16 and M20 |
Dimensions
| Nominal Bolt Size | Internal Diameter | External Diameter | Thickness |
|---|---|---|---|
| M6 | 6.4mm | 12mm | 1.6mm |
| M8 | 8.4mm | 16mm | 1.6mm |
| M10 | 10.5mm | 20mm | 2mm |
| M12 | 13mm | 24mm | 2.5mm |
| M14 | 15mm | 28mm | 2.5mm |
| M16 | 17mm | 30mm | 3mm |
| M20 | 21mm | 37mm | 3mm |
Selecting Your Washer
Choose the nominal size to match your bolt or screw. For example, an M10 washer has a 10.5mm clearance hole for an M10 fastener. Select the required size and pack quantity from the available options.
Please note: Dimensions are nominal reference values and subject to manufacturing tolerances. Please contact us before ordering if measurements are critical to your application.
