Product Description

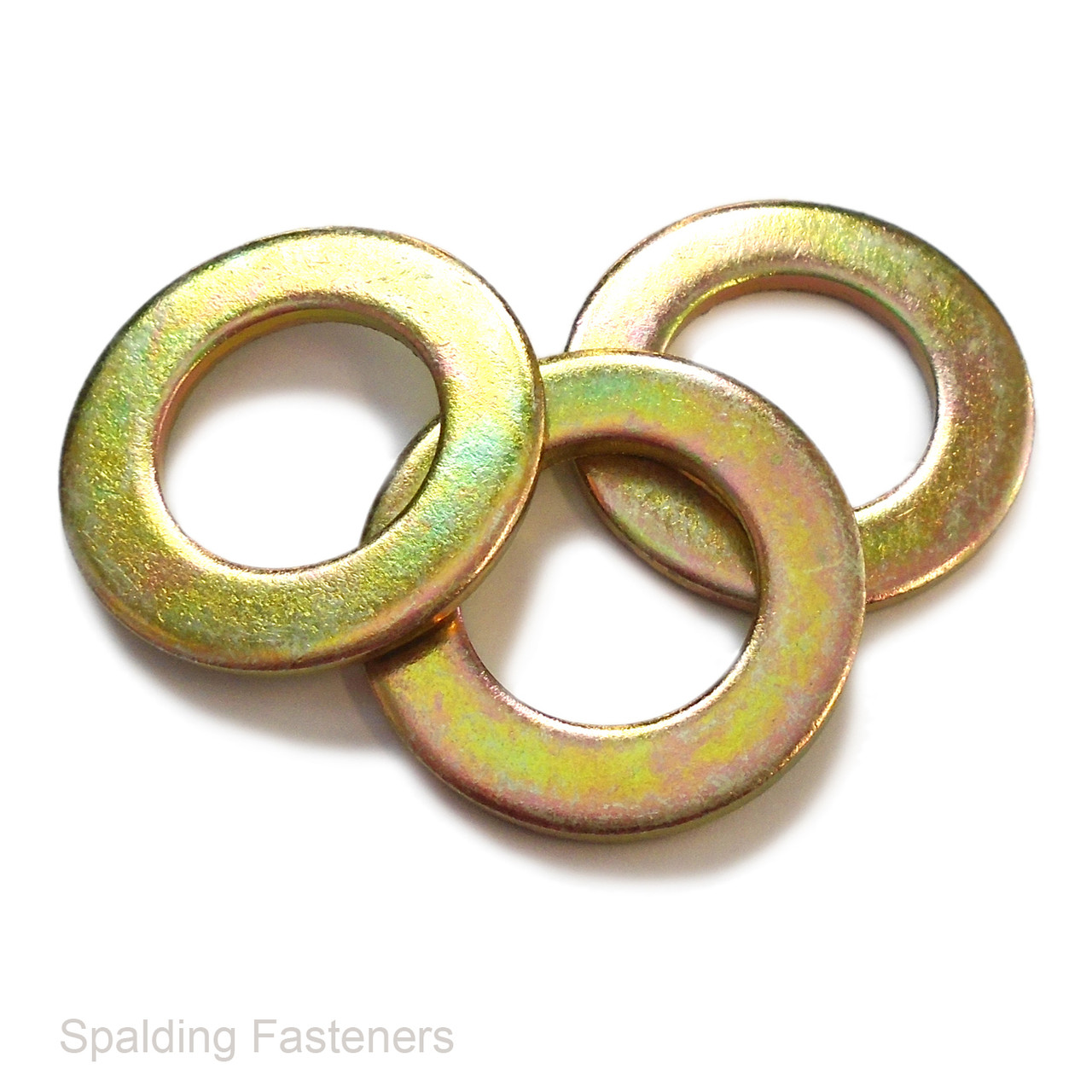

630 Assorted Yellow Zinc Plated Form A Flat Washers – M6 to M14
A practical assortment of 630 steel flat washers covering five metric sizes. The Form A profile provides a bearing surface beneath a nut or bolt head, helping distribute the clamping load across the joint.
Specifications
- Material: steel.
- Finish: yellow zinc plated.
- Type: Form A flat washers.
- Standard: DIN 125 A.
- Sizes included: M6, M8, M10, M12 and M14.
- Total quantity: 630 washers.
Included Sizes & Dimensions
All dimensions are nominal and shown in millimetres. The M size identifies the matching bolt or screw diameter.
| Nominal Size | Internal Diameter | External Diameter | Thickness |
|---|---|---|---|
| M6 | 6.4 | 12 | 1.6 |
| M8 | 8.4 | 16 | 1.6 |
| M10 | 10.5 | 20 | 2.0 |
| M12 | 13 | 24 | 2.5 |
| M14 | 15 | 28 | 2.5 |
Packaging Options

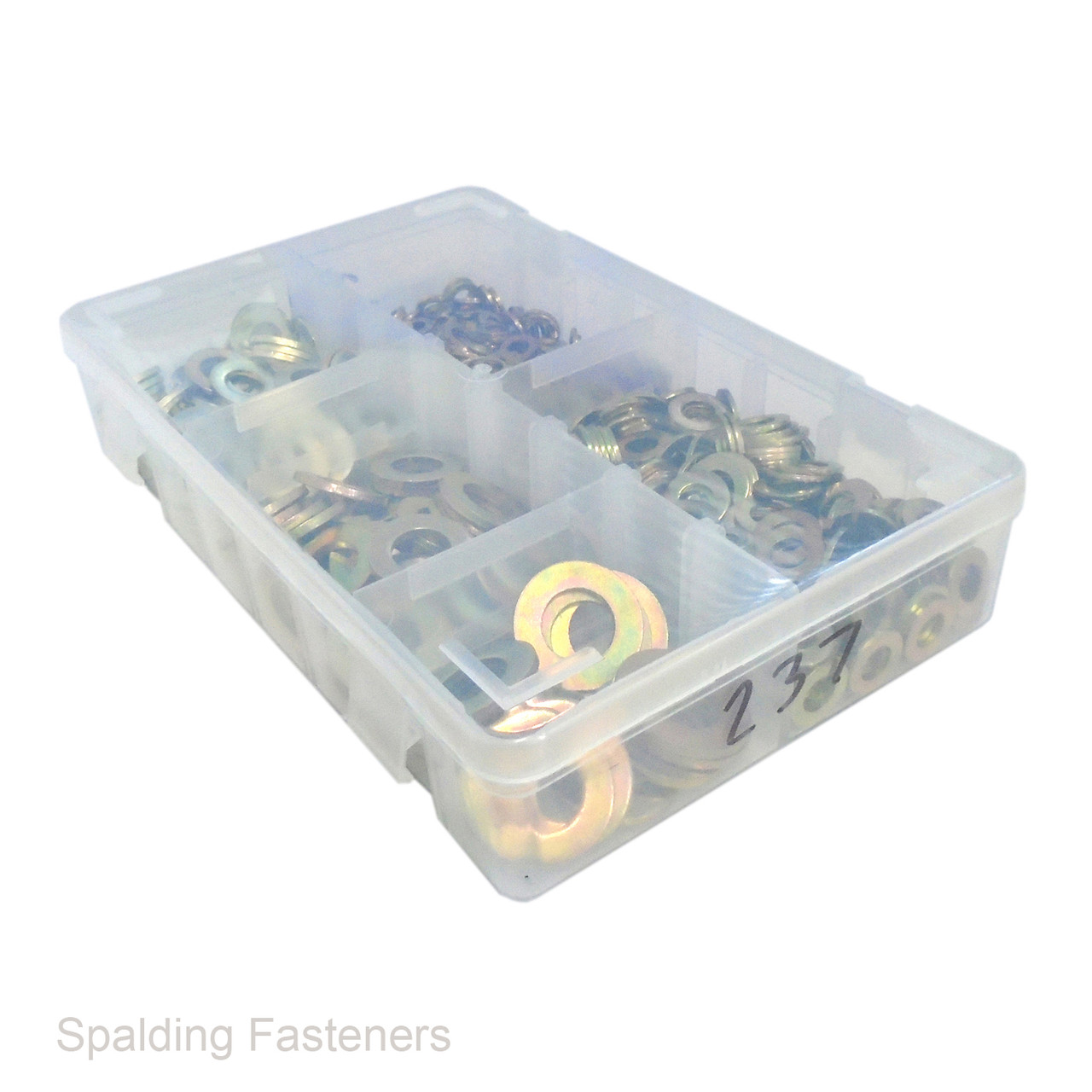

- Boxed set: complete assortment supplied in a storage box.
- Refill pack: supplied without a box, with the sizes sealed in separate compartments.
Choosing the Correct Size
Select the washer to match the nominal fastener diameter and check that its external diameter suits the available bearing surface. For example, an M10 washer has a 10.5mm bore to provide clearance around an M10 fastener.
