Product Description

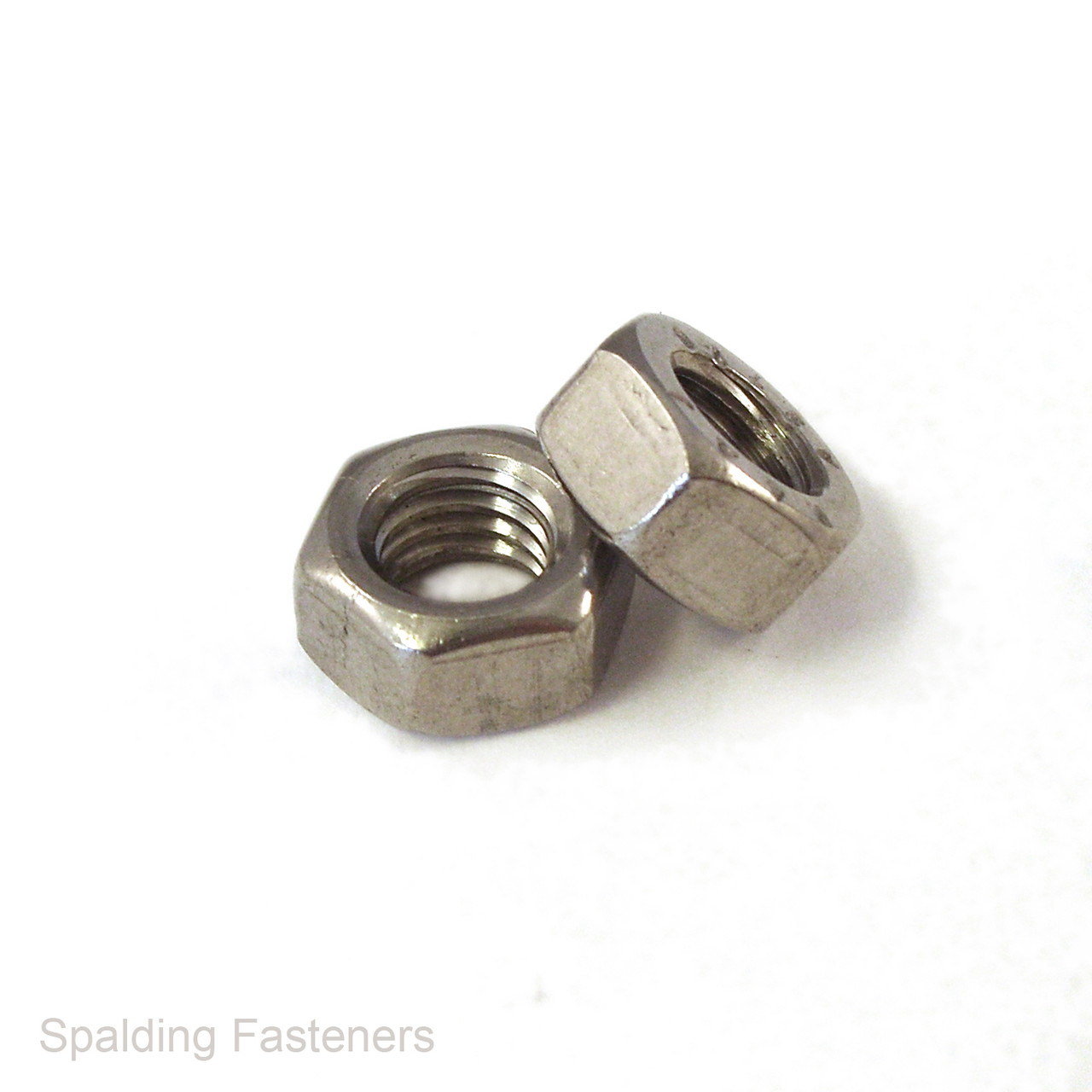

Metric coarse A2 stainless steel hexagon full nuts to DIN 934, suitable for use with metric coarse bolts, set screws, machine screws, threaded rod and studs.
These standard full-height hexagon nuts are manufactured from A2 stainless steel, also known as 304 stainless steel, offering good corrosion resistance for general engineering, automotive, machinery, maintenance and outdoor fastening applications.
- Metric coarse thread hexagon full nuts
- A2 stainless steel, also known as 304 stainless steel
- DIN 934 standard hex full nut pattern
- Suitable for metric bolts, machine screws, set screws, studs and threaded bar
- Available in sizes from M1 to M24
- Ideal for engineering, automotive, machinery and general fastening use
| A | B | C | D |
| 1.6mm | 3.2mm | 1.3mm | 0.35 |
| 1mm | 2.5mm | 0.8mm | 0.25 |
| 2.5mm | 5mm | 2mm | 0.45 |
| 2mm | 4mm | 1.6mm | 0.4 |
| 3mm | 5.5mm | 2.4mm | 0.5 |
| 3.5mm | 6mm | 2.8mm | 0.6 |
| 4mm | 7mm | 3.2mm | 0.7 |
| 5mm | 8mm | 4mm | 0.8 |
| 6mm | 10mm | 5mm | 1 |
| 7mm | 11mm | 5.2mm | 1 |
| 8mm | 13mm | 6.5mm | 1.25 |
| 10mm | 17mm | 8mm | 1.5 |
| 12mm | 19mm | 10mm | 1.75 |
| 14mm | 22mm | 11mm | 2 |
| 16mm | 24mm | 13mm | 2 |
| 20mm | 30mm | 16mm | 2.5 |
| 22mm | 32mm | 18mm | 2.5 |
| 24mm | 36mm | 19mm | 3 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
