Product Description

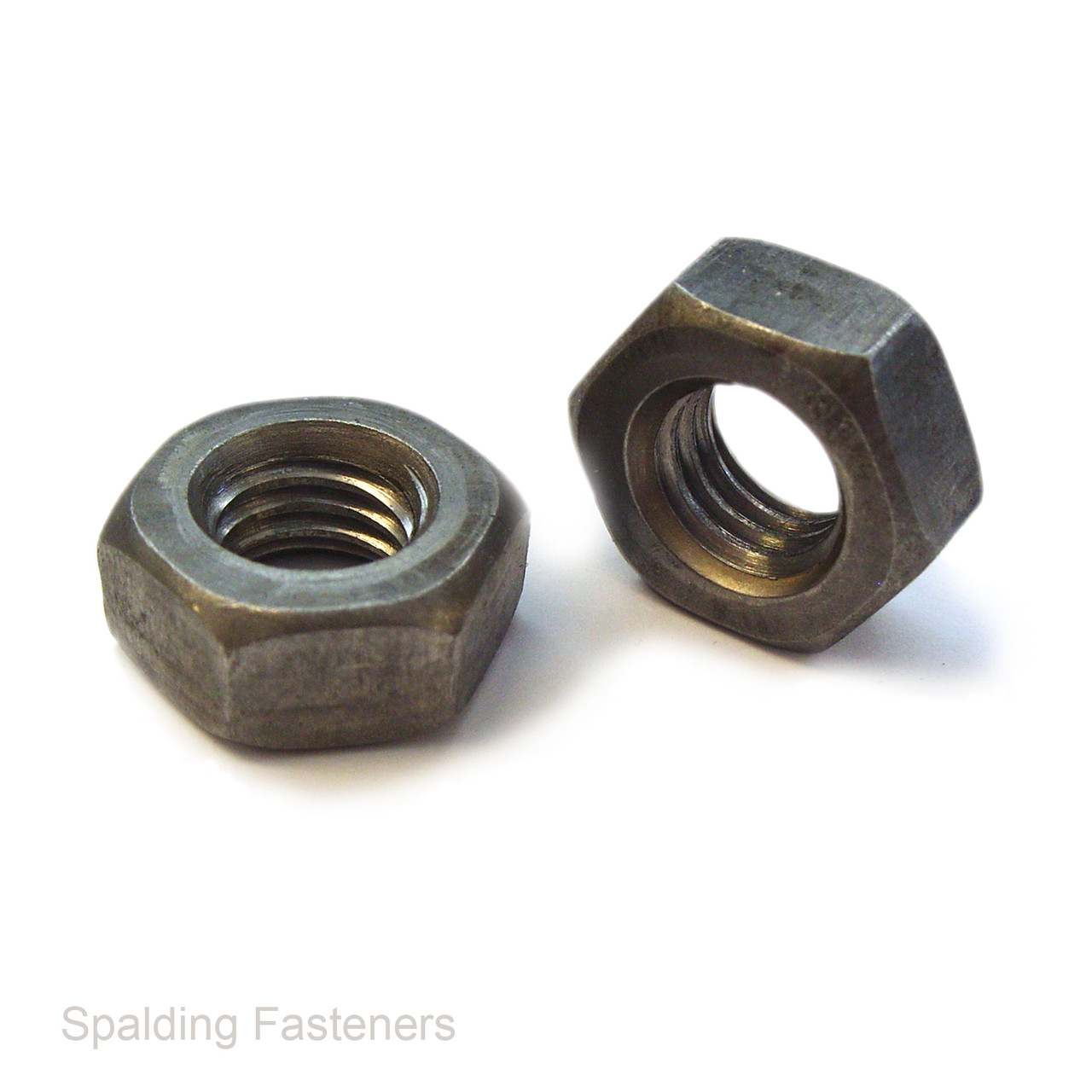

Metric coarse Grade 8 steel hexagon full nuts to DIN 934, suitable for use with metric coarse bolts, set screws, threaded rod and studs.
These high tensile self colour steel full nuts are a standard full-height hexagon nut pattern, commonly used across engineering, machinery, automotive, fabrication and maintenance applications. The self colour finish is supplied without a plated coating and is suited to applications where additional corrosion protection is not required or will be applied separately.
- Metric coarse thread hexagon full nuts
- Grade 8 / Class 8 high tensile steel
- Self colour, unplated finish
- DIN 934 standard hex full nut pattern
- Suitable for metric bolts, set screws, studs and threaded bar
- Available in sizes from M6 to M24
| A | B | C | D |
| 6mm | 10mm | 5mm | 1 |
| 8mm | 13mm | 6.5mm | 1.25 |
| 10mm | 17mm | 8mm | 1.5 |
| 12mm | 19mm | 10mm | 1.75 |
| 14mm | 22mm | 11mm | 2 |
| 16mm | 24mm | 13mm | 2 |
| 20mm | 30mm | 16mm | 2.5 |
| 24mm | 36mm | 19mm | 3 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
