Product Description

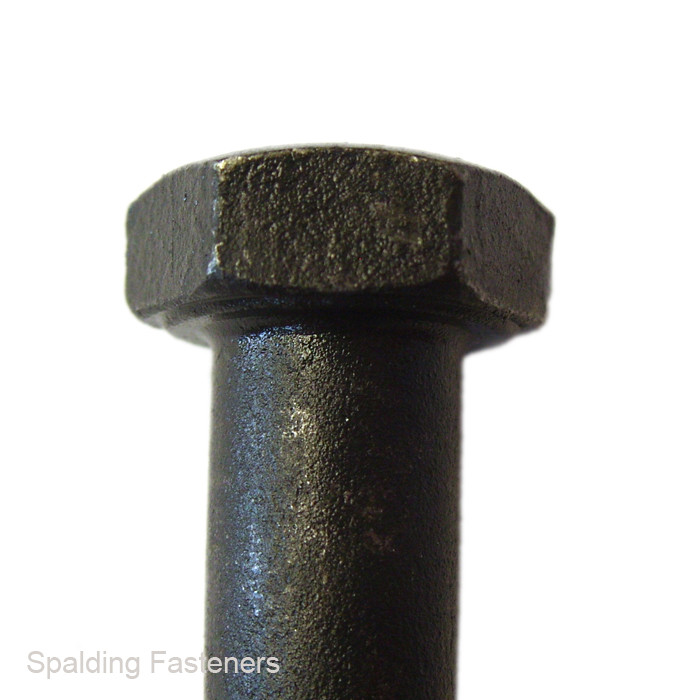

7/16" UNC Grade 5 Self Colour Hex Head Part Threaded Bolts
These 7/16" UNC Grade 5 steel hex head bolts feature a partially threaded shank, with a plain section beneath the head. They are suitable for assemblies requiring an unthreaded section through the joined components.
The external hexagon head allows tightening with a 5/8" spanner or socket. Supplied in a self colour finish without added protective plating, these bolts may require additional corrosion protection where moisture is present.
Technical Specifications
| Thread Size | 7/16" UNC |
|---|---|
| Nominal Thread Diameter | 7/16" — approximately 11.11 mm |
| Threads Per Inch | 14 TPI |
| Thread Pitch | Approximately 1.814 mm |
| Thread Coverage | Part threaded with a plain shank |
| Head Style | Hexagon head |
| Spanner Size Across Flats | 5/8" — approximately 15.88 mm |
| Head Height | 9/32" — approximately 7.14 mm |
| Material | Steel |
| Strength Grade | Grade 5 |
| Finish | Self colour |
Available Lengths and Shank Dimensions
Bolt length is measured from underneath the head to the tip, including both the plain shank and threaded section. Thread and shank dimensions below are nominal guide measurements.
| Bolt Length | Metric Equivalent | Thread Length | Plain Shank Length |
|---|---|---|---|
| 1 1/2" | 38.10 mm | 1 1/8" | 3/8" |
| 1 3/4" | 44.45 mm | 1 1/8" | 5/8" |
| 2" | 50.80 mm | 1 1/8" | 7/8" |
| 2 1/4" | 57.15 mm | 1 1/8" | 1 1/8" |
| 2 1/2" | 63.50 mm | 1 1/8" | 1 3/8" |
| 3" | 76.20 mm | 1 1/8" | 1 7/8" |
| 3 1/2" | 88.90 mm | 1 1/8" | 2 3/8" |
| 4" | 101.60 mm | 1 1/8" | 2 7/8" |
| 4 1/2" | 114.30 mm | 1 1/8" | 3 3/8" |
| 5" | 127.00 mm | 1 1/8" | 3 7/8" |
| 7" | 177.80 mm | 1 3/8" | 5 5/8" |
Selecting Your Bolt
Select the required length and pack size from the available options. Use with matching 7/16"-14 UNC nuts or tapped holes. Allow for the thickness of the joined components and any washers, and ensure sufficient thread engagement.
Check that the plain shank length suits your assembly and allows the joint to tighten correctly. UNC, UNF and BSW are different thread forms, so confirm the mating thread before ordering.
Please note: Dimensions are provided as a guide. If precise dimensions, thread length or plain shank length are essential for your application, please contact us before ordering.
