Product Description

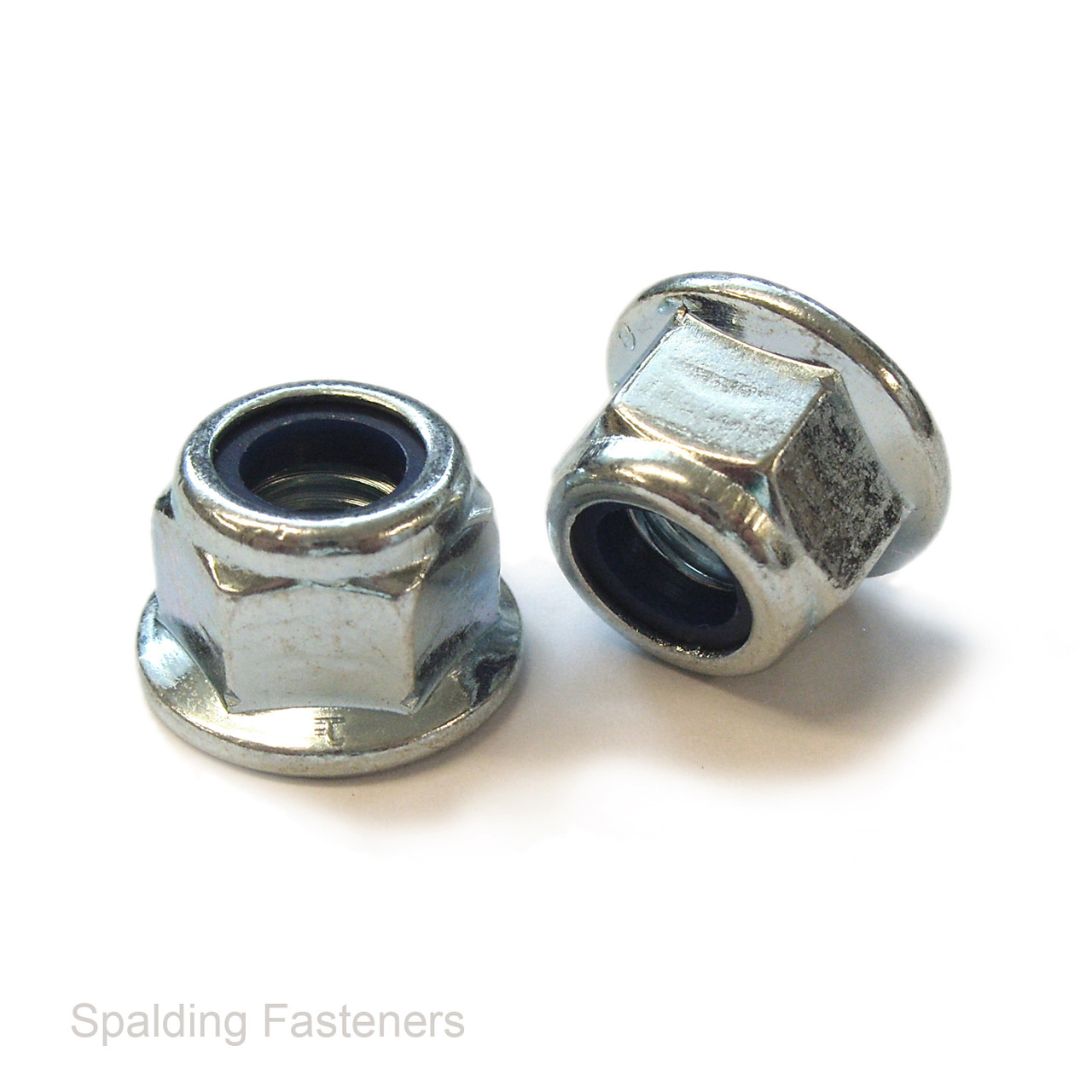

Metric coarse Grade 8 zinc plated steel flange nyloc nuts to DIN 6926, also known as flanged nylon insert lock nuts or flanged nylon locking nuts.
These nuts combine an integrated flange with a nylon insert. The flange helps spread the clamping load over a wider surface area, while the nylon insert grips the mating thread when tightened to help resist loosening caused by vibration, movement or repeated load changes.
- Metric coarse thread flange nyloc nuts
- Grade 8 / Class 8 zinc plated steel
- DIN 6926 flanged nylon insert lock nut pattern
- Integrated flange helps spread clamping load
- Nylon insert helps resist vibration loosening
- Suitable for metric bolts, set screws, studs and threaded bar
- Ideal for automotive, machinery, engineering, fabrication and maintenance use
| A | B | C | D | E |
| 5mm | 11.6mm | 8mm | 7mm | 0.8 |
| 6mm | 13.4mm | 10mm | 9mm | 1 |
| 8mm | 17.3mm | 13mm | 11mm | 1.25 |
| 10mm | 21mm | 17mm | 13mm | 1.5 |
| 12mm | 24mm | 19mm | 15.8mm | 1.75 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
