Product Description

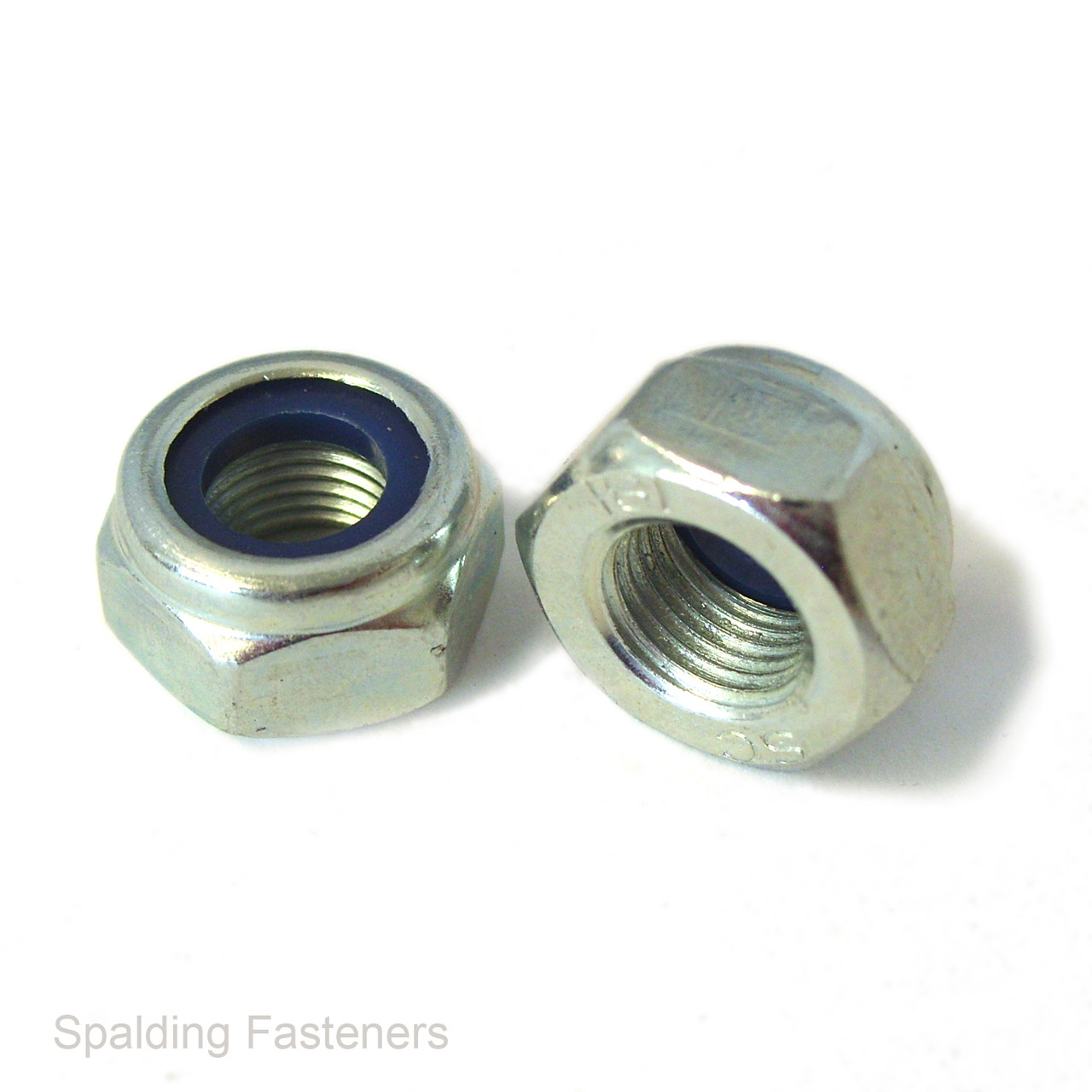

Metric coarse Grade 8 zinc plated steel nyloc nuts to DIN 985, also known as nylon insert lock nuts, nylon lock nuts or prevailing torque nuts.
These Type T nyloc nuts feature an integrated nylon insert which grips the mating thread when tightened, helping to resist loosening caused by vibration, movement or repeated load changes. The bright zinc plated steel finish provides general corrosion resistance for everyday engineering, automotive, machinery, fabrication and maintenance applications.
- Metric coarse thread nyloc nuts
- Grade 8 / Class 8 zinc plated steel
- DIN 985 Type T nylon insert lock nut pattern
- Also called nylon lock nuts or prevailing torque nuts
- Nylon insert helps resist vibration loosening
- Suitable for metric bolts, set screws, studs and threaded bar
- Available in sizes from M3 to M30
| A | B | C | D |
| 3mm | 5mm | 3.8mm | 0.5 |
| 4mm | 7mm | 4.7mm | 0.7 |
| 5mm | 8mm | 4.8mm | 0.8 |
| 6mm | 10mm | 5.8mm | 1 |
| 7mm | * | * | 1 |
| 8mm | 13mm | 7.9mm | 1.25 |
| 10mm | 17mm | 9.7mm | 1.5 |
| 12mm | * | * | 1.75 |
| 14mm | * | * | 2 |
| 16mm | * | * | 2 |
| 20mm | 30mm | 21.3mm | 2.5 |
| 30mm | * | * | 3.5 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
