Product Description

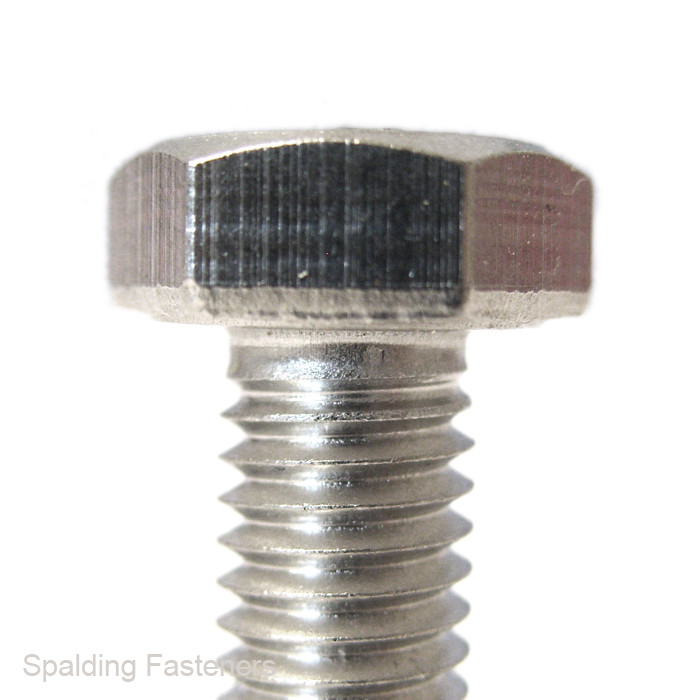

These screws feature a hexagon head and self tapping thread, designed for fastening into suitable pilot holes in sheet metal, plastics and other light materials. The hex head allows installation with a spanner, socket or nut driver, making them useful where stronger tool engagement is preferred over slotted or pozi drives.
Manufactured from A2 stainless steel, also known as 304 stainless steel, they offer good corrosion resistance for general engineering, automotive, maintenance, outdoor and repair applications.
- No.10 imperial size self tapping screws
- A2 stainless steel, also known as 304 stainless steel
- DIN 7976 hexagon head self tapping screw pattern
- Type AB self tapping thread
- Hexagon head for socket, spanner or nut driver fitting
- Available in 1/2", 5/8", 3/4", 1", 1 1/4", 1 1/2", 2" and 2 3/4" lengths
- Suitable for sheet metal, plastics, repairs and general fastening
| A | B | C | D | E | F | G | H |
| No.10 | 4.8mm | 1 1/2" | 38mm | 5/16" | 8mm | 1/8" | 3.12mm |
| No.10 | 4.8mm | 1 1/4" | 32mm | 5/16" | 8mm | 1/8" | 3.12mm |
| No.10 | 4.8mm | 1" | 25mm | 5/16" | 8mm | 1/8" | 3.12mm |
| No.10 | 4.8mm | 1/2" | 13mm | 5/16" | 8mm | 1/8" | 3.12mm |
| No.10 | 4.8mm | 2" | 50mm | 5/16" | 8mm | 1/8" | 3.12mm |
| No.10 | 4.8mm | 2 3/4" | 70mm | 5/16" | 8mm | 1/8" | 3.12mm |
| No.10 | 4.8mm | 3/4" | 19mm | 5/16" | 8mm | 1/8" | 3.12mm |
| No.10 | 4.8mm | 5/8" | 16mm | 5/16" | 8mm | 1/8" | 3.12mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
