Product Description

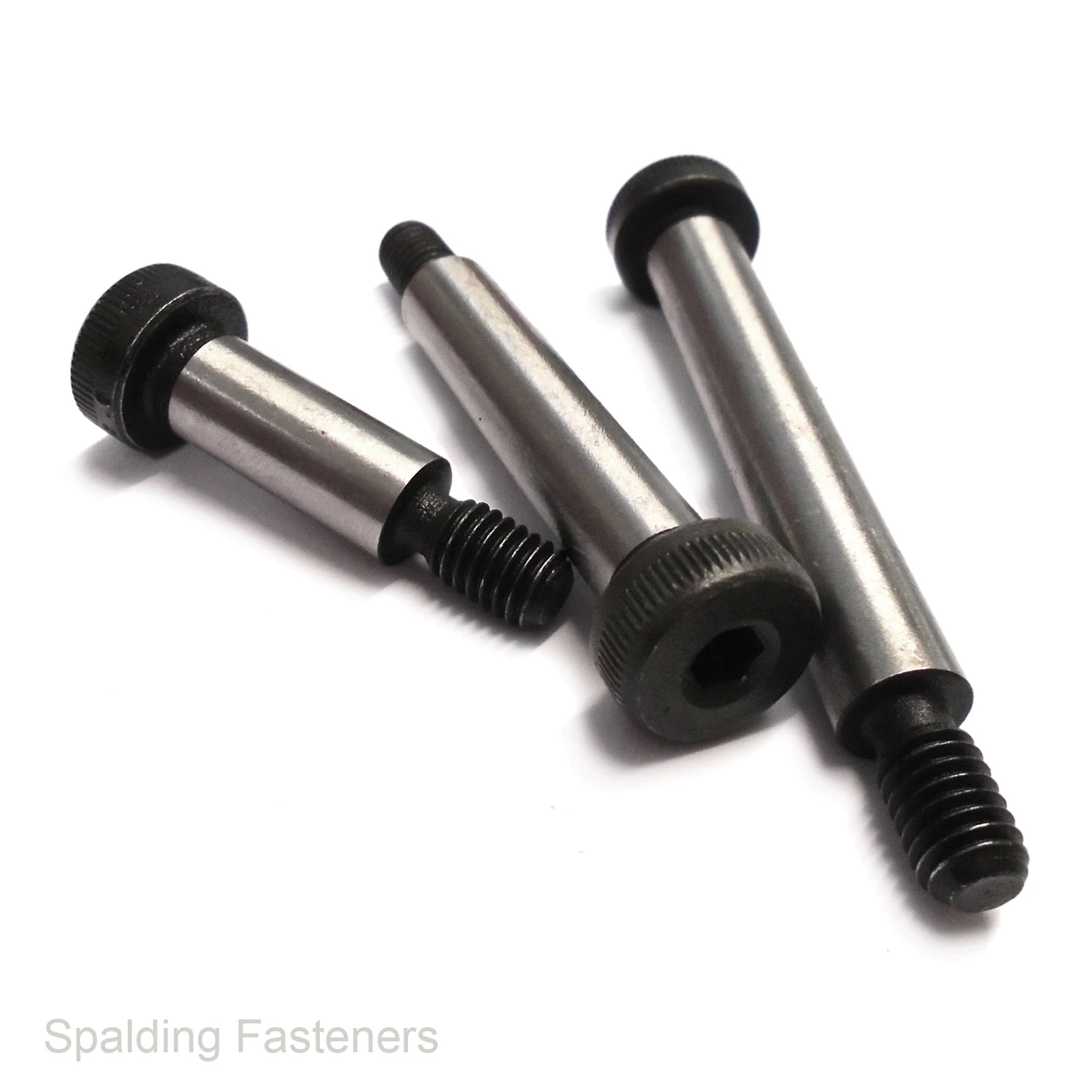

M8 Socket Shoulder Screws – 10mm Shoulder – 12.9 High Tensile Steel ISO 7379
These socket shoulder screws feature a 10 mm ground shoulder and an M8 metric coarse thread. Manufactured from grade 12.9 high tensile steel to ISO 7379, they have a cylindrical socket head for tightening with a 5 mm Allen key.
The smooth shoulder provides a bearing or locating surface for components such as bushes, rollers and pivoting parts. The smaller threaded end secures the screw into a matching tapped hole.
Technical Specifications
| Thread Size | M8 |
|---|---|
| Thread Pitch | 1.25 mm |
| Thread Type | Metric coarse |
| Nominal Shoulder Diameter | 10 mm |
| Material | High tensile steel |
| Grade | 12.9 |
| Standard | ISO 7379 |
| Head Diameter | 14 mm |
| Head Height | 7 mm |
| Allen Key Size | 5 mm |
Available Shoulder Lengths
| Shoulder Diameter | Thread Size | Shoulder Length |
|---|---|---|
| 10 mm | M8 | 16 mm |
| 10 mm | M8 | 20 mm |
| 10 mm | M8 | 25 mm |
| 10 mm | M8 | 30 mm |
| 10 mm | M8 | 40 mm |
| 10 mm | M8 | 50 mm |
How to Read the Size
For example, 10 mm x M8 x 20 mm means a 10 mm shoulder diameter, an M8 thread and a 20 mm shoulder length. Shoulder length is measured from beneath the head along the ground section only, excluding the head and threaded end.
Selecting Your Shoulder Screws
Select the required shoulder length and pack quantity from the available options. Check the shoulder diameter and length against the component being located or supported, and use with a matching M8 x 1.25 thread.
