Product Description

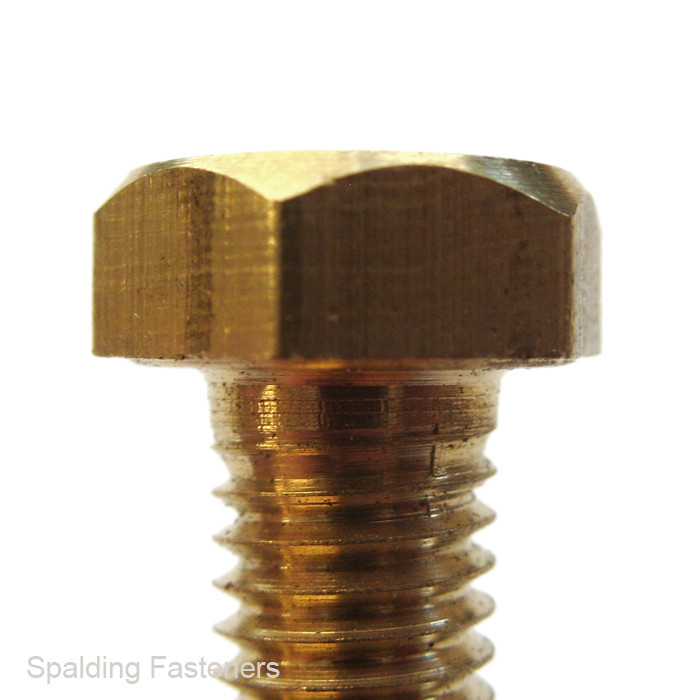

M12 Metric Brass Hexagon Head Fully Threaded Set Screws
These M12 hexagon head set screws are manufactured from solid brass and feature a fully threaded shank. The hexagonal head accepts a 19 mm spanner or socket for installation into a matching nut or tapped hole.
Supplied in a 30 mm length, these screws have an M12 x 1.75 metric coarse thread. The brass construction suits assemblies requiring brass fasteners and provides a matching appearance alongside other brass components.
Technical Specifications
| Thread Size | M12 |
|---|---|
| Nominal Thread Diameter | 12 mm |
| Thread Pitch | 1.75 mm |
| Thread Type | Metric coarse |
| Material | Solid brass |
| Thread Coverage | Fully threaded |
| Head Style | Hexagon |
| Spanner Size Across Flats | 19 mm |
| Head Height | 7.5 mm |
| Dimensional Reference | DIN 933 |
Available Size
| Thread Size | Length | Thread Coverage |
|---|---|---|
| M12 x 1.75 | 30 mm | Fully threaded |
Screw length is measured from beneath the head to the end of the screw, excluding the head.
Selecting Your Set Screws
Select the required pack quantity from the available options. Use with a matching M12 x 1.75 nut or tapped hole and a correctly fitting 19 mm spanner or socket.
Check that the length provides sufficient thread engagement. Tighten appropriately for brass fasteners to avoid damaging the head or threads.
