Product Description

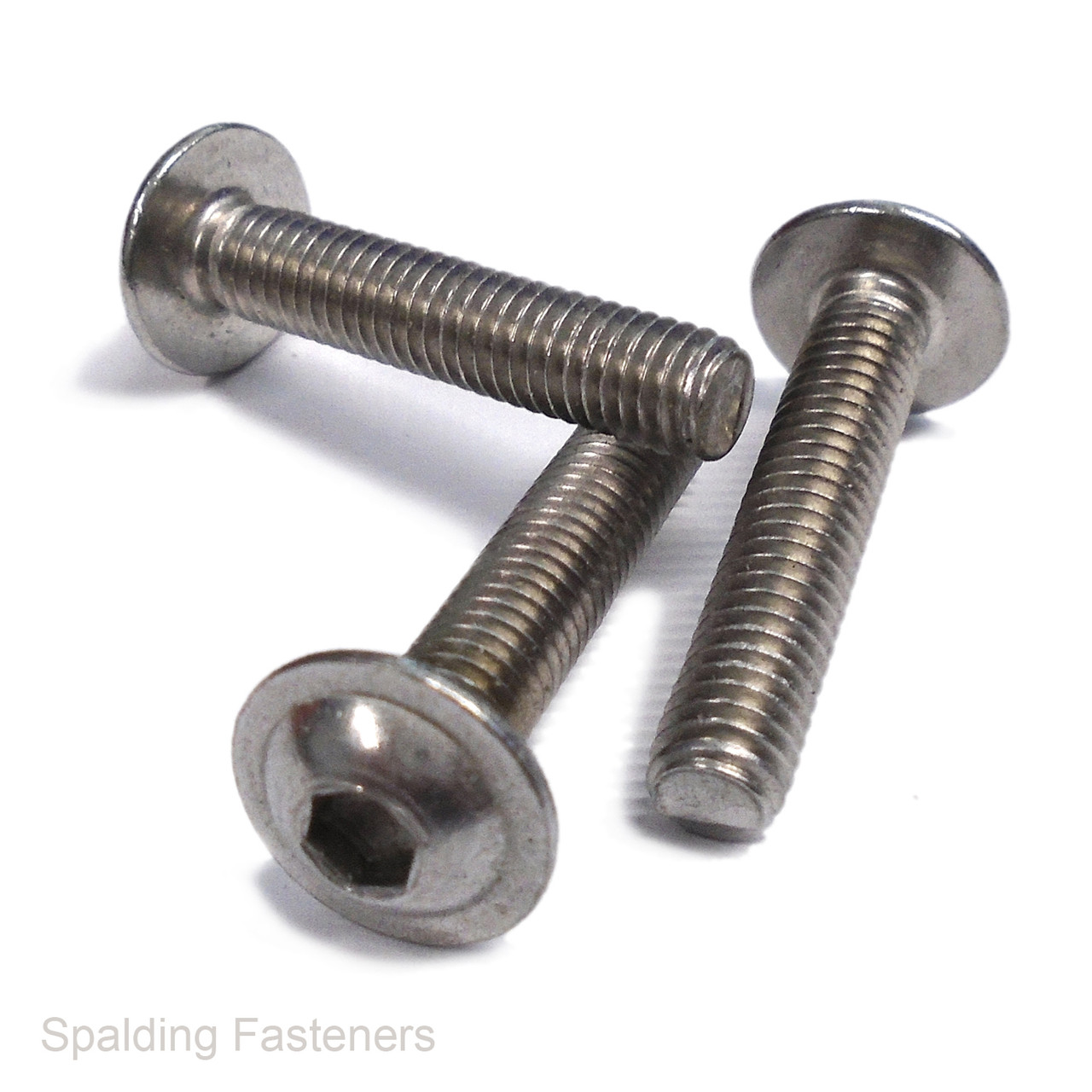

M4 A2 Stainless Steel Socket Flange Button Screws — ISO 7380-2
M4 socket flange button screws manufactured from A2 stainless steel. The rounded button head incorporates a flange that provides a wider bearing surface beneath the head, helping spread the clamping load across the component.
Featuring a metric coarse thread and a 2.5mm Allen key drive, these screws are suitable for panels, covers, brackets and general assembly. Choose from twelve lengths between 6mm and 60mm.
Technical Specifications
| Product Type | Socket flange button screws |
|---|---|
| Standard | ISO 7380-2 |
| Material | A2 stainless steel |
| Thread Size | M4 |
| Nominal Thread Diameter | 4mm |
| Thread Type | Metric coarse |
| Thread Pitch | 0.7mm |
| Head Style | Rounded button head with integral flange |
| Drive Type | Internal hexagon socket |
| Allen Key Size | 2.5mm |
| Maximum Flange Diameter | 9.4mm |
| Maximum Head Height | 2.2mm |

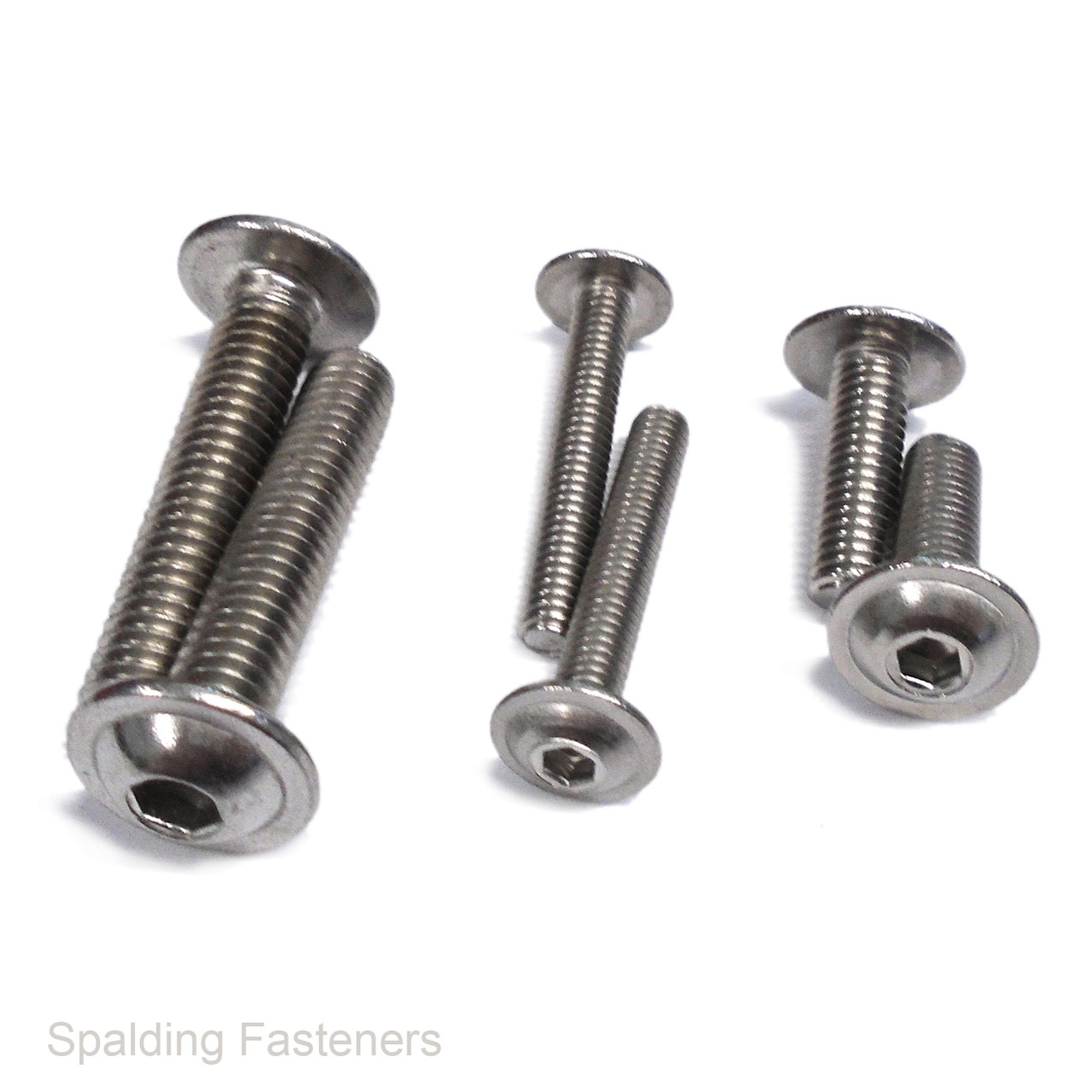

Available Lengths
| Thread Size | Length | Thread Pitch |
|---|---|---|
| M4 | 6mm | 0.7mm |
| M4 | 8mm | 0.7mm |
| M4 | 10mm | 0.7mm |
| M4 | 12mm | 0.7mm |
| M4 | 16mm | 0.7mm |
| M4 | 20mm | 0.7mm |
| M4 | 25mm | 0.7mm |
| M4 | 30mm | 0.7mm |
| M4 | 35mm | 0.7mm |
| M4 | 40mm | 0.7mm |
| M4 | 50mm | 0.7mm |
| M4 | 60mm | 0.7mm |
Measuring and Fitting
Measure screw length from the underside of the flange to the tip. Use with a matching M4 x 0.7mm nut or tapped hole, allowing sufficient thread engagement for the assembly.
Fully engage a correctly fitting 2.5mm Allen key before tightening. Tighten steadily and avoid excessive force to protect the socket and stainless steel threads.
