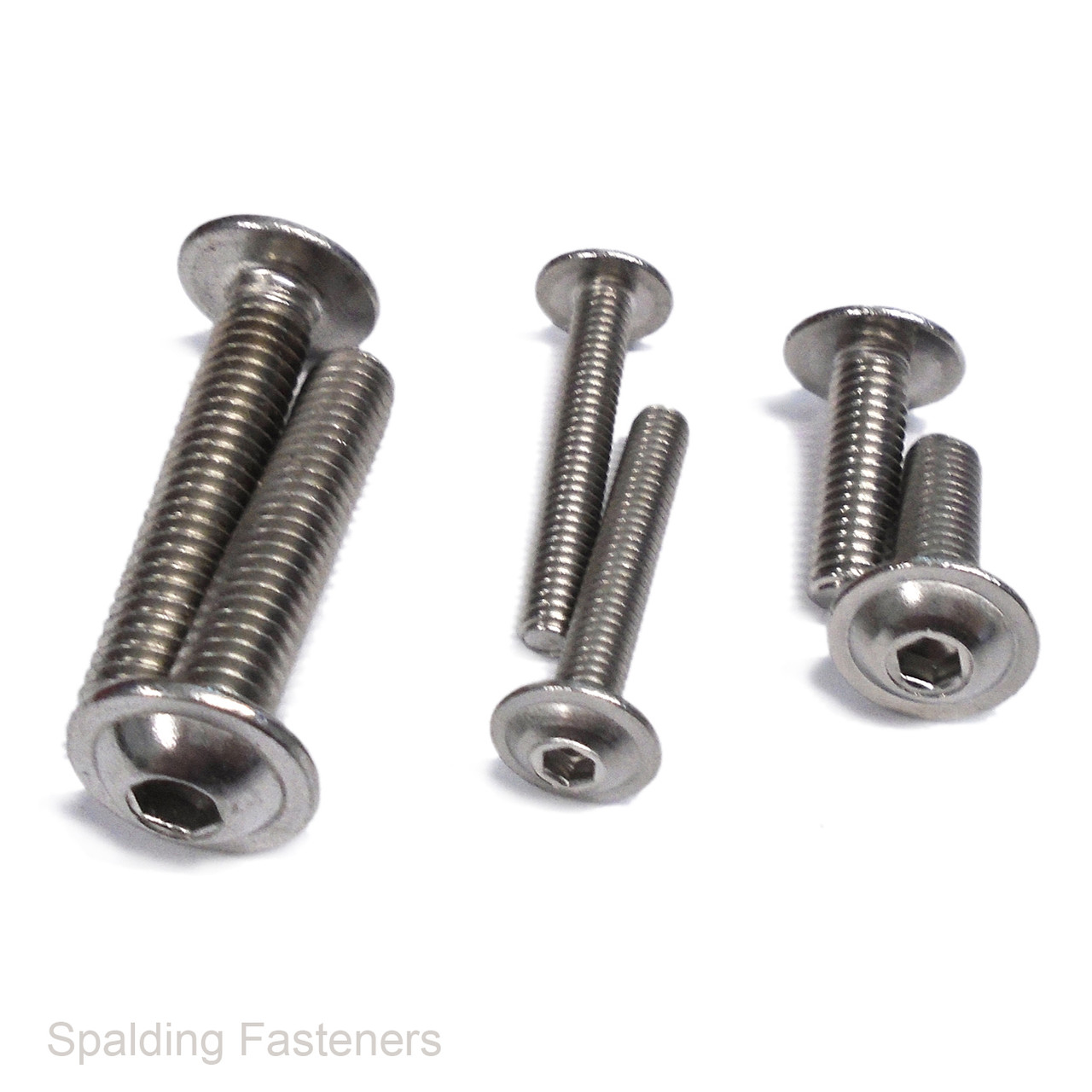

M10 A2 Stainless Steel Socket Flange Button Screws – ISO 7380-2
M10 socket flange button screws manufactured from A2 stainless steel, featuring a rounded button head with an integral flange. The wider bearing surface helps spread the clamping load across the mating surface, while the internal hexagon socket allows tightening with a 6mm Allen key.
Suitable for general assembly, machinery, panels and maintenance applications requiring corrosion-resistant fasteners. Available in lengths from 20mm to 50mm, with an M10 metric coarse thread.
Technical Specifications
| Thread Size | M10 |
|---|---|
| Thread Type | Metric coarse |
| Thread Pitch | 1.5mm |
| Material | A2 stainless steel |
| Standard | ISO 7380-2 |
| Head Style | Button head with integral flange |
| Drive Type | Internal hexagon socket |
| Allen Key Size | 6mm |
| Maximum Flange Diameter | 21.9mm |
| Maximum Head Height | 5.5mm |
| Length Measurement | Measured from beneath the flange to the end of the screw |
Available Sizes
| Thread Size | Screw Length | Thread Pitch | Allen Key Size |
|---|---|---|---|
| M10 | 20mm | 1.5mm | 6mm |
| M10 | 30mm | 1.5mm | 6mm |
| M10 | 40mm | 1.5mm | 6mm |
| M10 | 50mm | 1.5mm | 6mm |
Select your required screw length and pack quantity from the options above.
Fitting Information
Use a 6mm Allen key or suitable hexagon driver, ensuring it is fully seated before tightening. Fit into a matching M10 x 1.5mm tapped hole or use with a compatible M10 nut. Choose a length that provides sufficient thread engagement without bottoming out in a blind hole.
Tighten stainless steel fasteners steadily and avoid excessive speed to help reduce the risk of thread galling. Where appropriate, use a suitable anti-seize compound and account for lubrication when determining the tightening torque.
