Product Description

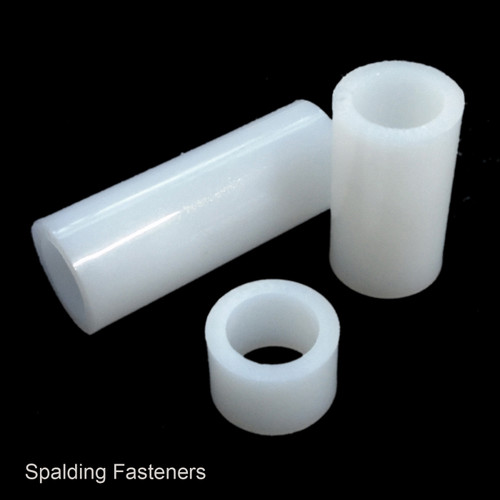

Metric White Nylon Plastic Spacer Standoff Tubes
White nylon spacer tubes provide separation between components in assemblies. Their round, unthreaded design allows a suitable screw or bolt to pass through the centre, holding parts apart at the required distance.
Made from Nylon 66, these lightweight spacers are suitable for model building, maintenance and household DIY projects. Choose the nominal size and spacer length to suit your assembly.
Technical Specifications
| Material | Nylon 66 |
|---|---|
| Colour | White |
| Shape | Round tubular spacer |
| Bore | Plain, unthreaded |
| Nominal sizes | M3, M4, M5, M6, M8, M10 and M12 |
| Length measurement | Overall spacer length, measured end to end |
Size and Length Options
| Option | Listed Choices |
|---|---|
| Nominal size | M3, M4, M5, M6, M8, M10, M12 |
| Spacer length | 2.5mm, 3mm, 5mm, 7.5mm, 10mm, 15mm, 20mm, 25mm, 30mm |
| Pack quantity | 1, 5, 10 or 50 |
Choose your required combination from the product options. Nominal size identifies the intended fastener size, rather than an exact measured bore diameter.
Fitting Advice
Select a spacer length matching the required gap between components. Check that the fastener passes freely through the bore and that there is sufficient clearance around the spacer. Allow for the spacer length when choosing your screw or bolt, and avoid overtightening, which can compress or distort the nylon.
