Product Description

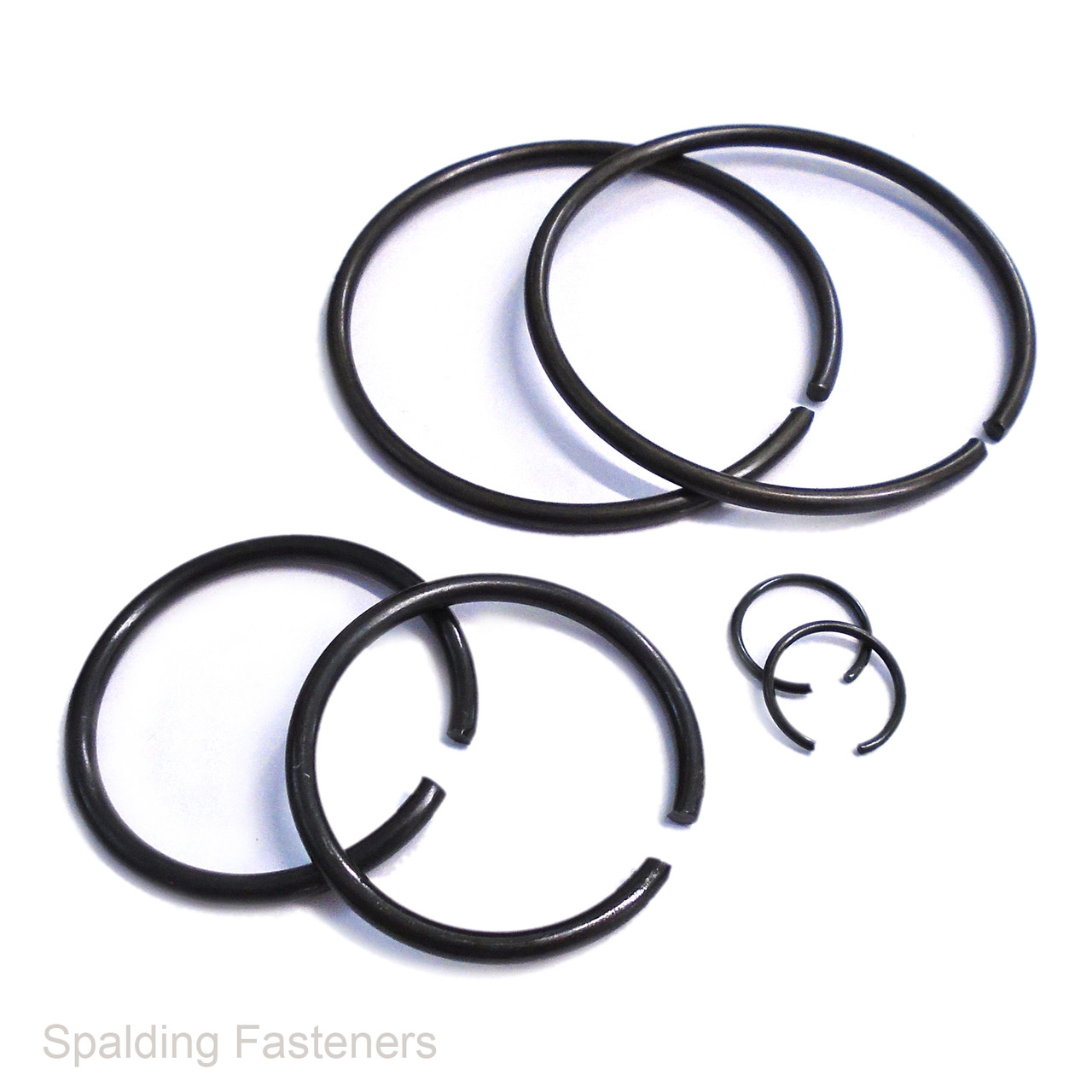

Snap rings are a type of fastener or retaining ring consisting of a semi-flexible metal ring with open ends which can be snapped into place, into a machined groove on a dowel pin or other part to permit rotation but to prevent lateral movement.
| A | B | C |
| 10 | 9.1 | 0.8 |
| 12 | 10.8 | 1 |
| 14 | 12.8 | 1 |
| 16 | 14.2 | 1.6 |
| 18 | 16.2 | 1.6 |
| 20 | 17.7 | 2 |
| 22 | 19.7 | 2 |
| 24 | 21.7 | 2 |
| 25 | 22.7 | 2 |
| 26 | 23.7 | 2 |
| 28 | 25.7 | 2 |
| 30 | 27.7 | 2 |
| 32 | 29.1 | 2.5 |
| 35 | 32.1 | 2.5 |
| 38 | 35.1 | 2.5 |
| 40 | 37.1 | 2.5 |
| 45 | 42 | 2.5 |
| 48 | 45 | 2.5 |
| 50 | 47 | 2.5 |
| 6 | 5.1 | 0.8 |
| 8 | 7.1 | 0.8 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
