Product Description

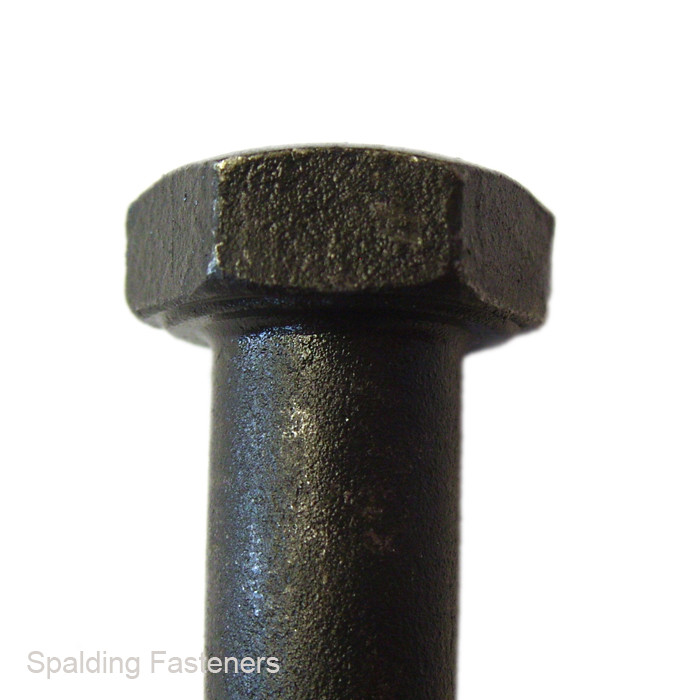

1/4" BSF Grade R High Tensile Self Colour Hexagon Head Bolts
1/4" BSF hexagon head bolts manufactured from Grade R high tensile steel with a self colour finish. These partially threaded bolts feature an unthreaded shank and a British Standard Fine thread with 26 threads per inch.
Suitable for restoration, maintenance and engineering assemblies requiring matching BSF fasteners. The external hexagon head allows installation with a suitable spanner or socket.
Technical Specifications
| Thread size | 1/4" BSF |
|---|---|
| Thread type | British Standard Fine |
| Threads per inch | 26 TPI |
| Material | Grade R high tensile steel |
| Finish | Self colour, unplated |
| Head type | Hexagon |
| Thread coverage | Partially threaded with an unthreaded shank |
| Listed spanner size across flats | 7/16" |
| Listed head height | 5/32" |
| Length measurement | Measured from beneath the head to the end of the bolt |
Available Lengths
| Thread Size | Bolt Length |
|---|---|
| 1/4" BSF | 1" |
| 1/4" BSF | 1 1/4" |
| 1/4" BSF | 1 1/2" |
| 1/4" BSF | 2" |
| 1/4" BSF | 2 3/4" |
| 1/4" BSF | 3" |
Pack quantities: 1–10, 20, 50, 100, 250 or 500. Select your required length and quantity from the product options.
Head dimensions are provided as a guide. Check the threaded and unthreaded lengths where these are critical to your assembly.
Fitting Advice
Use with a matching 1/4" BSF nut or tapped hole. Start the thread by hand and select a spanner or socket that fits the head securely. Follow the assembly's specified tightening requirements. Self colour steel has no plated corrosion protection, so consider suitable protection where exposed to moisture.
Related Products
Browse our nuts, washers and tools and accessories to complete your assembly.
| A | B | C | D | E | F | G |
| 1/4" | 3 1/4" | 1/2" | 7/16" | 5/32" | 26 | 2.61 |
| 1/4" | 2 3/4" | 1/2" | 7/16" | 5/32" | 26 | 2.15 |
| 1/4" | 2 1/2" | 1/2" | 7/16" | 5/32" | 26 | 1.94 |
| 1/4" | 2 1/4" | 1/2" | 7/16" | 5/32" | 26 | 1.75 |
| 1/4" | 2" | 1/2" | 7/16" | 5/32" | 26 | 1.45 |
| 1/4" | 1 1/4" | 1/2" | 7/16" | 5/32" | 26 | 3/4" |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
