Product Description

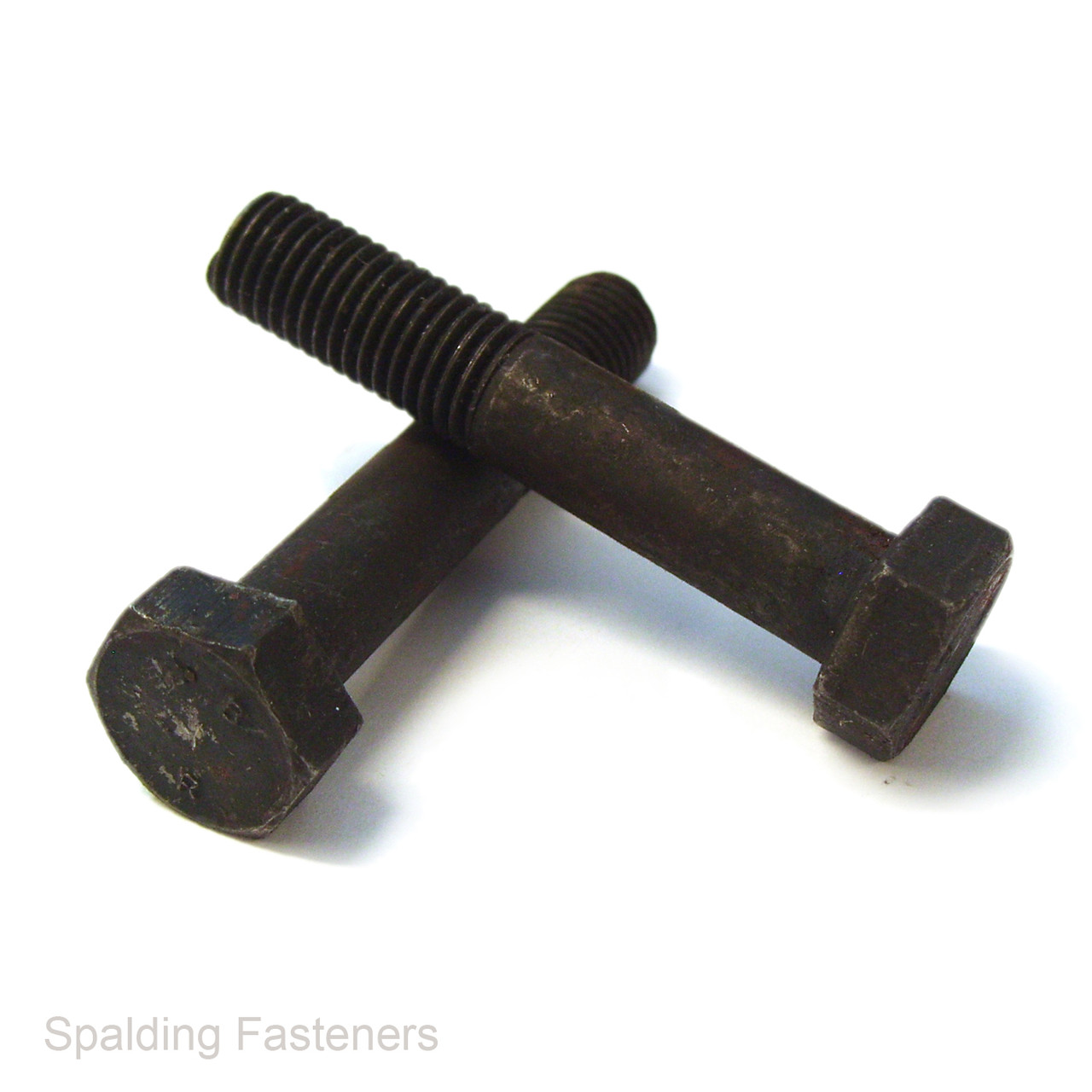

5/16" BSF Grade R High Tensile Self Colour Hexagon Head Bolts
5/16" BSF hexagon head bolts manufactured from Grade R high tensile steel with a self colour finish. These partially threaded bolts have an unthreaded shank and a British Standard Fine thread with 22 threads per inch.

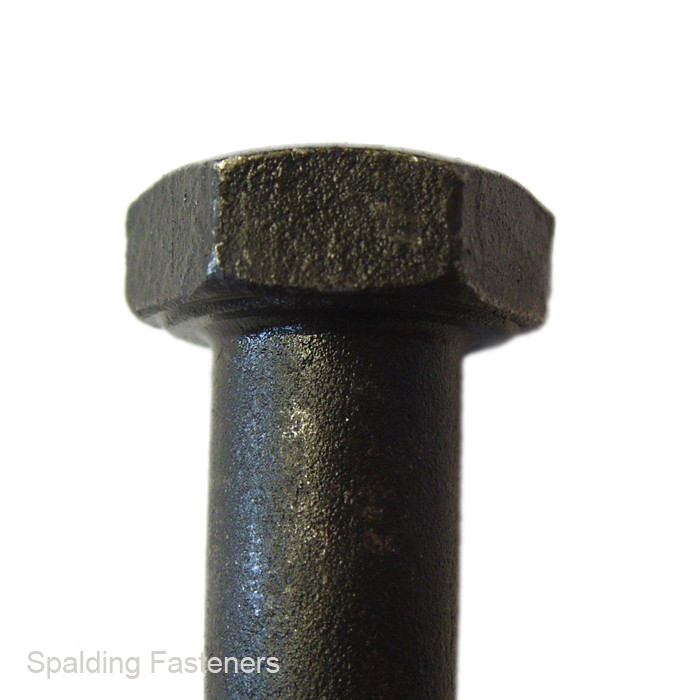

Suitable for restoration, maintenance and engineering assemblies requiring matching BSF fasteners. The hexagon head provides access for tightening with a suitable spanner or socket.
Technical Specifications
| Thread size | 5/16" BSF |
|---|---|
| Thread type | British Standard Fine |
| Threads per inch | 22 TPI |
| Material | Grade R high tensile steel |
| Finish | Self colour, unplated |
| Head type | Hexagon |
| Thread coverage | Partially threaded with an unthreaded shank |
| Standard spanner reference | 5/16" BSF or 1/4" Whitworth |
| Standard across-flats reference | Approximately 0.525" – confirm against the bolt supplied |
| Listed head height | 13/64" |
| Listed thread length | 3/4" |
| Length measurement | Measured from beneath the head to the end of the bolt |
Available Lengths
| Thread Size | Bolt Length |
|---|---|
| 5/16" BSF | 1 1/4" |
| 5/16" BSF | 1 1/2" |
| 5/16" BSF | 2" |
| 5/16" BSF | 4 3/4" |
Pack quantities: 1, 5, 10, 20, 50 or 100. Select your required length and quantity from the product options.
Dimensions are provided as a guide. Confirm head, thread and shank dimensions where fit is critical.
Fitting Advice
Use with a matching 5/16" BSF nut or tapped hole. Start the thread by hand and use a spanner or socket that fits the head securely. Follow the assembly's specified tightening requirements. Self colour steel has no plated corrosion protection, so consider suitable protection where exposed to moisture.
