Product Description

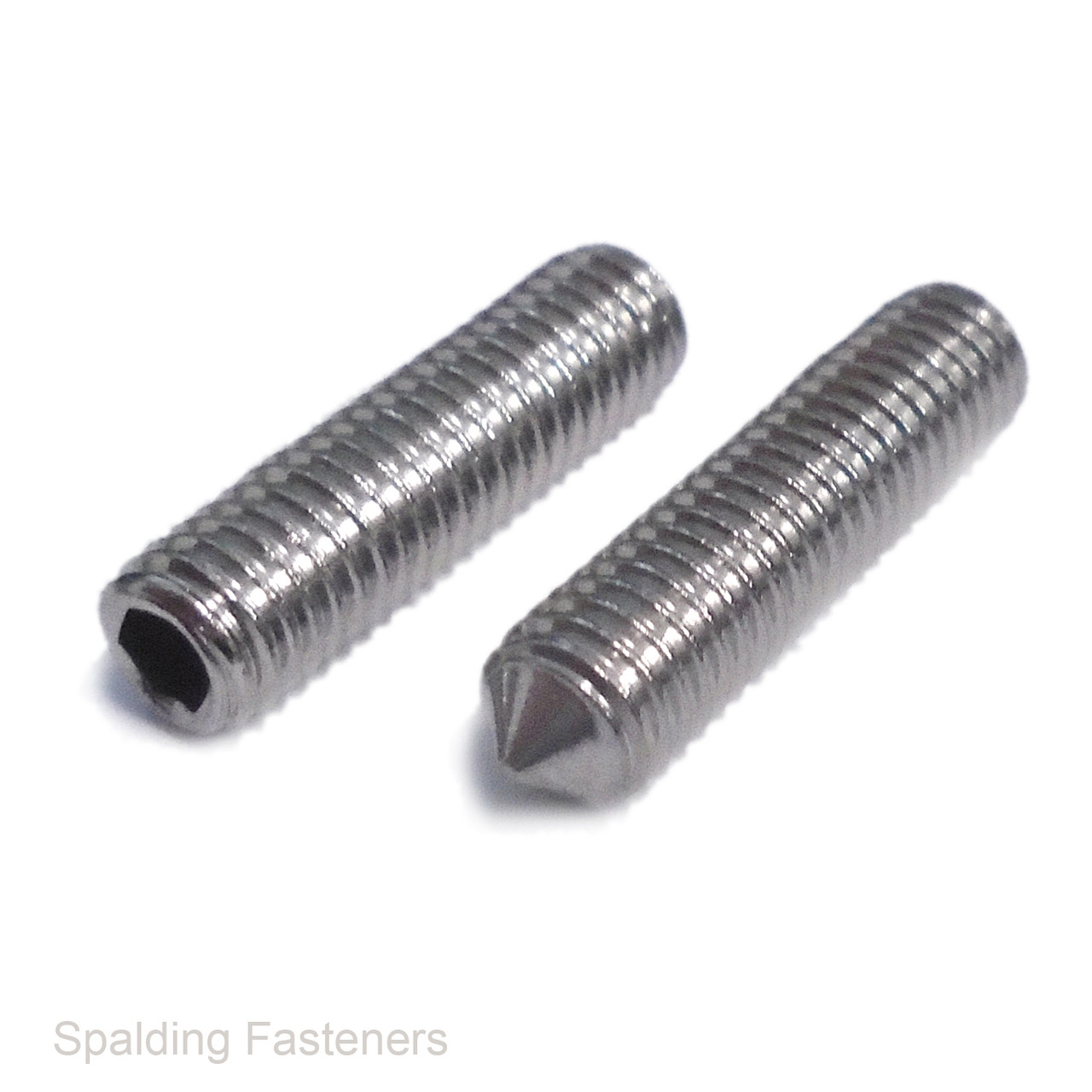

M6 A2 Stainless Steel Cone Point Socket Grub Screws — DIN 914 / ISO 4027
These M6 cone point grub screws are manufactured from A2 stainless steel for good general corrosion resistance. They feature a standard M6 x 1.0mm metric thread and an internal hexagon socket for a 3mm Allen key.
The headless design allows the screw to sit flush with or below the surrounding surface. The cone point provides concentrated contact for locating and securing components such as collars, knobs and mechanical assemblies, particularly where a matching locating recess is provided.
Technical Specifications
| Thread size | M6 |
|---|---|
| Nominal thread diameter | 6mm |
| Thread pitch | 1.0mm |
| Thread type | Metric coarse |
| Material | A2 stainless steel |
| Standards | DIN 914 / ISO 4027 |
| Screw type | Headless socket set screw / grub screw |
| Point style | Cone point |
| Drive type | Internal hexagon socket |
| Allen key size | 3mm |
| Length measurement | Overall end-to-end length, including the cone point |
Available Sizes
| Thread Size | Overall Length | Allen Key Size |
|---|---|---|
| M6 x 1.0mm | 6mm | 3mm |
| M6 x 1.0mm | 8mm | 3mm |
| M6 x 1.0mm | 10mm | 3mm |
| M6 x 1.0mm | 12mm | 3mm |
| M6 x 1.0mm | 16mm | 3mm |
| M6 x 1.0mm | 20mm | 3mm |
| M6 x 1.0mm | 25mm | 3mm |
| M6 x 1.0mm | 30mm | 3mm |
| M6 x 1.0mm | 35mm | 3mm |
| M6 x 1.0mm | 40mm | 3mm |
Available Pack Quantities
Select the required length and pack quantity from the product options. Packs available: 2, 5, 10, 20, 50, 100, 250, 500 and 1000.
Fitting Information
Install into a matching M6 x 1.0mm tapped hole using a correctly fitting 3mm Allen key. Keep the key fully engaged and tighten to the requirements of the assembly.
The cone point can indent or mark the mating surface. Where accurate positioning is required, use a suitably prepared locating recess. Choose a length that provides adequate thread engagement while allowing the point to contact the component being secured.
