Product Description
375 Piece A2 Stainless Steel Hex Head Self Tapping Screw Assortment
A selection of ten size and length combinations for workshop repairs and general fastening. Hexagon heads allow installation with a suitable socket or nut driver.
Product Specifications
- Material: A2 stainless steel.
- Type: hexagon head self tapping screws.
- Standard: DIN 7976.
- Gauge sizes: No.6, No.8, No.10 and No.12.
- Lengths measured from underneath the head.
- Total quantity: 375 screws.

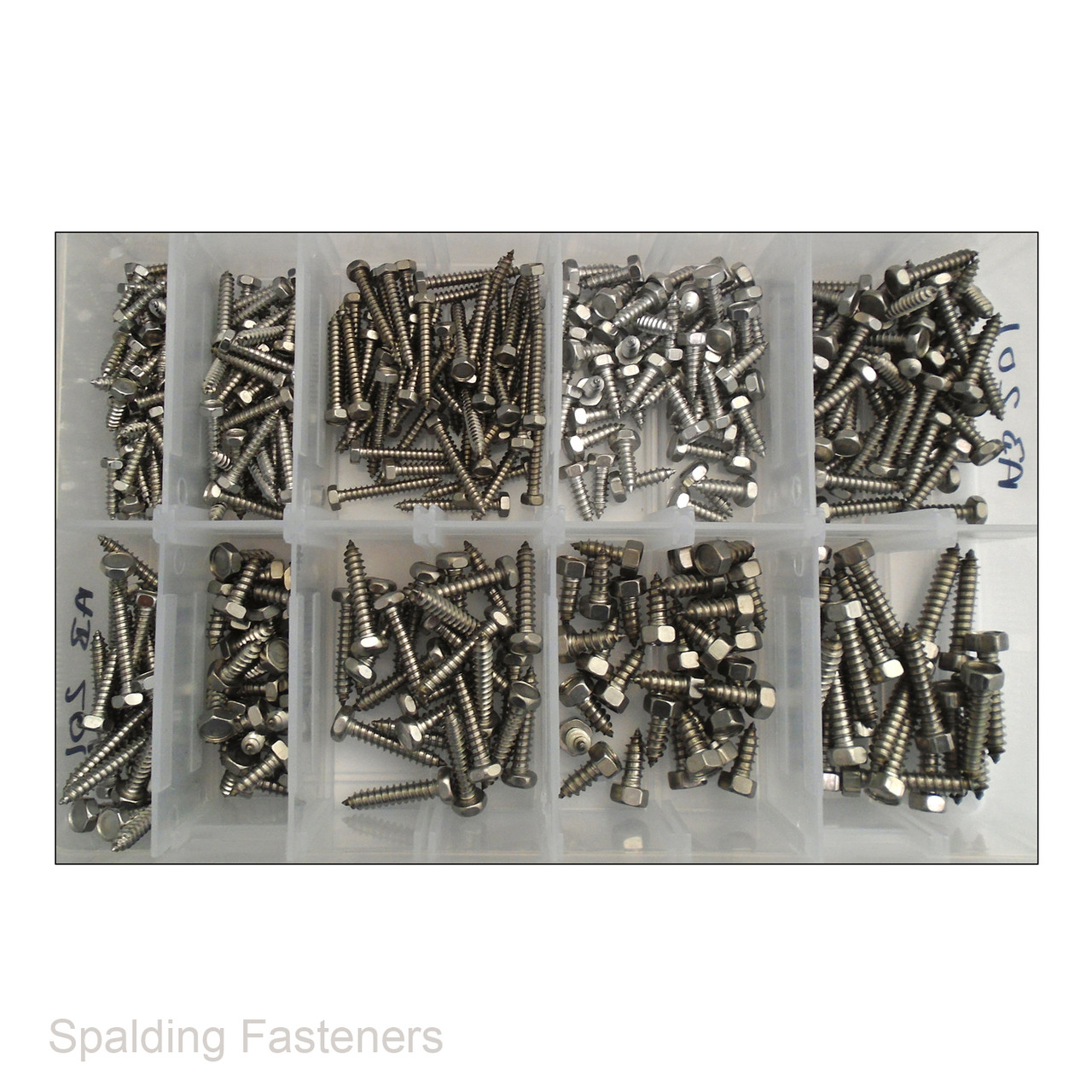

Assortment Contents
| Gauge & Length | Metric Size | Quantity |
|---|---|---|
| No.6 x 1/2 inch | 3.5 x 13mm | 50 |
| No.6 x 3/4 inch | 3.5 x 19mm | 50 |
| No.6 x 1 inch | 3.5 x 25mm | 50 |
| No.8 x 1/2 inch | 4.2 x 13mm | 50 |
| No.8 x 3/4 inch | 4.2 x 19mm | 50 |
| No.8 x 1 inch | 4.2 x 25mm | 25 |
| No.10 x 1/2 inch | 4.8 x 13mm | 25 |
| No.10 x 1 inch | 4.8 x 25mm | 25 |
| No.12 x 1/2 inch | 5.5 x 13mm | 30 |
| No.12 x 1 inch | 5.5 x 25mm | 20 |
| Total | 375 | |
Inch lengths are nominal trade descriptions; the corresponding metric lengths are shown above.
Head Dimensions & Socket Sizes
| Gauge | Nominal Thread Diameter | Socket / Spanner Size | Head Width Across Flats | Head Height |
|---|---|---|---|---|
| No.6 | 3.5mm | 5.5mm | 5.32–5.50mm | 2.30–2.60mm |
| No.8 | 4.2mm | 7mm | 6.78–7.00mm | 2.60–3.00mm |
| No.10 | 4.8mm | 8mm | 7.78–8.00mm | 3.30–3.80mm |
| No.12 | 5.5mm | 8mm | 7.78–8.00mm | 3.60–4.10mm |
Dimensions are provided as a guide. Please check with us if a measurement is critical to your application.
Packaging Options

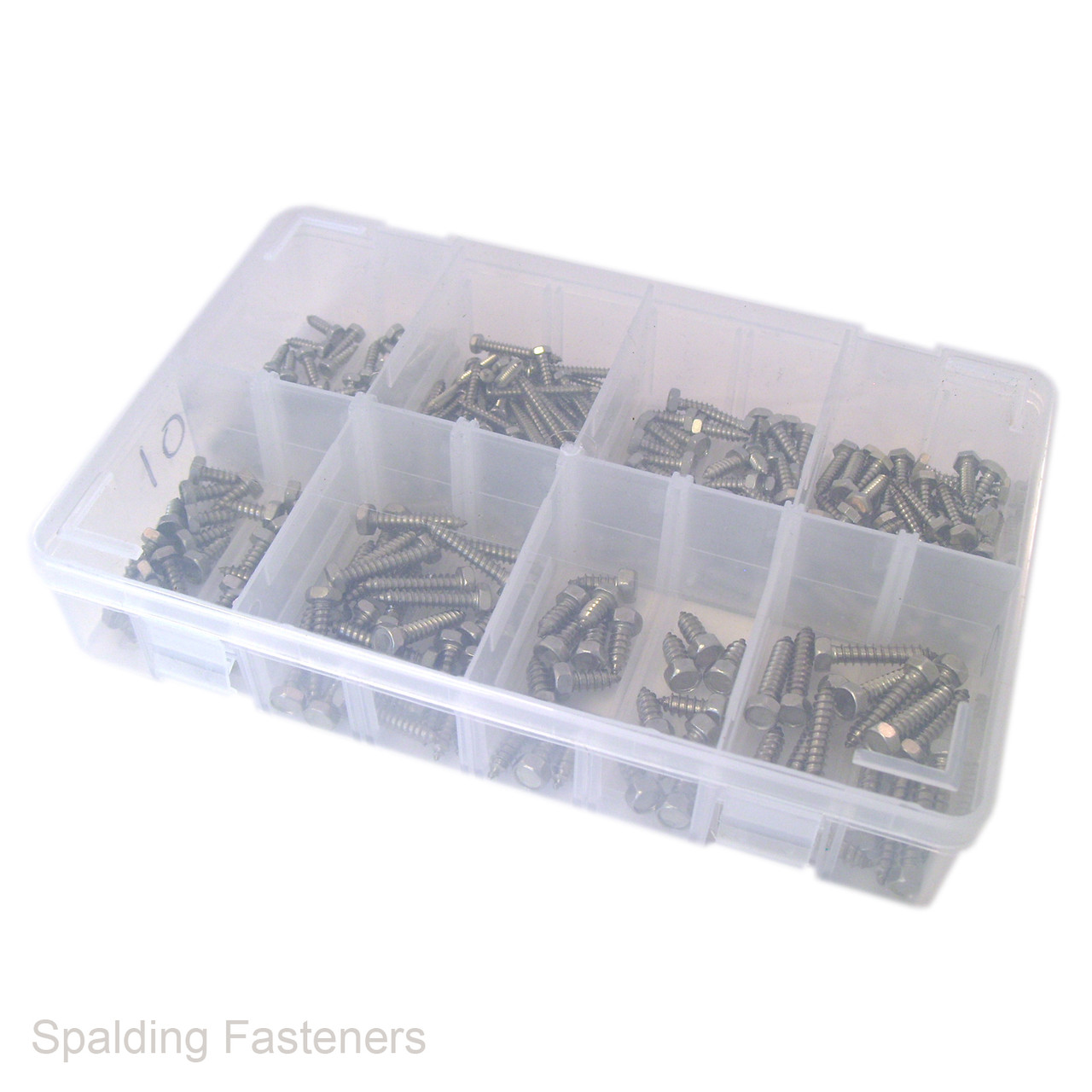

- Boxed set: plastic storage box with dividers and a clip-down lid.
- Refill pack: supplied in sealed plastic bags without a box.
Fitting Advice
Prepare a suitable pilot hole for the screw diameter, material and thickness. These screws form their thread as they are driven into the prepared hole. Use the correct socket size and tighten carefully to avoid stripping the formed thread.
