Product Description

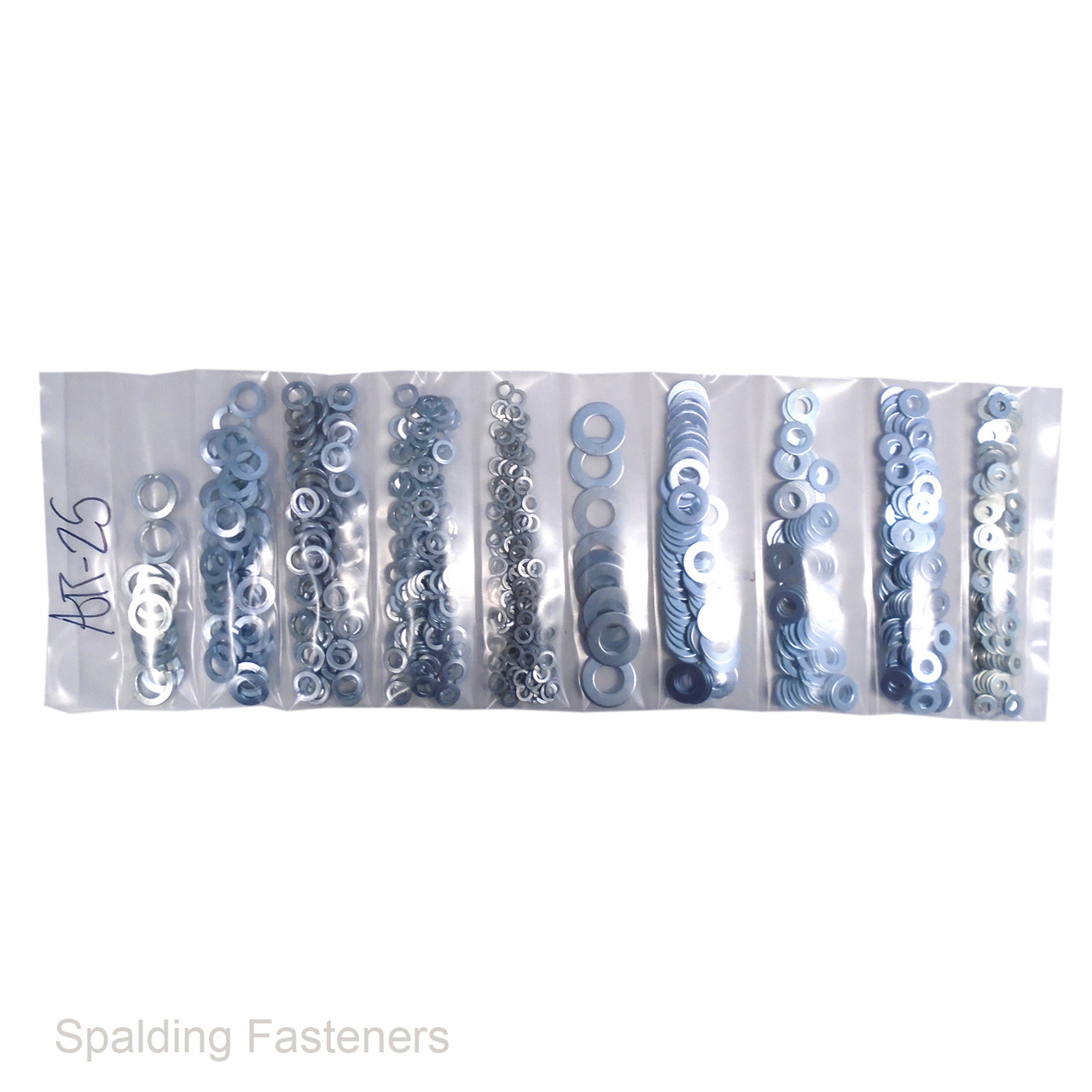

700 Assorted Imperial Zinc Plated Steel Flat & Spring Washers
A practical workshop assortment containing 350 T3 light flat washers and 350 rectangular section spring washers. Covers five imperial sizes from 3/16" to 1/2" for maintenance, repairs and general assembly.
Specifications
- Material: steel.
- Finish: zinc plated.

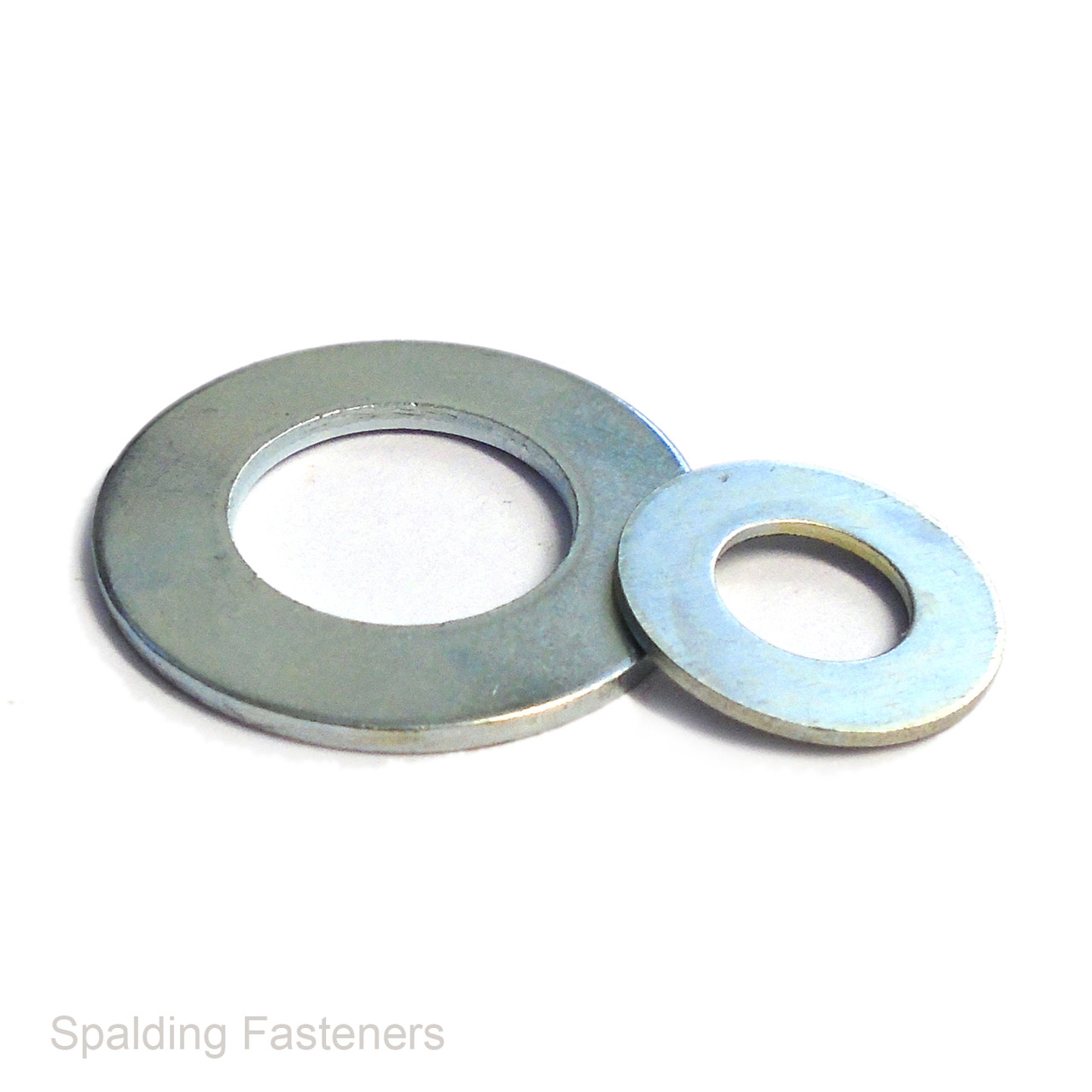

- Flat washer type: T3 light.

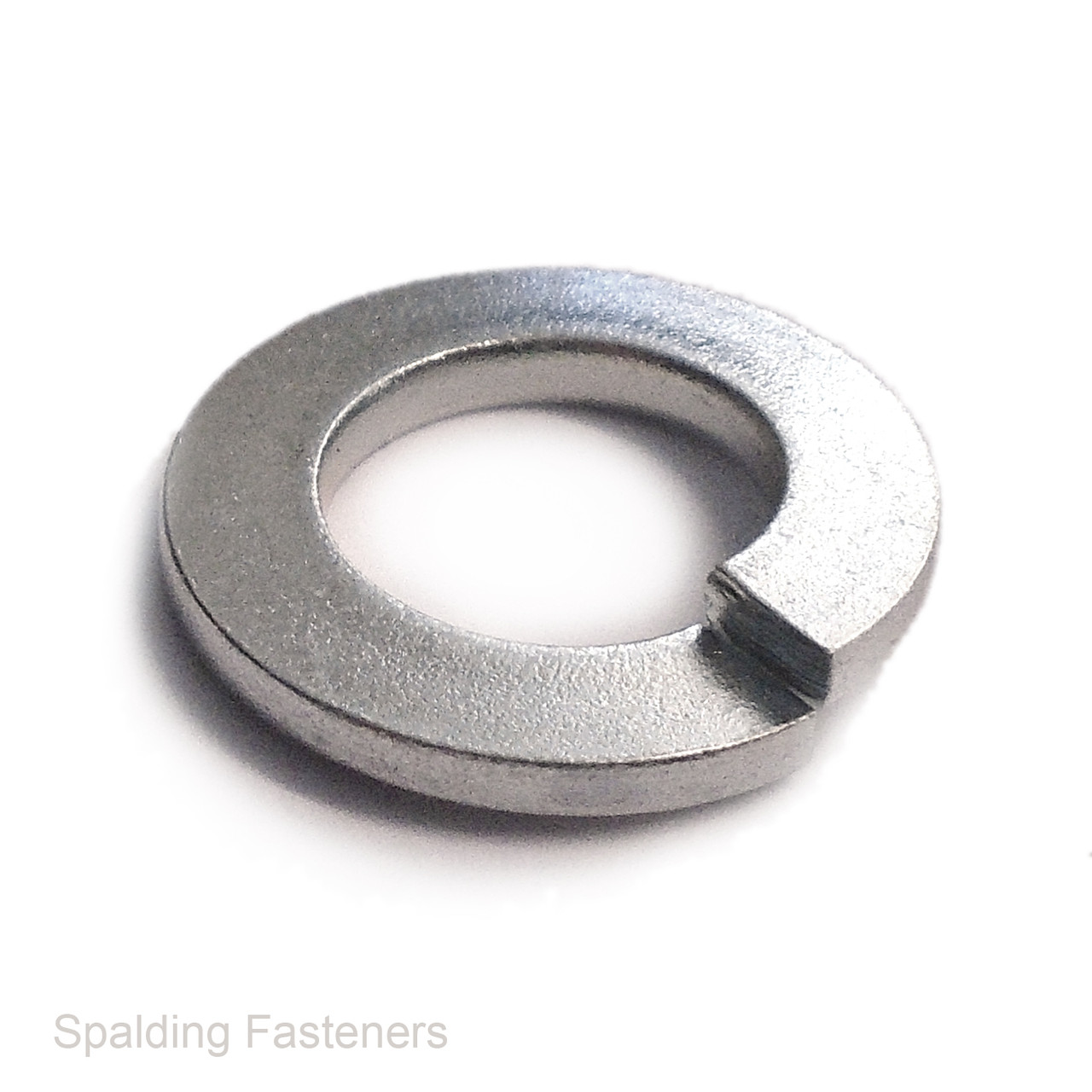

- Spring washer type: rectangular section.
- Sizes included: 3/16", 1/4", 5/16", 3/8" and 1/2".
- Total quantity: 700 washers.
Contents
| Nominal Size | T3 Light Flat Washers | Spring Washers | Total |
|---|---|---|---|
| 3/16" | 115 | 125 | 240 |
| 1/4" | 100 | 100 | 200 |
| 5/16" | 75 | 75 | 150 |
| 3/8" | 50 | 40 | 90 |
| 1/2" | 10 | 10 | 20 |
| Total | 350 | 350 | 700 |
Choosing the Correct Size
Select the nominal washer size to match the fastener diameter. These washers can be used with compatible imperial screws and bolts, including UNC, UNF and BSF threads.
Rectangular section describes the cross-section of the spring washer material, not its overall shape. Check the available bearing surface and required washer thickness when selecting a replacement.
Packaging Options
- Boxed set: divided plastic storage box with clip-down lid.
- Refill pack: supplied without a storage box.
Browse additional washers and nuts, or see our imperial shakeproof and spring washer assortment.
