Product Description

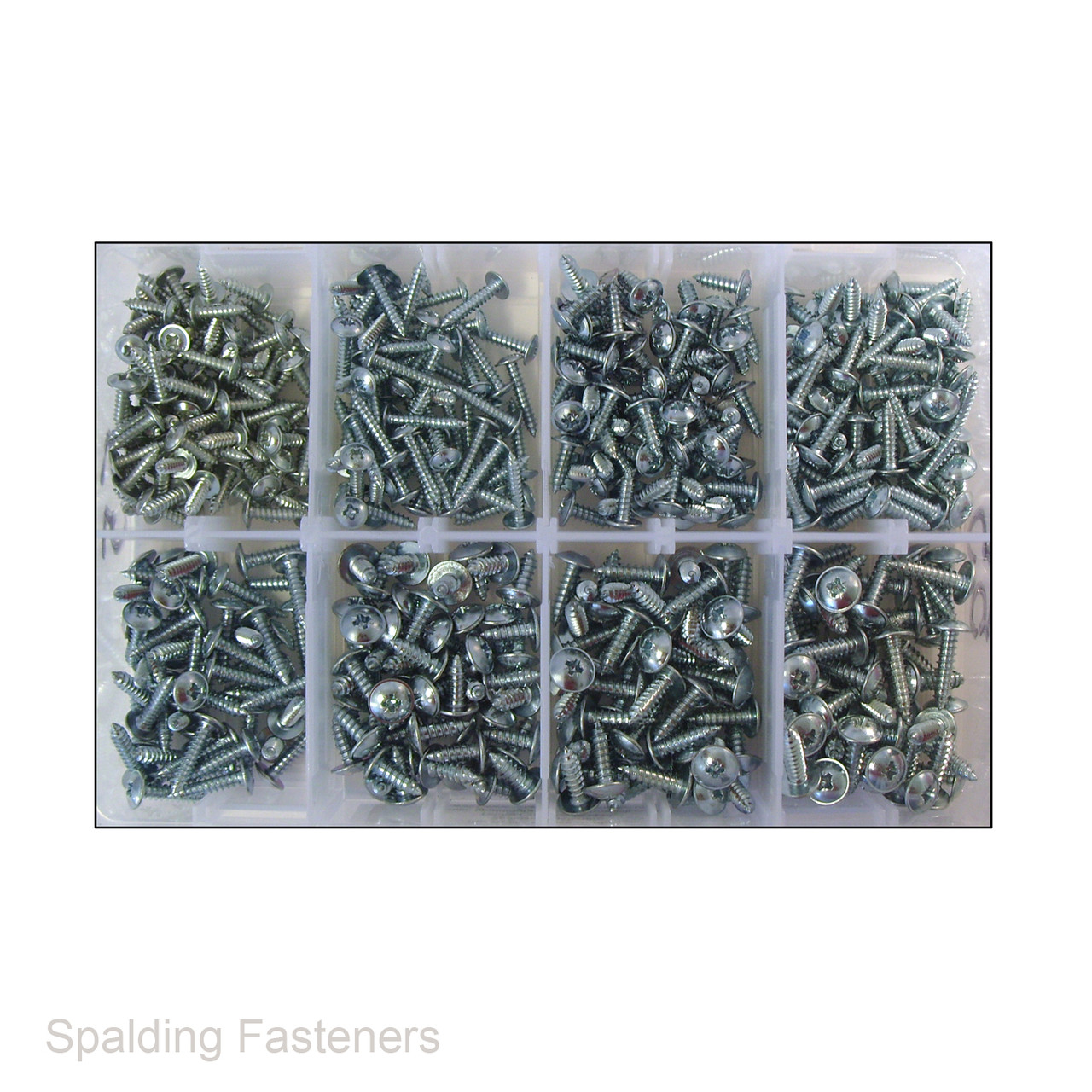

498 Assorted Zinc Plated Pozi Flange Self Tapping Screws
A 498-piece assortment of zinc plated steel self tapping screws with Pozi drives and large flange heads. Includes eight size combinations across No.6, No.8 and No.10 gauges, with lengths from 13mm to 19mm.
Product Specifications
- Material: Steel.
- Finish: Zinc plated.
- Head style: Large flange with an integral fixed washer.
- Drive: Pozi.
- Thread type: Self tapping.
- Screw gauges: No.6, No.8 and No.10.
- Lengths included: 13mm, 16mm and 19mm, depending on gauge.
- Number of size combinations: Eight.
- Total quantity: 498 screws.
Assortment Contents
| Screw Gauge | Nominal Diameter | Length | Quantity |
|---|---|---|---|
| No.6 | 3.5mm | 13mm | 100 |
| No.6 | 3.5mm | 19mm | 66 |
| No.8 | 4.2mm | 13mm | 66 |
| No.8 | 4.2mm | 16mm | 66 |
| No.8 | 4.2mm | 19mm | 50 |
| No.10 | 4.8mm | 13mm | 50 |
| No.10 | 4.8mm | 16mm | 50 |
| No.10 | 4.8mm | 19mm | 50 |
| Total | 498 | ||
Nominal diameters refer to the screw thread, not the flange. Length is measured from beneath the head to the tip.
Packaging Options

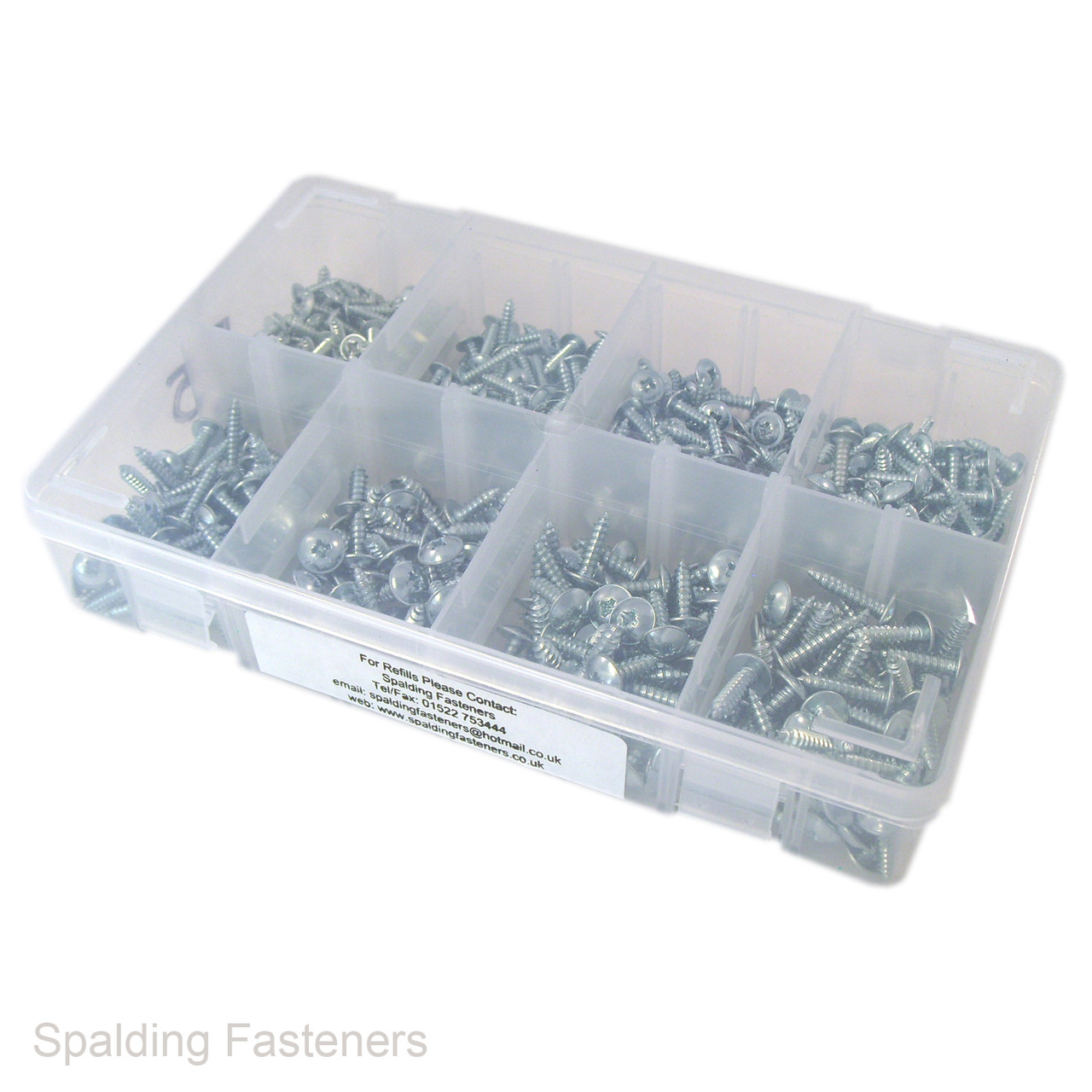

- Boxed assortment: Supplied in a plastic storage box with dividers and a clip-down lid.
- Refill pack: Supplied without a storage box.
Fitting Information
Choose a screw size and length suitable for the material and joint. Prepare an appropriate pilot hole and use a correctly fitting Pozi bit. Tighten until the flange seats against the surface, avoiding excessive torque that could strip the formed thread.
