Product Description

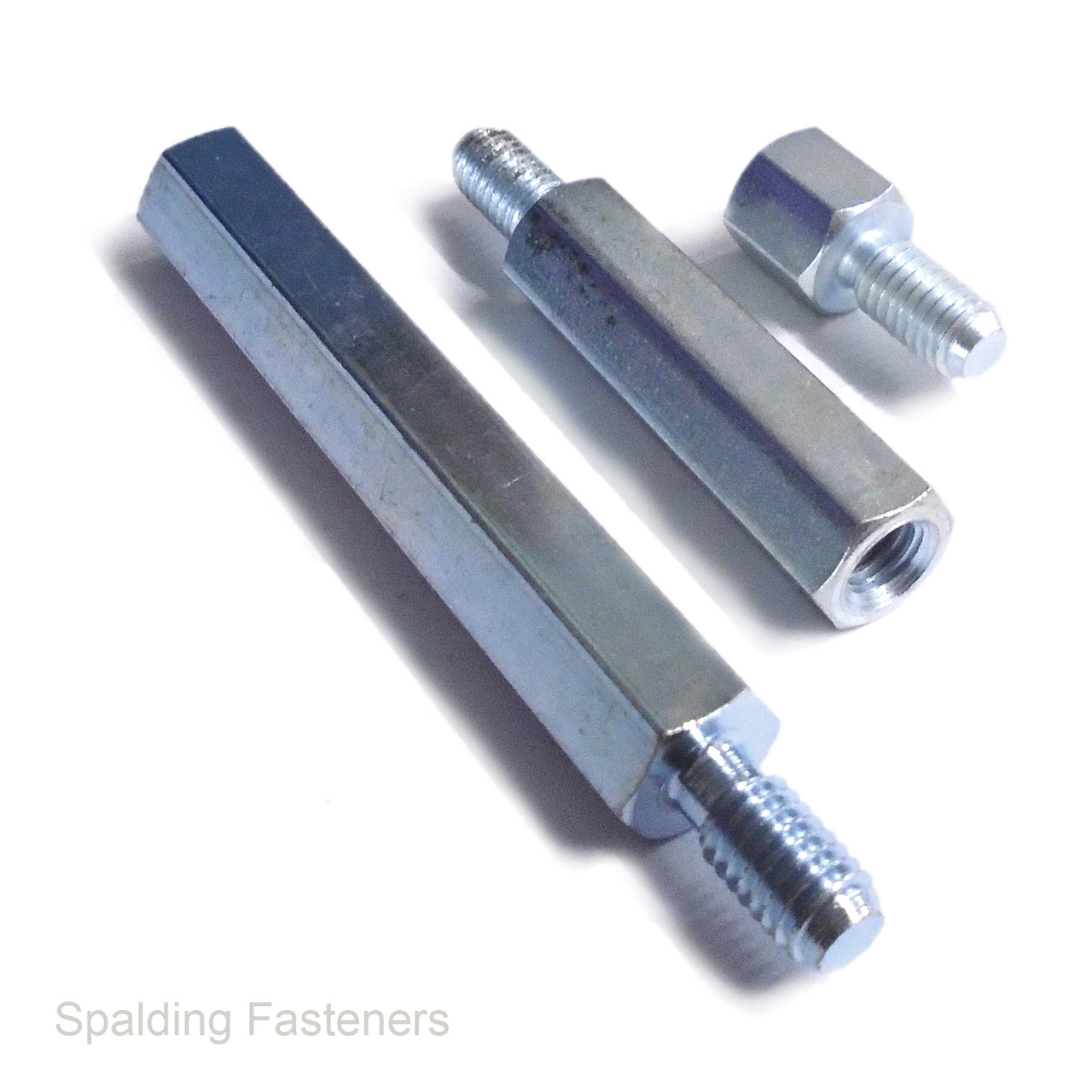

M4 Male Female Zinc Plated Steel Standoffs
M4 threaded standoffs with an internal female thread at one end and an external male thread at the other. Manufactured from free-cutting steel with a zinc plated finish, these spacers provide separation between mounted components.
Specifications
- Material: Free-cutting steel
- Finish: Zinc plated
- Thread size: M4
- Thread pitch: 0.7mm metric coarse
- Configuration: Male / female
Available Sizes
| Thread Size | Listed Length |
|---|---|
| M4 | 5mm |
| M4 | 8mm |
| M4 | 10mm |
| M4 | 12mm |
| M4 | 15mm |
| M4 | 20mm |
| M4 | 25mm |
| M4 | 30mm |
| M4 | 35mm |
| M4 | 40mm |
| M4 | 45mm |
| M4 | 50mm |
| M4 | 60mm |
Fitting
Use with matching M4 x 0.7mm threaded components. Check screw engagement before tightening to prevent the mating screw bottoming out inside the female thread.
Ordering
Select your required length and pack size from the available options.
Related Products
Browse our M2.5 standoffs, M3 standoffs, nuts and washers.
| A | B | C |
| M4 (4mm) | 30mm | 7mm |
| M4 (4mm) | 25mm | 7mm |
| M4 (4mm) | 20mm | 7mm |
| M4 (4mm) | 15mm | 7mm |
| M4 (4mm) | 12mm | 7mm |
| M4 (4mm) | 10mm | 7mm |
| M4 (4mm) | 8mm | 7mm |
| M4 (4mm) | 5mm | 7mm |
| M4 (4mm) | 60mm | 7mm |
| M4 (4mm) | 50mm | 7mm |
| M4 (4mm) | 45mm | 7mm |
| M4 (4mm) | 40mm | 7mm |
| M4 (4mm) | 35mm | * |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
